PYROPLUG® Shell drill crown insulation

PYROPLUG® Shell drill crown insulation

Type FBA-D100
|
Item no. 7202624
|
EAN 4012196142811
Show all variants
Item no. / Type
Dimension L
Açıklık için min.
Açıklık için maks.

Smallest selling unit: 1 piece

piece

Description

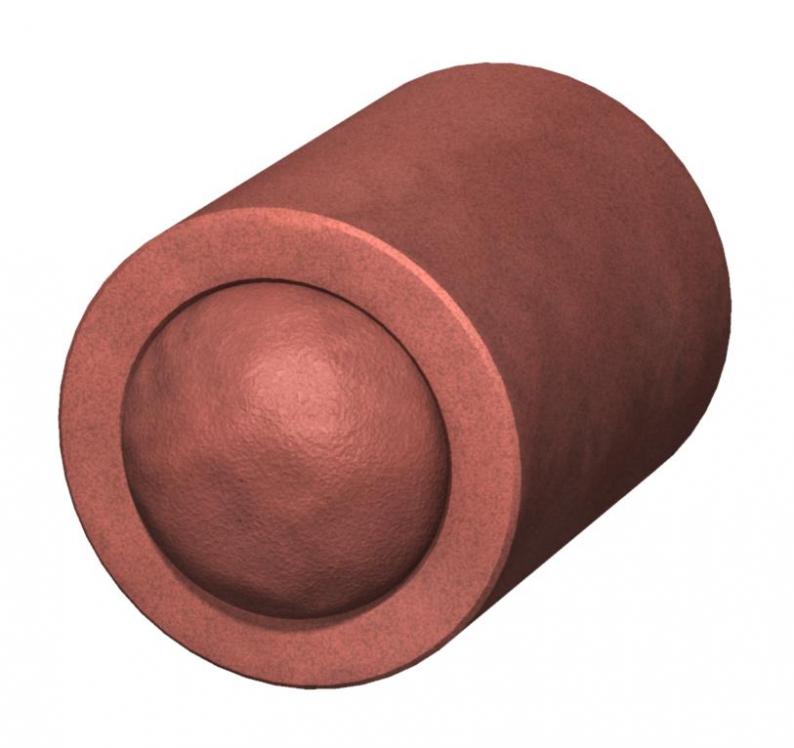

Pipe shell for cable insulation consisting of a one-part, hard pipe sleeve and two soft plugs with a 500 mm diameter. Protect the pipe sleeves and plugs against water in order to guarantee safe foaming in case of fire. Application in interior areas.
  • MPA Stuttgart
  • FBA-D drilling crown insulation
  • Fire resistance class S30
  • Fire resistance class S90

Technical data

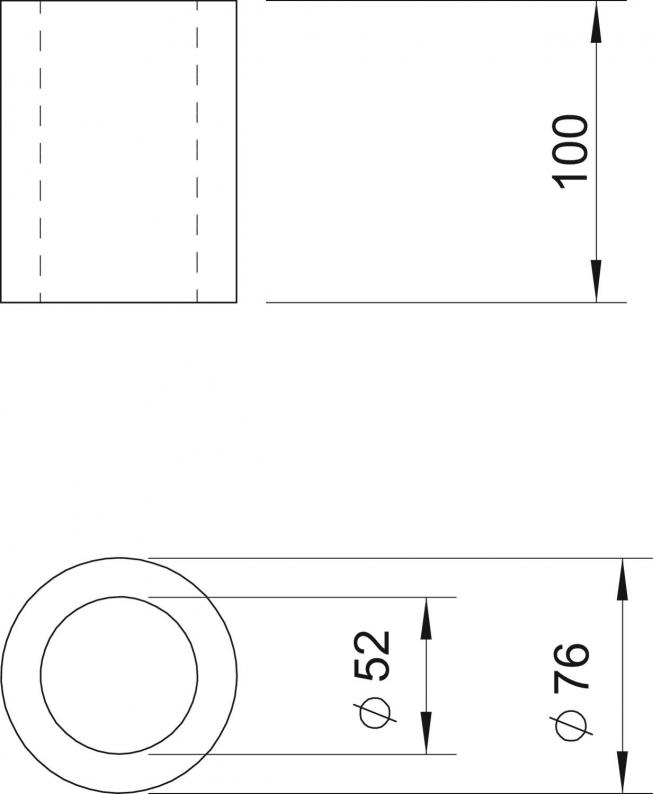

Dimensions

Length100 mm
Width78 mm
Dimension L100 mm

Technical data

Diameter76 mm
Accessories requiredyes
Fire protection versionBox body
ShapeRound
Açıklık için min.78 mm
Açıklık için maks.100 mm
BoyutØ78x100mm
MaterialPermanently elastic, closed-pore foam
ColourRed

Accessories

System accessories

Item no. 7202322

PYROPLUG® screed filler
Type
FBA-SP

Smallest selling unit: 1 piece

piece

Item no. 7202613

Empty mini pipe shell
Type
FBA-DR100

Smallest selling unit: 1 piece

piece

Item no. 7202283

Calcium silicate plate
Type
KSI-P1

Smallest selling unit: 1 piece

piece

Downloads

0 selected

Data sheet (2)
Catalogues & Flyers (2)
Certificates (2)
Instructions and Aid (2)
Product images (2)
Tender specifications (1)

Variants

Dimension L
FBA-D100
Item no.
7202624
Dimension L
100
Açıklık için min.
78
Açıklık için maks.
100
FBA-D150
Item no.
7202628
Dimension L
150
Açıklık için min.
78
Açıklık için maks.
100
