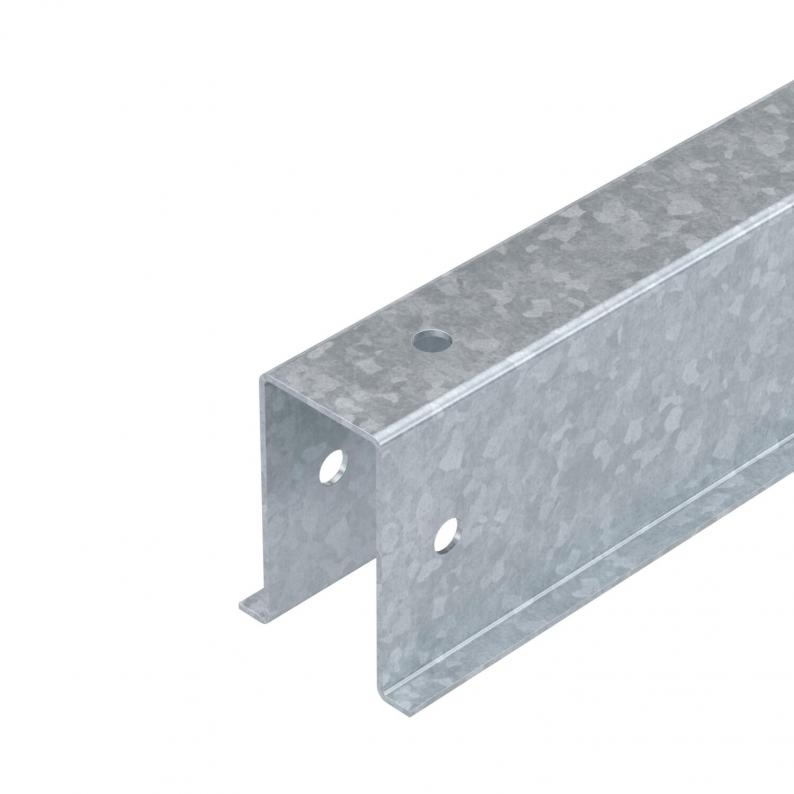

Ramming pile, free-standing system

Ramming pile, free-standing system

Type RP 1800 FT
|
Item no. 5900106
|
EAN 4012197394141
Show all variants
Item no. / Type
Length
DELIVERY TIME ON REQUEST

Smallest selling unit: 1 piece

piece

Description

Ramming pile as a bracket for pre-mounted supports to mount free-standing photovoltaic systems. Mounting in the earth through ramming.
  • CO₂ footprint (PCF)

Technical data

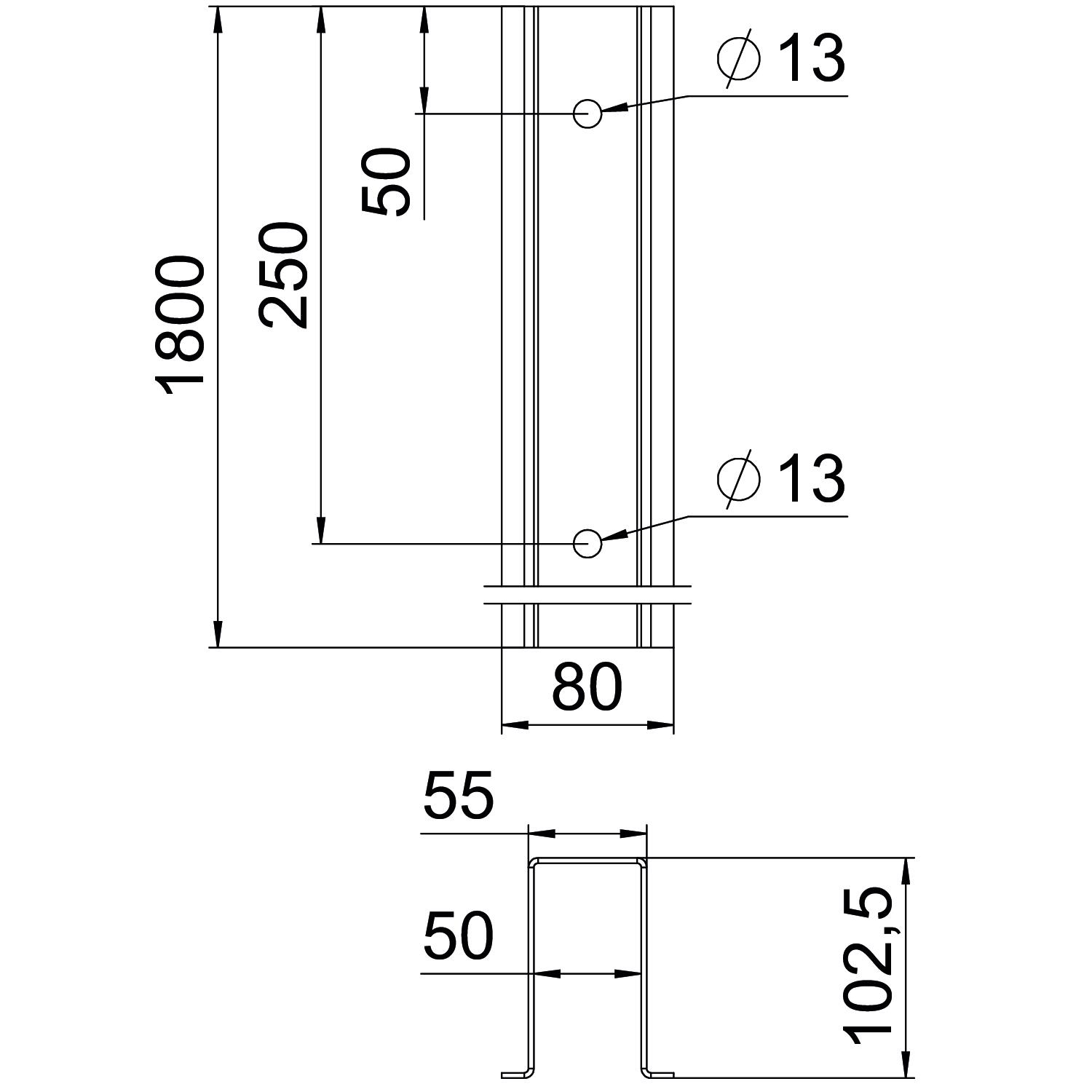

Dimensions

Length1800 mm
Width50 mm
Height102,5 mm

Technical data

SurfaceHot-dip galvanised
MaterialSteel
ColourÇinko grisi
Cable duct, integratedno
Cable duct optionalno
Section modulus Sx16950 mm³
Section modulus Sy11000 mm³
CO2 ayak izi (GWP) beşikten kapıya19,7251 kg CO2e / 1 Adet

Accessories

System accessories
Mounting accessories
Type
VT 10S FT

Smallest selling unit: 1 piece

piece

Type
VT 10M FT

Smallest selling unit: 1 piece

piece

Type
VT 10L FT

Smallest selling unit: 1 piece

piece

Downloads

0 selected

Data sheet (1)
Catalogues & Flyers (1)
Instructions and Aid (1)
Product images (2)
3D data downloads (1)
Tender specifications (1)

Variants

Length
RP 1800 FT
Item no.
5900106
Length
1800
RP 2300 FT
Item no.
5900110
Length
2300
