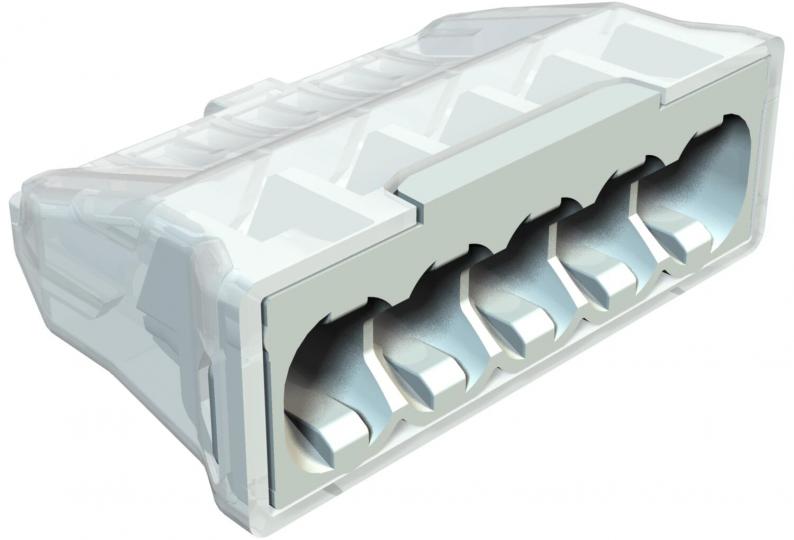

Screwless terminal, 5-pole

Type 61 525 LGR

Item no. 2054507

EAN 4012195825319

Data sheet (PDF)

REACH Declaration of conformity (PDF)

RoHS Declaration of conformity (PDF)

Declaration of conformity (PDF)

Show all variants

Item no. / Type

2054507 / 61 525 LGR

Anma gerilimi

450 V

Anma kesiti min.

0,5 mm²

Anma kesiti maks.

2,5 mm²

Bağlantı yeri sayısı

Colour

Light grey; RAL 7035

Smallest selling unit: 100 piece

piece

Description

Screwless terminal to connect single-strand cables.
Nominal cross-section:
5 x 0.5 mm² to 2.5 mm² single-wire cable

5 x 1.5 mm² to 2.5 mm² rigid, multi-wire cable
Rated voltage 450 V.
Rated current 24 A.
Stripping length: 8–9 mm.
Inspection opening: phase tester and testing pin (max. Ø 2 mm).

Technical data

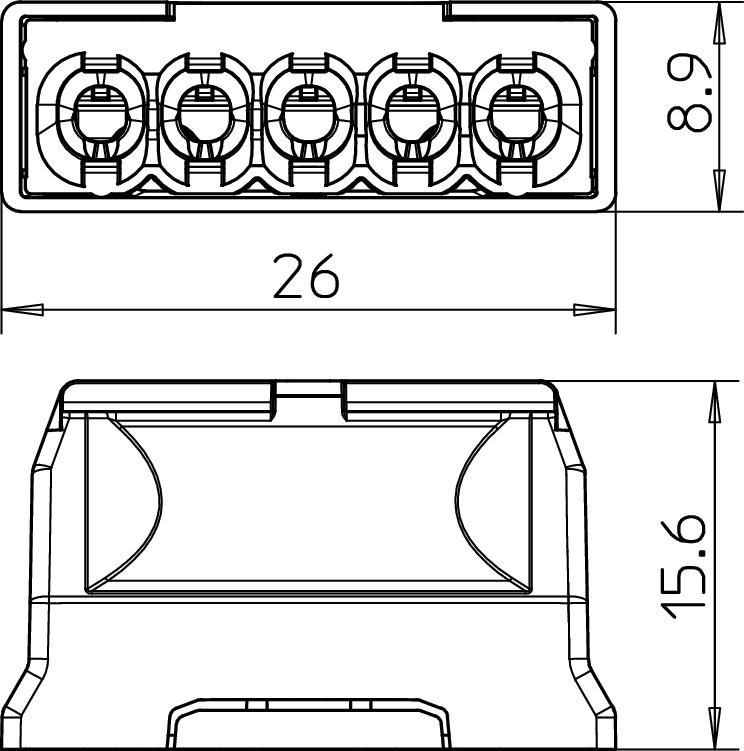

Dimensions

Length	26 mm
Width	15,6 mm
Height	8,9 mm

Technical data

Kutup sayısı	5
Nominal current	24 A
Anma gerilimi	450 V
Suitable for solid conductors	hayır
Suitable for flexible conductors	hayır
Suitable for multi-wire conductors	evet
With actuating levers	hayır
Connectable conductor cross-section, single-wire, min.	0,5 mm²
Connectable conductor cross-section, single-wire, max.	2,5 mm²
Connectable conductor cross-section, multi-wire, min.	1,5 mm²
Connectable conductor cross-section, multi-wire, max.	2,5 mm²
Anma kesiti min.	0,5 mm²
Anma kesiti maks.	2,5 mm²
Kesit	5 x 0.5 mm² to 2.5 mm² single-wire cable 5 x 1.5 mm² to 2.5 mm² rigid, multi-wire cable mm²
Bağlantı yeri sayısı	5
Kullanılabilir sıcaklık aralığı min.	-5 °C
Kullanılabilir sıcaklık aralığı maks.	90 °C
Aleve dayanıklı	Acc. to VDE 0471/DIN 695 Part 2-1, test temperature 850°C
Boyut	5x2,5mm²
Material	Polyamide
Colour	Light grey; RAL 7035
