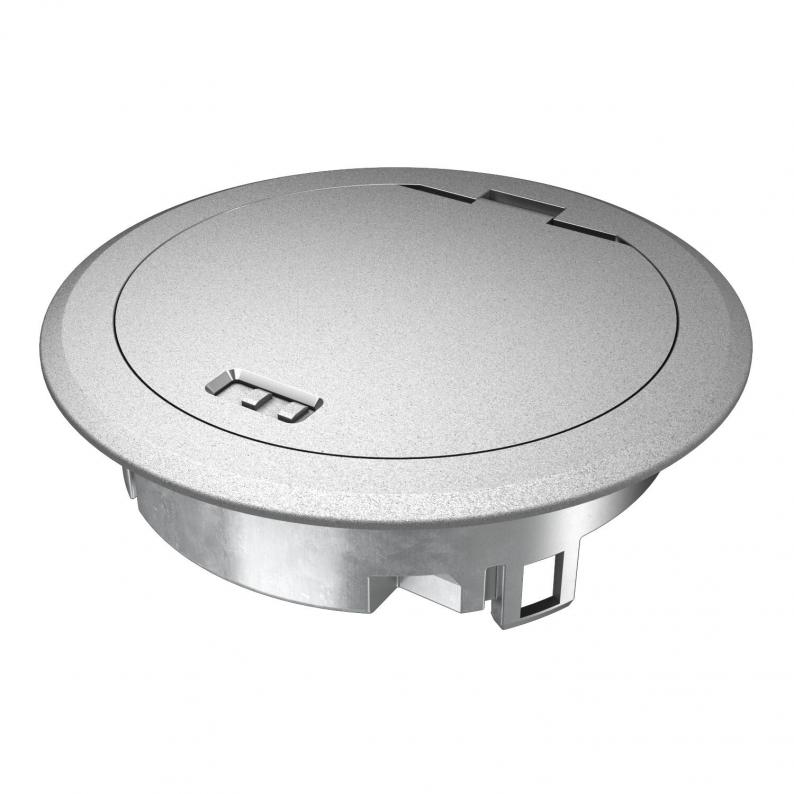

Service outlet with hinged cover and locking slider, GES R2, chrome
Type GES R2 Cr
|Item no. 7408856
|EAN 4012196459315
Item no. / Type
Zemin bakımı
Smallest selling unit: 1 piece
1piece
piece
Description
Service outlet with hinged cover and locking slider for GES R2 floor socket for direct installation in the MT R2 installation socket.
When closed, the floor socket can be wet-cleaned.
When closed, the floor socket can be wet-cleaned.
Technical data
Technical data
| Suitable for underfloor ducts | no |
|---|---|
| Suitable for cavity floor installation | yes |
| Suitable for raised floor installation | yes |
| Zemin bakımı | Wet |
| Suitable for wet care | yes |
| Installation depth | 85 mm |

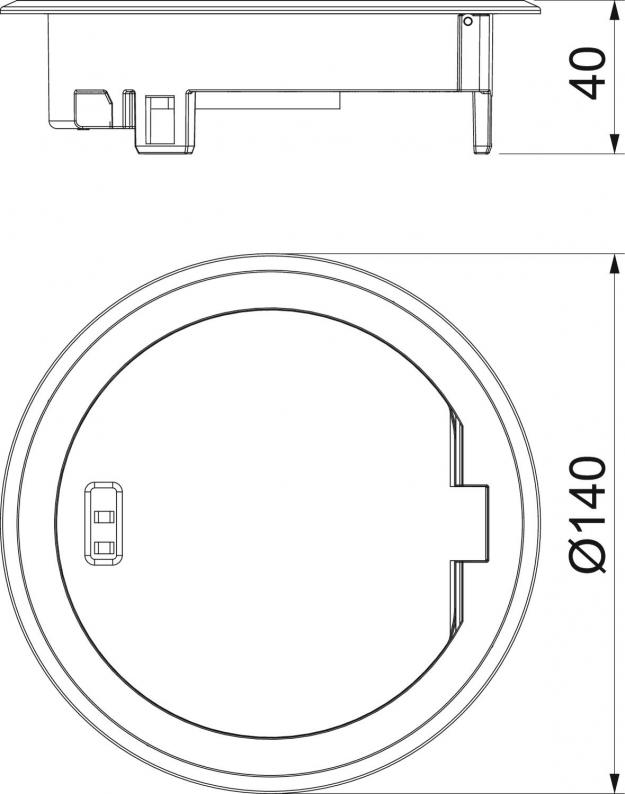

| External diameter | 140 mm |
| With floor covering recess | no |
| Floor covering protection frame | yes |
| Cable outlet version | Swivellable cord outlet |
| Protection rating IK code | IK10 |
| Approvals | VDE |
| Standard | EN 50085-2-2 |
| Protection rating (IP) when used | IP20 |
| Protection rating (IP) when unused | IP66 |
| Vertical load, small area | to 3,000 N |
| Vertical load, large area | to 15,000 N |
| Version for | Round |
| Opening mechanism | Locking slider |
| Surface | Chrome-plated |
| Material | Die-cast zinc |
Environmental Data
| Packaging made completely from recycled cardboard. | yes |
|---|---|
| Packaging without plastic | yes |
| CO2 ayak izi (GWP) beşikten kapıya | 0,5214 kg CO2e / 1 Piece |
|---|
Accessories
System accessories
Article
Type
Item no.
Amount
MT R2 V
7408832
Smallest selling unit: 1 piece
1piece
piece
Item no. 7408806
Mounting plate for data technology, type CType
MP R2 2C
Smallest selling unit: 1 piece
1piece
piece
Item no. 7408832
Installation socket, double, protective contact socketsType
MT R2 V
Smallest selling unit: 1 piece
1piece
piece
Downloads
0 selected
Data sheet (1)
Catalogues & Flyers (3)
Declarations (4)
Certificates (1)
Instructions and Aid (2)
Product images (3)
3D data downloads (2)
Tender specifications (1)
Variants
Type
Zemin bakımı
Protection rating (IP) when unused
Vertical load, small area
Opening mechanism
Material
Colour
Item no.
GES R2 KP
ıslak
IP66
to 3,000 N
Locking slider
Die-cast zinc
Jet black; RAL 9005
7408847
GES R2 Ni-O
ıslak
IP66
to 3,000 N
Locking slider
Die-cast zinc
7408849
GES R2 Ni
ıslak
IP66
to 3,000 N
Locking slider
Die-cast zinc
7408850
GES R2 CuZn
ıslak
IP66
to 3,000 N
Locking slider
Die-cast zinc
7408852
GES R2 Cu
ıslak
IP66
to 3,000 N
Locking slider
Die-cast zinc
7408854
GES R2 Cr
ıslak
IP66
to 3,000 N
Locking slider
Die-cast zinc
7408856
