Service pole, type ISSOGHS70140
Type ISSOGHS70140EL
|Item no. 6289096
|EAN 4012196258758
Item no. / Type
Length
Colour
Smallest selling unit: 1 piece
1piece
piece
Description

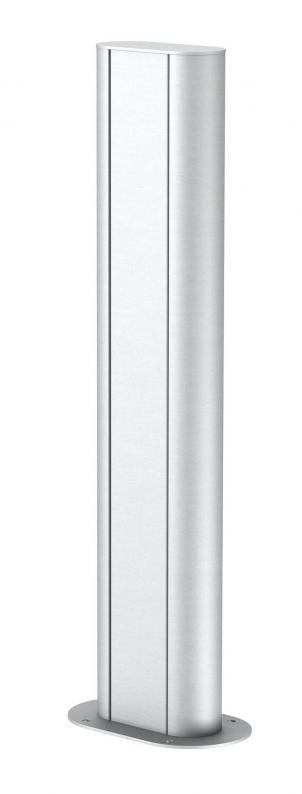

ISS aluminium service pole with a 76.5 mm system opening.
Set consists of:
1 single-compartment pole with stand
Total length: 675 mm
1 aluminium cover
Length: 675 mm
The design of this ISS service pole is based on the oval-shaped aluminium profile of ISSOG70140 floor-ceiling poles. The 76.5 mm system opening is suitable for directly accepting mounting box accessories of series 71GD... for the equipment with switching and connection devices.
Set consists of:
1 single-compartment pole with stand
Total length: 675 mm
1 aluminium cover
Length: 675 mm
The design of this ISS service pole is based on the oval-shaped aluminium profile of ISSOG70140 floor-ceiling poles. The 76.5 mm system opening is suitable for directly accepting mounting box accessories of series 71GD... for the equipment with switching and connection devices.
Technical data

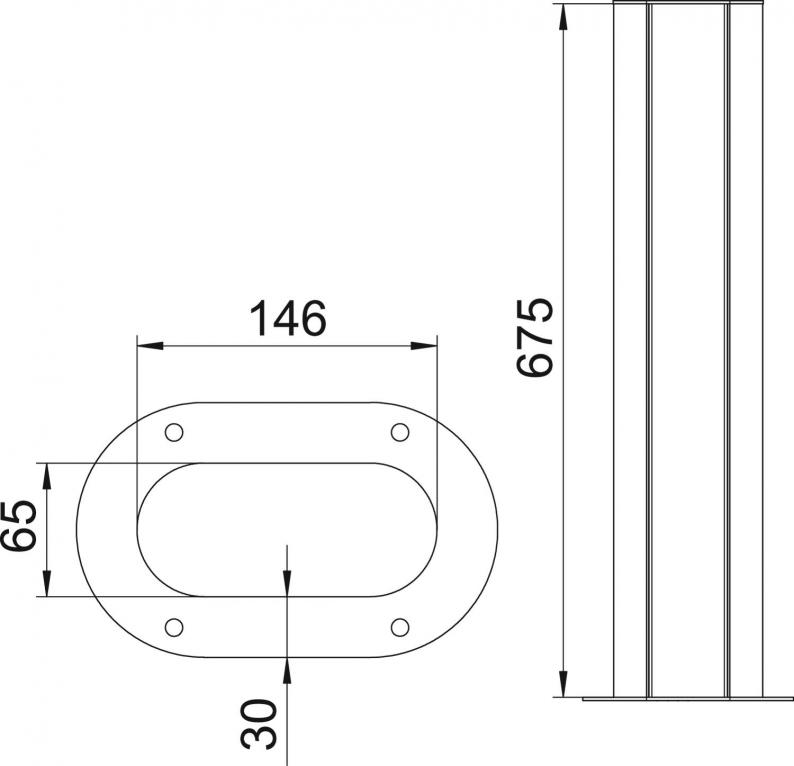

Dimensions
| Length | 675 mm |
|---|---|
| Width | 146 mm |
| Height | 65 mm |
| Kolon yüksekliği min. | 675 mm |
Technical data
| Yol sayısı | 1 St. |
|---|---|
| Halojen İçermez | yes |
| Kolon biçimi | Oval |
| Ayarlanabilir | no |
| Takılabilir kapak sayısı | 1 |
| Portatif | no |
| Tavana montaj | no |
| Zemine montaj | yes |
| Kablo girişi | Bottom |
| Pre-wired | no |
| Continuous profile | yes |
| Version for | Single-sided |
| Fastening type | Stand |
| Kanal genişliği | 76,5 mm |
| Boyut | 675x146x65 |
| Surface | Anodised |
| Material | Aluminium |
| Colour | aluminium |
Environmental Data
| CO2 ayak izi (GWP) beşikten kapıya | 22,7877 kg CO2e / 1 Piece |
|---|
Accessories
System accessories
Article
Type
Item no.
Amount
Item no. 6288610
Accessory mounting box 71GD6, singleType
71GD6
Smallest selling unit: 5 piece
5piece
piece
Item no. 6288608
Accessory mounting box 71GD7-2, doubleType
71GD7-2
Smallest selling unit: 2 piece
2piece
piece
Item no. 6288704
Protective conductor connection bracketType
8AWR
Smallest selling unit: 10 piece
10piece
piece
