Slot nut for industrial pole
Type NS8 ST
|Item no. 6290499
|EAN 4012196191550
Item no. / Type
6290499 / NS8 ST
Length
23 mm
Width
13,3 mm
Smallest selling unit: 10 piece
10piece
piece
Description

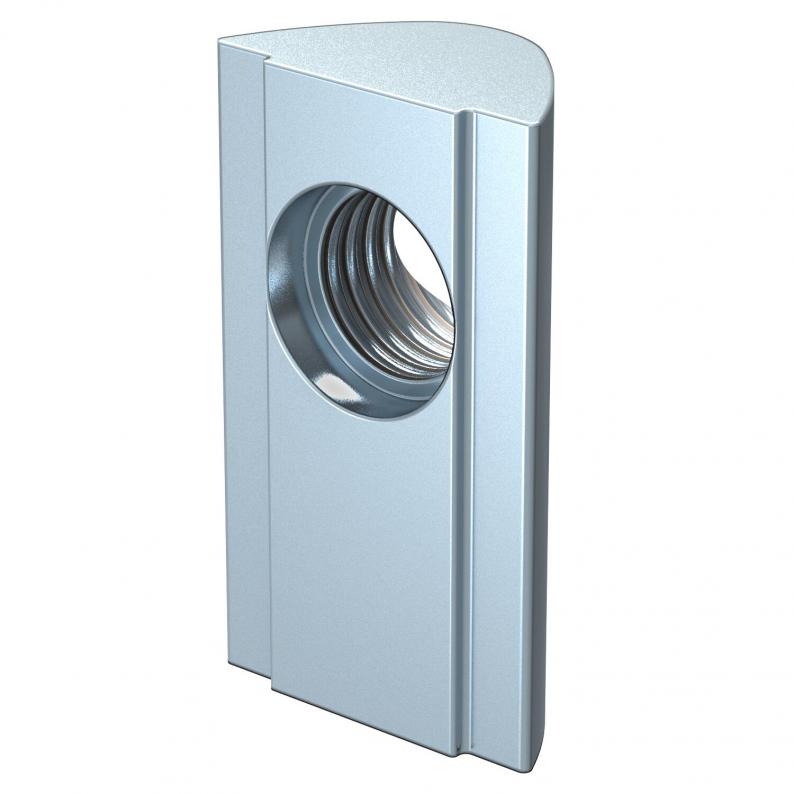

Sliding block with M8 thread for mounting extensions and accessories to the ISS industrial service pole profile. Through a pressure piece on the bottom side, the sliding block can hold itself by being swivelled into the groove. Automatic anti-rotation lock through profiled upper side.
Technical data

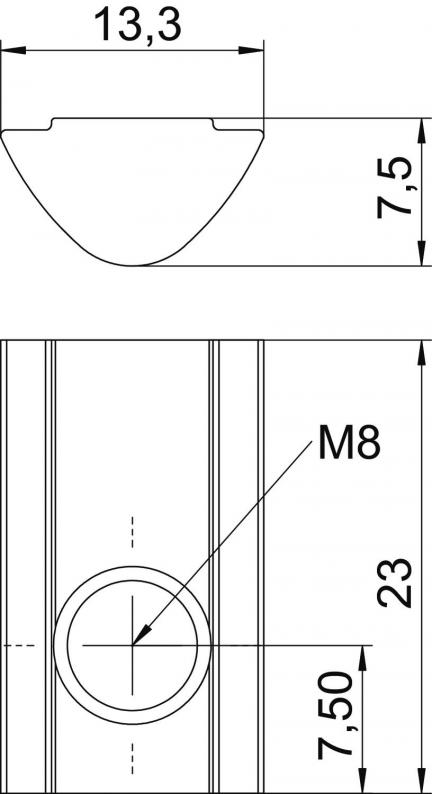

Dimensions
| Length | 23 mm |
|---|---|
| Width | 13,3 mm |
| Height | 7,5 mm |
Technical data
| Halojen İçermez | yes |
|---|---|
| Koruma sınıfı | IP30 |
| Protection rating IK code | IK10 |
| Type of accessory | Sliding block |
| Kullanılabilir sıcaklık aralığı min. | -25 °C |
| Kullanılabilir sıcaklık aralığı maks. | 60 °C |
| Boyut | 23x13,3x7,5 |
| Surface | galvanised |
| Material | Steel |
| Colour | zinc |
Environmental Data
| CO2 ayak izi (GWP) beşikten kapıya | 0,033 kg CO2e / 1 Piece |
|---|
