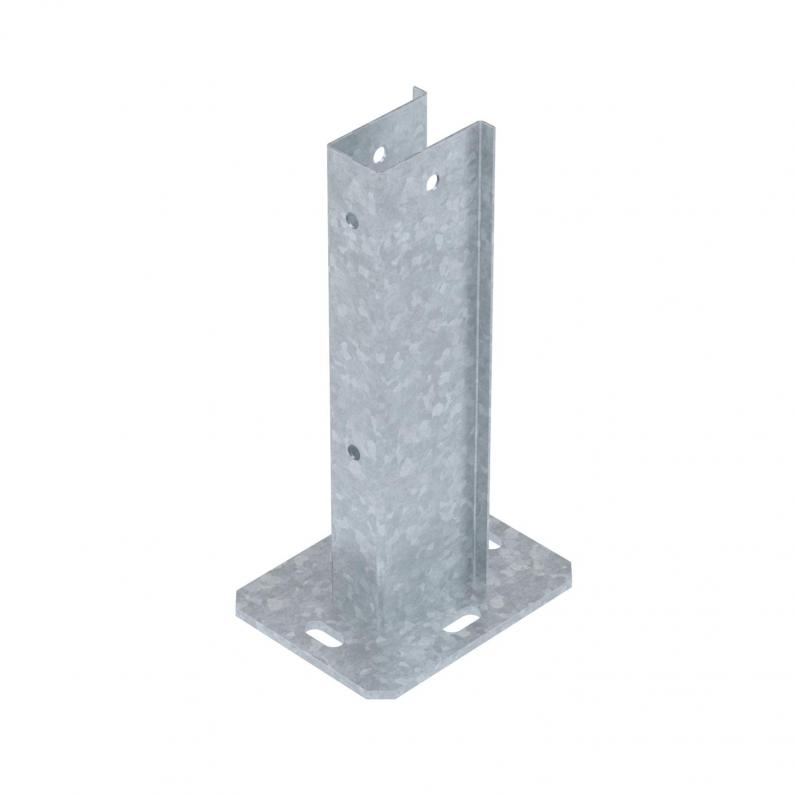

Stand, free-standing system

Stand, free-standing system

Type SF 400 FT
|
Item no. 5900900
|
EAN 4012197395780
Show all variants
Item no. / Type
5900900 / SF 400 FT
DELIVERY TIME ON REQUEST

Smallest selling unit: 1 piece

piece

Description

Stand as a bracket for pre-mounted supports to mount free-standing PV systems. Mounting on concrete foundations with M16 bolt ties. Fastening material must be ordered separately.
  • CO₂ footprint (PCF)

Technical data

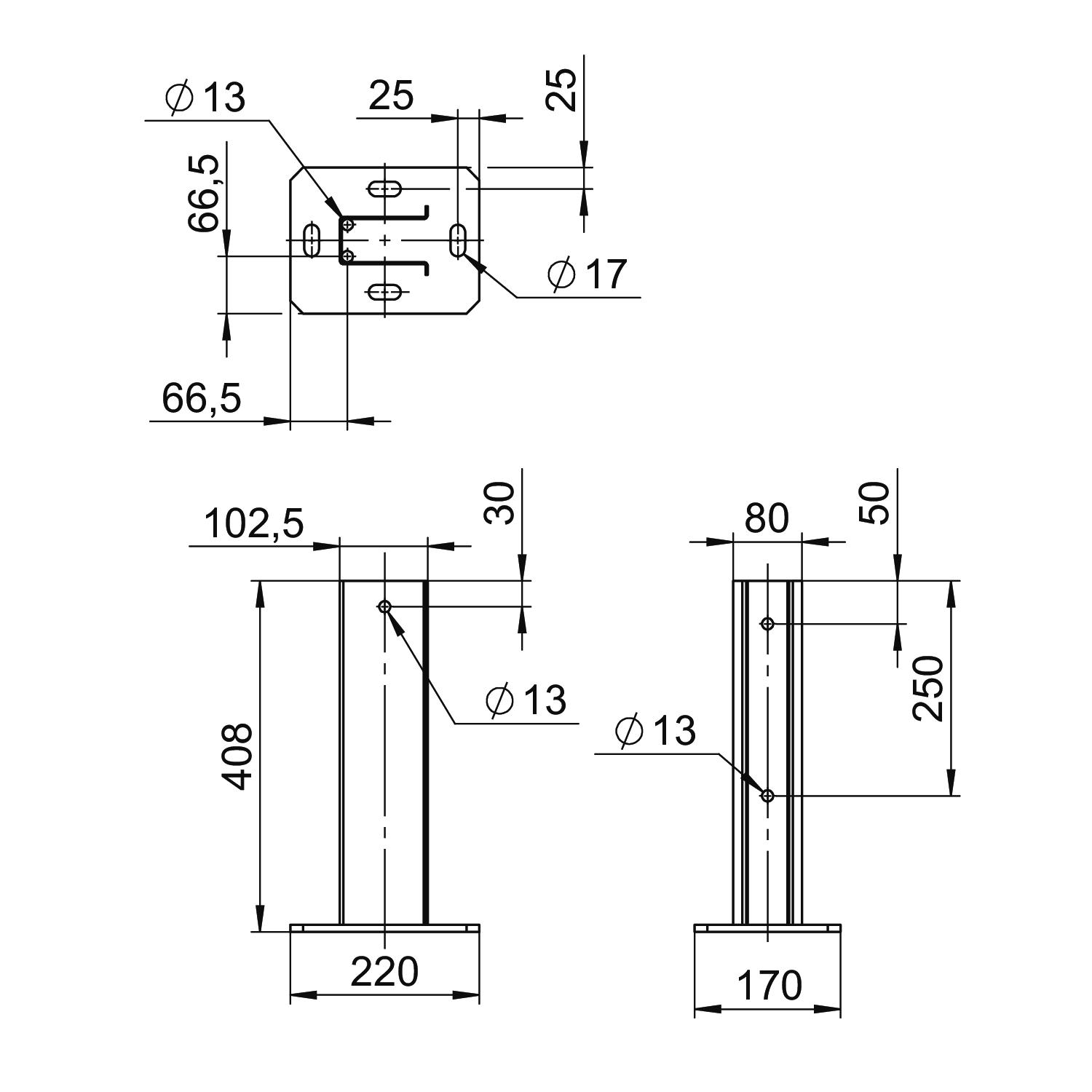

Dimensions

Width170 mm
Height408 mm

Technical data

Depth220 mm
Boyut220x170x408
SurfaceHot-dip galvanised
MaterialSteel
ColourÇinko grisi
CO2 ayak izi (GWP) beşikten kapıya10,2701 kg CO2e / 1 Adet

Accessories

System accessories
Mounting accessories
Type
VT 10S FT

Smallest selling unit: 1 piece

piece

Type
VT 10M FT

Smallest selling unit: 1 piece

piece

Type
VT 10L FT

Smallest selling unit: 1 piece

piece

Downloads

0 selected

Data sheet (1)
Catalogues & Flyers (1)
Instructions and Aid (1)
Product images (2)
3D data downloads (1)
Tender specifications (1)

Variants

SF 400 FT
Item no.
5900900
