T piece 110 FT
Type SLT 1120 R3 FT
|Item no. 6225350
|EAN 4012196444526
Item no. / Type
Width
Yan parça kalınlığı
Smallest selling unit: 1 piece
1piece
piece
Description

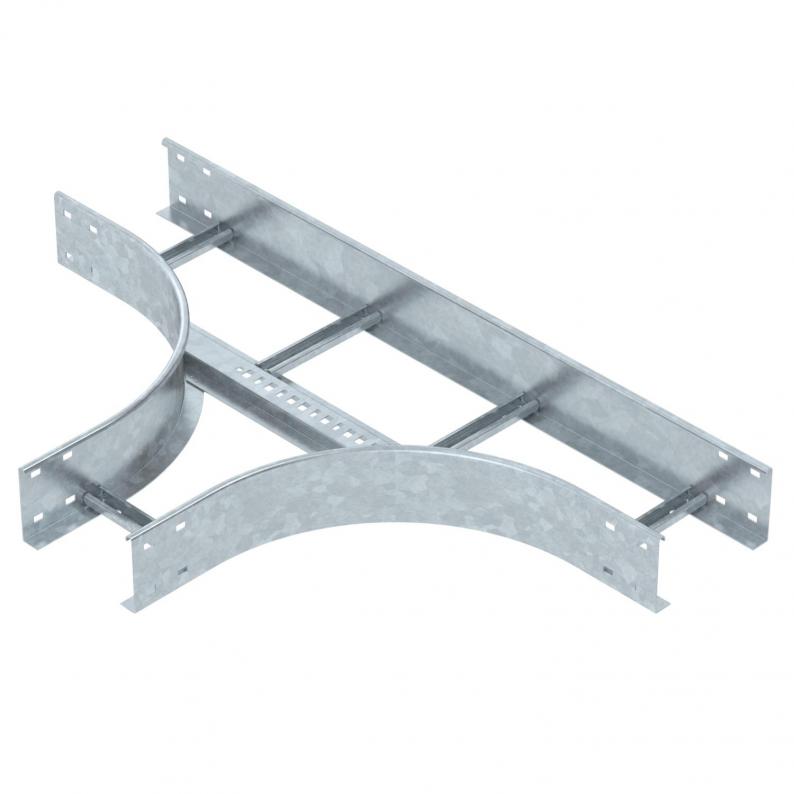

T piece, horizontal, with welded rung for all cable ladder types of 110 mm side height.
Connectors should be ordered separately and in the appropriate quantity.
Technical data
Dimensions
| Width | 200 mm |
|---|---|
| Height | 110 mm |
| Dimension B | 200 mm |
| Dimension R | 300 mm |
Technical data
| Maintain electrical functions | no |
|---|---|
| Connector version | Without connectors |
| Wide-span version | no |
| Paslanmaz çelik, mordanlı | no |
| Version of the rungs | Profile unperforated |
| Side rail version | Flat profile |
| Type | Exit symmetrical |
| Yan parça kalınlığı | 2 mm |
| Boyut | 110x200 |
| Surface | Hot-dip galvanised |
| Material | Steel |
| Colour | zinc |
Environmental Data
| CO2 ayak izi (GWP) beşikten kapıya | 19,0502 kg CO2e / 1 Piece |
|---|
Accessories
Mounting accessories
Article
Type
Item no.
Amount
Downloads
0 selected
Data sheet (1)
Catalogues & Flyers (3)
Declarations (4)
Instructions and Aid (2)
Product images (2)
3D data downloads (1)
Tender specifications (1)
Variants
Type
Width
Yan parça kalınlığı
Item no.
SLT 1120 R3 FT
200
2
6225350
SLT 1130 R3 FT
300
2
6225352
SLT 1140 R3 FT
400
2
6225354
SLT 1150 R3 FT
500
2
6225358
SLT 1160 R3 FT
600
2
6225360
Width
SLT 1120 R3 FT
Item no.
6225350
Width
200
Yan parça kalınlığı
2
SLT 1130 R3 FT
Item no.
6225352
Width
300
Yan parça kalınlığı
2
SLT 1140 R3 FT
Item no.
6225354
Width
400
Yan parça kalınlığı
2
SLT 1150 R3 FT
Item no.
6225358
Width
500
Yan parça kalınlığı
2
SLT 1160 R3 FT
Item no.
6225360
Width
600
Yan parça kalınlığı
2
