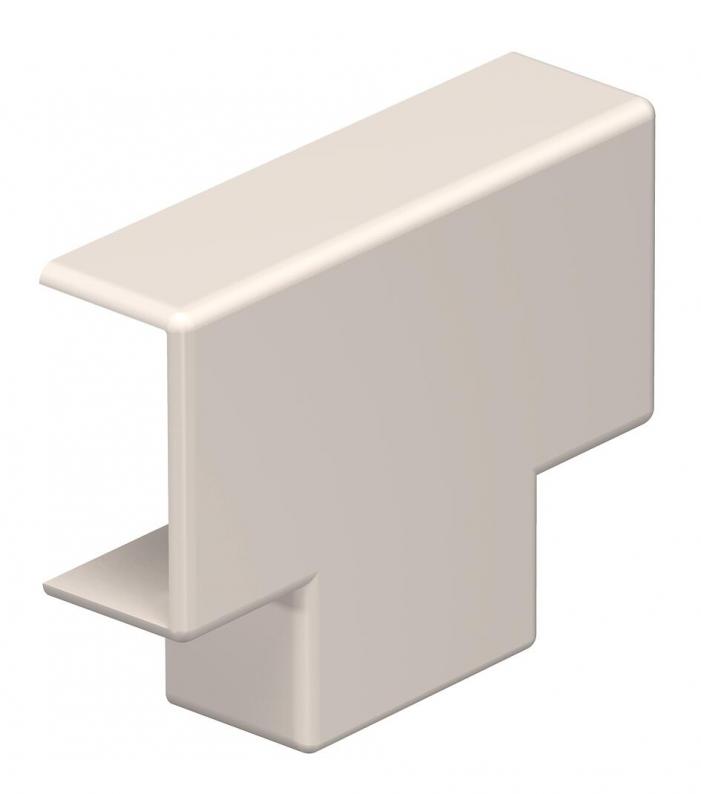

T piece cover, for trunking type WDK 10020

T piece cover, for trunking type WDK 10020

Type WDK HT10020CW
|
Item no. 6152309
|
EAN 4012196098712
Show all variants
Item no. / Type
Dimension H
Dimension b
Dimension a
Colour

Smallest selling unit: 4 piece

piece

Description

T piece hood for changing the direction of the WDK trunking.
  • Verband der Elektrotechnik, Elektronik, Informationstechnik e.V., Germany
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • UKCA declaration of conformity
  • CO₂ footprint (PCF)
  • Packaging without plastic

Technical data

Dimensions

Length45 mm
Width22 mm
Height10 mm

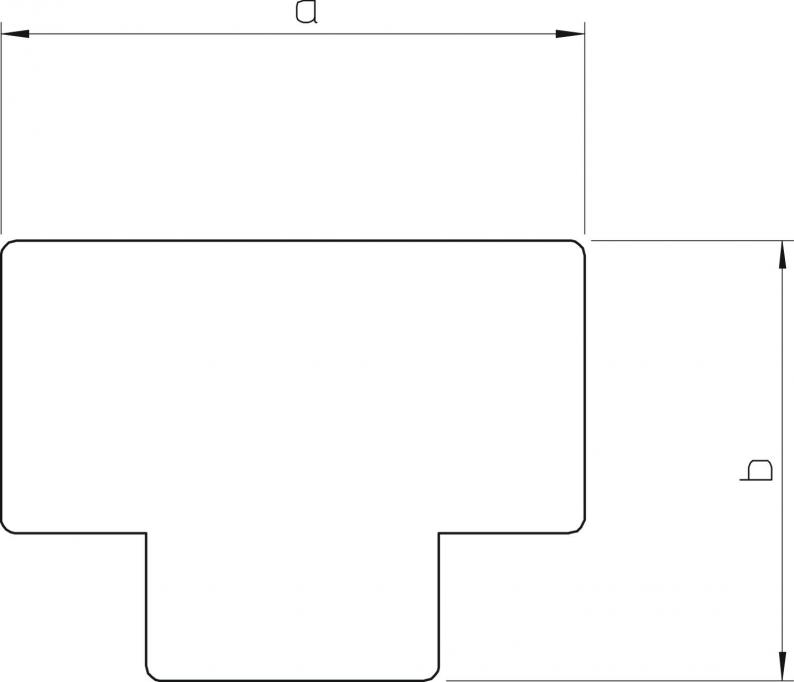

Dimension H20 mm
Dimension b34 mm
Dimension a45 mm

Technical data

Maintain electrical functionsno
for duct dimension10 x 20
Halogen-freeno
Protective filmno
Protection ratingIP30
Protection rating IK codeIK04
Version forHood fitting
Fastening typeLockable
Trunking depth10 mm
Permitted temperature range, min.-5 °C
Permitted temperature range, max.60 °C
Dimension10x20mm
MaterialPolyvinylchloride
ColourCream; RAL 9001
Antibacterial treatmentno

Environmental Data

0,0158 kg CO2e / 1 PieceCO2 Footprint (GWP) Cradle-to-Gate
Packaging without plasticyes
CO2 Footprint (GWP) Cradle-to-Gate0,0158 kg CO2e / 1 Piece

Downloads

0 selected

Data sheet (2)
Catalogues & Flyers (1)
Declarations (3)
Instructions and Aid (2)
Product images (2)
3D data downloads (1)
Tender specifications (1)

Variants

Colour
WDK HT10020CW
Item no.
6152309
Dimension H
20
Dimension b
34
Dimension a
45
Colour
Cream; RAL 9001

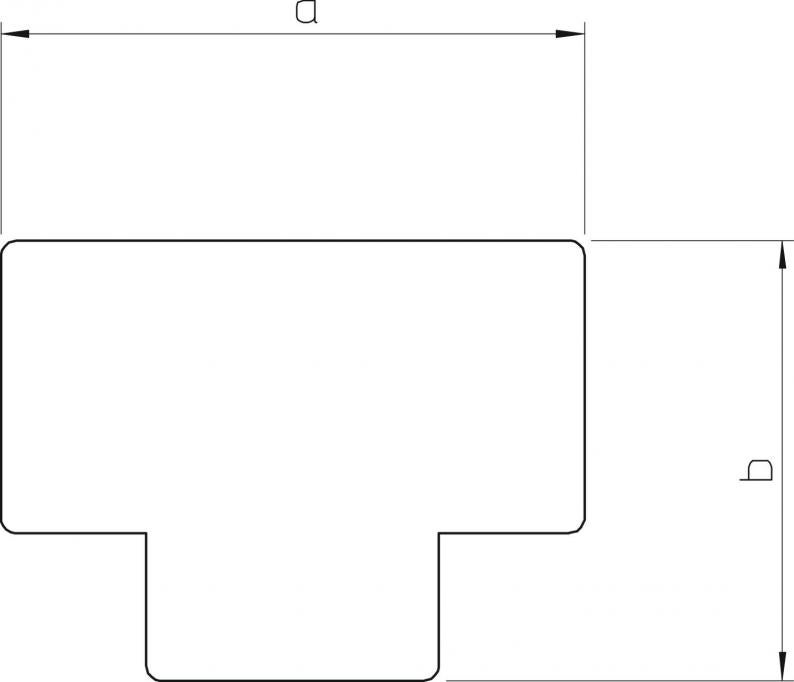

WDK HT10020RW
Item no.
6154115
Dimension H
20
Dimension b
34
Dimension a
45
Colour
Pure white; RAL 9010
