US 5 support A4

US 5 support A4

Type US 5 30 A4
|
Item no. 6341053
|
EAN 4012195020981
Show all variants
Item no. / Type
Length
Material thickness

Smallest selling unit: 1 piece

piece

Description

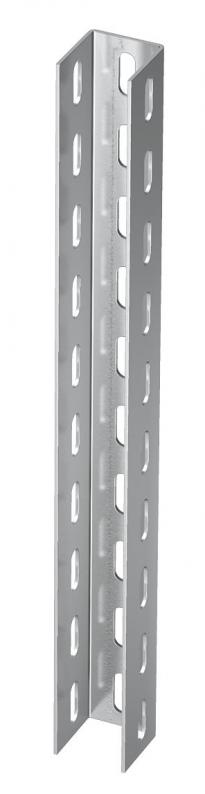

U support in fixed lengths. Dimensions 50 x 50 mm.

For bracket widths of 400 mm or more, or if the bracket is mounted at the end of a suspended support, we recommend the use of the spacer, type DSK 45.

  • U profil destek
  • CO₂ footprint (PCF)

Technical data

Dimensions

Length300 mm
Width50 mm
Height50 mm

Technical data

Maintain electrical functionsno
Material thickness2,5 mm
Statik değer A2,74 cm²
Statik değer Iy8,32 cm⁴
Statik değer Iz12,53 cm⁴
Statik değer Wy2,61 cm³
Statik değer Wz5,01 cm³
Profile shapeU profile
Delik türü3 sides perforated
Breakableno
With toothingno
Ölçü50 x 50 x 2,5
Version forSingle profile
Boyut50x50x300
SurfaceBright, treated
MaterialStainless steel 1.4571
Colourstainless steel

Environmental Data

CO2 ayak izi (GWP) beşikten kapıya4,0876 kg CO2e / 1 Piece

Accessories

Mounting accessories

Item no. 6338462

Protective cap
Type
US 5 KS OR

Smallest selling unit: 20 piece

piece

Type
FRS 10x25 A4

Smallest selling unit: 50 piece

piece

Item no. 6416462

Spacer A4
Type
DSK 45 A4

Smallest selling unit: 10 piece

piece

Downloads

0 selected

Data sheet (1)
Catalogues & Flyers (3)
Declarations (3)
Instructions and Aid (2)
Product images (2)
Tender specifications (1)

Variants

Length
US 5 30 A4
Item no.
6341053
Length
300
Material thickness
2,5
US 5 40 A4
Item no.
6341055
Length
400
Material thickness
2,5
US 5 50 A4
Item no.
6341057
Length
500
Material thickness
2,5
US 5 60 A4
Item no.
6341059
Length
600
Material thickness
2,5
US 5 80 A4
Item no.
6341063
Length
800
Material thickness
2,5
US 5 90 A4
Item no.
6341065
Length
900
Material thickness
2,5
US 5 300 A4
Item no.
6341073
Length
3000
Material thickness
2,5
