US 7 support A4

US 7 support A4

Type US 7 K 100 A4
|
Item no. 6338872
|
EAN 4012195913238
Show all variants
Item no. / Type
Length

Smallest selling unit: 1 piece

piece

Description

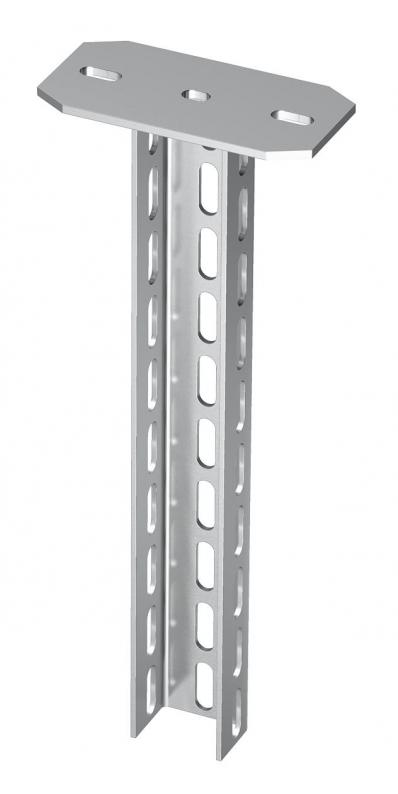

Suspended support (U profile) with welded head plate.

For fastening to horizontal concrete ceilings and steel girders. For bracket widths of 400 mm or more, or if the bracket is mounted at the end of a suspended support, we recommend the use of the spacer, type DSK 61.

  • Verband der Elektrotechnik, Elektronik, Informationstechnik e.V., Germany
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • UKCA declaration of conformity
  • U support
  • Environmental Product Declaration (EPD)
  • CO₂ footprint (PCF)

Technical data

Dimensions

Length1000 mm
Width70 mm
Height50 mm

Technical data

Maintain electrical functionsno
Material thickness4 mm
Version forU profile
Maximum tensile load11 kN
Bracket length 2008,3 kN
Bracket length 4005 kN
Bracket length 6003,5 kN
Dimension70x50x1000
SurfaceBright, treated
MaterialStainless steel 1.4571
Colourstainless steel
Load diagram, U support, type US 7 K VA

Bending of the end of the suspended support at permitted bracket load

Permitted bracket load in kN without man load

Bracket length in mm

Load curves with support lengths in mm

Environmental Data

28,9394 kg CO2e / 1 PieceCO2 Footprint (GWP) Cradle-to-Gate
EPD-verifiedyes
Expiry date EPD10.07.2029
Declaration number EPD EPD-KTO-17.0
Unit base EPD1 running metre + mounting system
EPD GWP (outside of the system limits)18.83 kg CO₂e
EPD GWP (disposal phase)1.97 kg CO₂e
EPD GWP (manufacturing phase)81.32 kg CO₂e
EPD standard / LCA standard (norms)DIN EN ISO 14025,EN 15804 + A2
CO2 Footprint (GWP) Cradle-to-Gate28,9394 kg CO2e / 1 Piece

Accessories

Mounting accessories

Item no. 6338497

Protective cap
Type
US 7 KS OR

Smallest selling unit: 20 piece

piece

Item no. 6416533

DSK 61 A4 spacer
Type
DSK 61 A4

Smallest selling unit: 10 piece

piece

Downloads

0 selected

Data sheet (1)
Catalogues & Flyers (3)
Declarations (5)
Instructions and Aid (2)
Product images (2)
Tender specifications (1)

Variants

Length
US 7 K 100 A4
Item no.
6338872
Length
1000
Colour
stainless steel
US 7 K 200 A4
Item no.
6338881
Length
2000
Colour
stainless steel
