Wide span cable ladder WKLG 110 FS
Type WKLG 1120 FS
|Item no. 6311008
|EAN 4012196883035
Item no. / Type
Length
Width
Maintain electrical functions
Yan parça kalınlığı
Smallest selling unit: 6 m
6m
m
Description

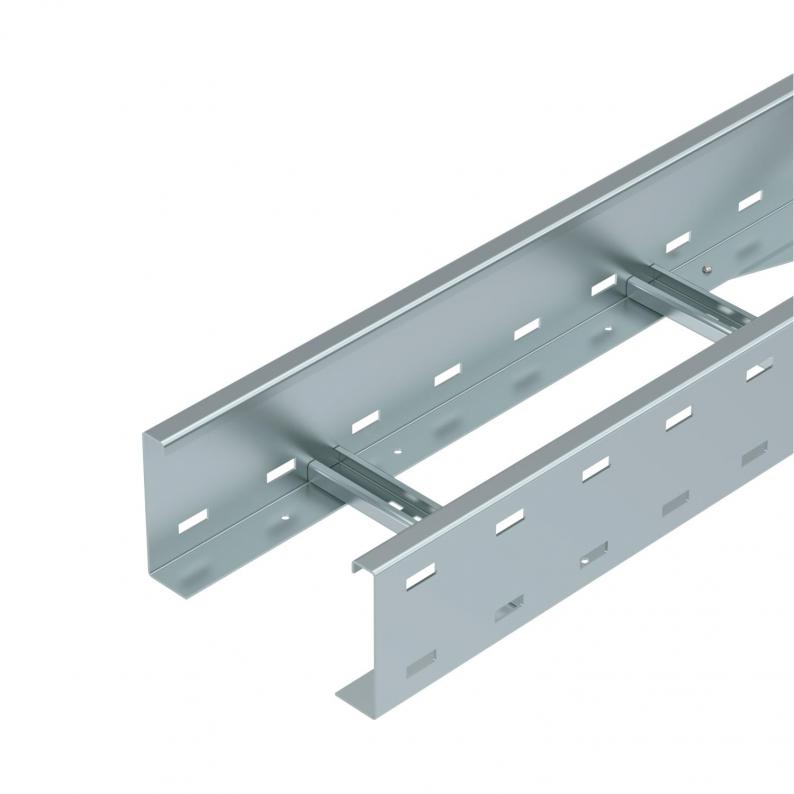

Wide span cable ladder with perforated side rails of side height of 110 mm. Fastening of cables with clamp clip, type 2056.
Magnetic shield insulation without cover 10 dB, with cover 15 dB.
Magnetic shield insulation without cover 10 dB, with cover 15 dB.
Straight connectors of type WRVL 110 should be ordered separately and in the appropriate quantity.
Technical data

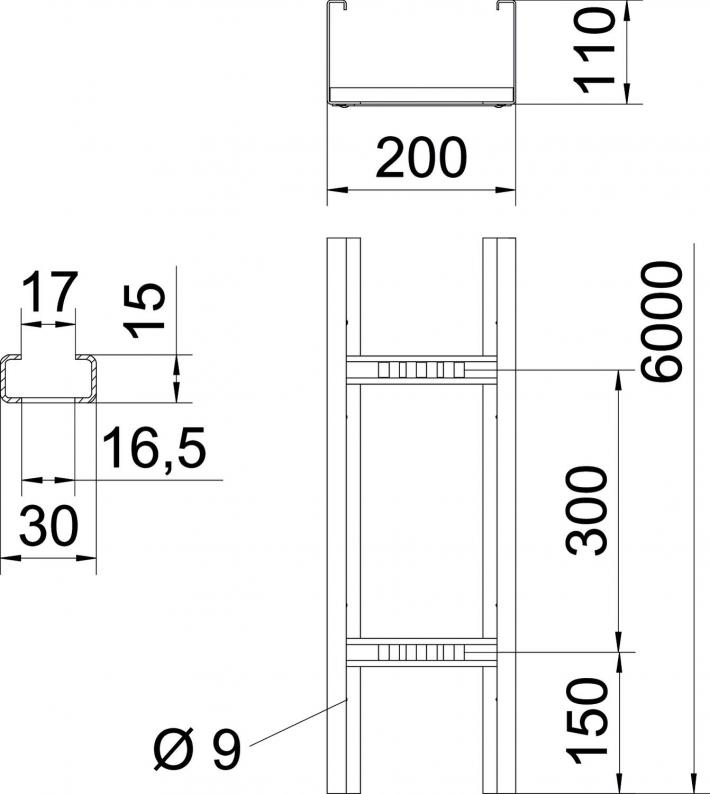

Dimensions
| Length | 6000 mm |
|---|---|
| Width | 200 mm |
| Height | 110 mm |
| Dimension L | 6000 mm |
| Dimension B | 200 mm |
| Rung slot dimension | 17,00 |
Technical data
| Maintain electrical functions | no |
|---|---|
| Yan delik | yes |
| Wide-span version | yes |
| Usable cross-section | 186 cm² |
| Paslanmaz çelik, mordanlı | no |
| Usable cross-section | 18600 mm² |
| Version of the rungs | Profile perforated |
| Side rail version | Profile (open) |
| Fastening of rung | Fully riveted |
| Ölçü | 110 x 200 |
| Yan parça kalınlığı | 2 mm |
| Boyut | 110x200x6000 |
| Surface | Strip galvanized |
| Material | Steel |
| Colour | zinc |
Loads
| Destek aralığı 3,0m | 2,5 kN/m |
|---|---|
| Destek aralığı 3,5m | 1,98 kN/m |
| Destek aralığı 4,0m | 1,6 kN/m |
| Destek aralığı 4,5m | 1,31 kN/m |
| Destek aralığı 5,0m | 1,1 kN/m |
| Destek aralığı 6,0m | 0,8 kN/m |
| Destek aralığı 7,0m | 0,4 kN/m |
Permitted cable tray/ladder load in kN/m without man load
Destekler arası mesafe, m
Müsaade edilen kN/m'de yan taşıyıcı profilde oluşan eğilme miktarı mm olarak
Test yönteminde yük şeması
mm olarak kablo kanalı/merdiveni genişliği ile yük eğrisi
Destek aralığına bağlı olarak yan taşıyıcı profilin eğilme miktarı eğrisi
Environmental Data
| EPD-verified | yes |
|---|---|
| Expiry date EPD | 10.07.2029 |
| Declaration number EPD | EPD-KTO-17.0 |
| Unit base EPD | 1 running metre + mounting system |
| EPD GWP (outside of the system limits) | 18.83 kg CO₂e |
| EPD GWP (disposal phase) | 1.97 kg CO₂e |
| EPD GWP (manufacturing phase) | 81.32 kg CO₂e |
| EPD standard / LCA standard (norms) | DIN EN ISO 14025,EN 15804 + A2 |
| CO2 ayak izi (GWP) beşikten kapıya | 13,5242 kg CO2e / 1 Meter |
|---|
