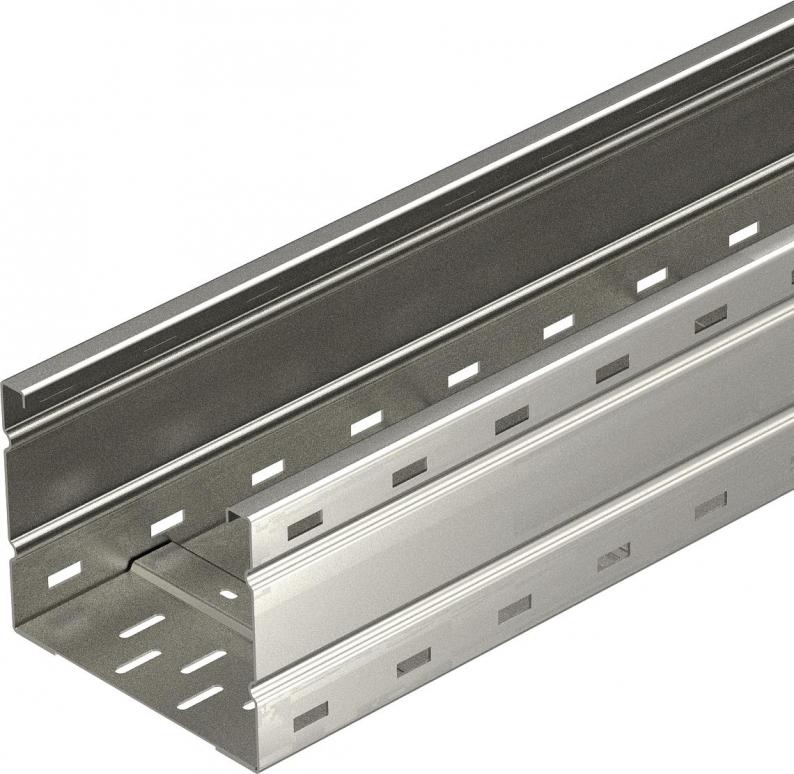

Wide span cable tray WKSG 160 A2
Type WKSG 162 A2
|Item no. 6098571
|EAN 4012195683582
Item no. / Type
Length
Width
Maintain electrical functions
Plate thickness
Smallest selling unit: 6 m
6m
m
Description
Wide span cable tray system, perforated, with a side height of 160 mm.
Magnetic shield insulation without cover 20 dB, with cover 50 dB.
Magnetic shield insulation without cover 20 dB, with cover 50 dB.
Straight connectors of type WRVL 160 should be ordered separately and in the appropriate quantity.
Technical data
Dimensions
| Length | 6000 mm |
|---|---|
| Width | 200 mm |
| Height | 160 mm |
| Dimension L | 6000 mm |
| Dimension B | 200 mm |
Technical data
| Maintain electrical functions | no |
|---|---|
| Yan delik | yes |
| Connector version | Without connectors |
| Wide-span version | yes |
| Usable cross-section | 302 cm² |
| Paslanmaz çelik, mordanlı | no |
| Plate thickness | 2 mm |
| Tabanda montaj deliği | yes |
| Usable cross-section | 30200 mm² |
| Ölçü | 160 X 200 |
| Boyut | 160x200x6000 |
| Surface | Bright, treated |
| Material | Stainless steel 1.4301 |
| Colour | stainless steel |
| Magnetic shield insulation with cover | 50 dB |
| Magnetic shield insulation without cover | 20 dB |
| Usable length | 6000 mm |
| Type of connector, cable support system | Screwed |
Loads
| Destek aralığı 3,0m | 2,9 kN/m |
|---|---|
| Destek aralığı 3,5m | 2,59 kN/m |
| Destek aralığı 4,0m | 2,3 kN/m |
| Destek aralığı 4,5m | 2,04 kN/m |
| Destek aralığı 5,0m | 1,8 kN/m |
| Destek aralığı 6,0m | 1,4 kN/m |
| Destek aralığı 7,0m | 1 kN/m |
| Destek aralığı 8,0m | 0,7 kN/m |
Permitted cable tray/ladder load in kN/m without man load
Destekler arası mesafe, m
Müsaade edilen kN/m'de yan taşıyıcı profilde oluşan eğilme miktarı mm olarak
Test yönteminde yük şeması
mm olarak kablo kanalı/merdiveni genişliği ile yük eğrisi
Destek aralığına bağlı olarak yan taşıyıcı profilin eğilme miktarı eğrisi
Environmental Data
| EPD-verified | yes |
|---|---|
| Expiry date EPD | 10.07.2029 |
| Declaration number EPD | EPD-KTO-17.0 |
| Unit base EPD | 1 running metre + mounting system |
| EPD GWP (outside of the system limits) | 18.83 kg CO₂e |
| EPD GWP (disposal phase) | 1.97 kg CO₂e |
| EPD GWP (manufacturing phase) | 81.32 kg CO₂e |
| EPD standard / LCA standard (norms) | DIN EN ISO 14025,EN 15804 + A2 |
| CO2 ayak izi (GWP) beşikten kapıya | 43,3156 kg CO2e / 1 Meter |
|---|
Accessories
System accessories
Article
Type
Item no.
Amount
Item no. 6227836
Straight and angle connector A2Type
WRWVK 160 A2
Smallest selling unit: 2 piece
2piece
piece
Downloads
0 selected
Data sheet (1)
Catalogues & Flyers (1)
Declarations (5)
Instructions and Aid (1)
Product images (3)
3D data downloads (1)
Tender specifications (1)
Variants
Type
Length
Width
Maintain electrical functions
Plate thickness
Item no.
WKSG 162 A2
6000
200
hayır
2
6098571
WKSG 163 A2
6000
300
hayır
2
6098573
WKSG 164 A2
6000
400
hayır
2
6098575
WKSG 165 A2
6000
500
no
2
6098577
WKSG 166 A2
6000
600
hayır
2
6098579
