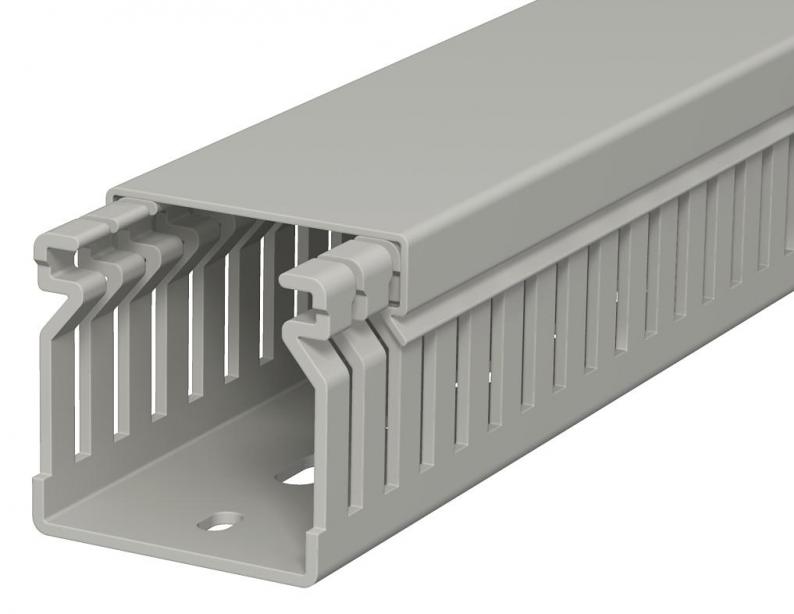

Wiring trunking, type LK4 40040

Wiring trunking, type LK4 40040

Type LK4 40040
|
Item no. 6178012
|
EAN 4012196000531
Show all variants
Item no. / Type
6178012 / LK4 40040
Length
2000 mm
Width
40 mm
Height
40 mm
Fastening type
Base perforation
Colour
Stone grey; RAL 7030

Smallest selling unit: 2 m

m

Description

Wiring duct, incl. cover and base perforation, for horizontal and vertical routing of electrical cables in the switchgear cabinet. Designed as a metric duct. The nominal dimension of the system size corresponds to the internal dimension of the duct. Retainers are broken out without tools. The flush-floor routing of cables is possible through predetermined break points. Tested to DIN EN 50085-2-3. Special lengths on request.
  • Underwriters Laboratories Inc., USA + CSA, Kanada
  • Alman Elektrik, Elektronik ve Bilgi Teknolojileri Birliği
  • Communautés Européennes, AB Yönetmelikleri uyarınca AB Uygunluk Beyanı
  • UKCA declaration of conformity
  • CO₂ footprint (PCF)
  • Packaging without plastic
  • Packaging made entirely from recycled cardboard

Technical data

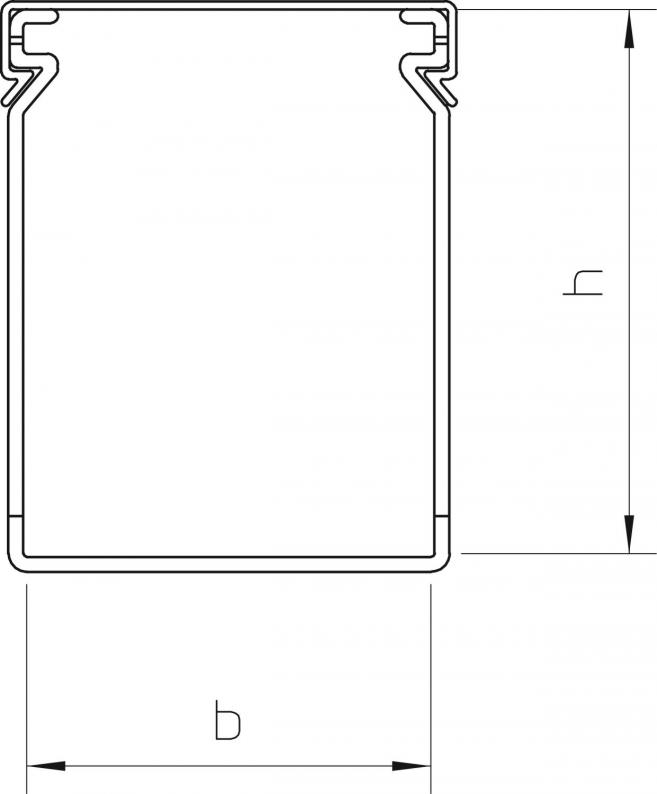

Dimensions

Length2000 mm
Width40 mm
Height40 mm

Technical data

Usable cross-section14,62 cm²
Diameter0 mm
Halojen İçermezno
kendiliğinden sönenyes
Duvar tipiSlotted
Creepage current-resistantyes
Esnekno
Üst parçalıyes
Yarık genişliği10 mm
Yarık uzunluğu4 mm
Fastening typeBase perforation
Kullanılabilir sıcaklık aralığı min.-5 °C
Kullanılabilir sıcaklık aralığı maks.60 °C
Boyut40x40x2000
MaterialPolyvinylchloride
ColourStone grey; RAL 7030

Environmental Data

Packaging made completely from recycled cardboard.yes
Packaging without plasticyes
CO2 ayak izi (GWP) beşikten kapıya1,153 kg CO2e / 1 Meter

Accessories

System accessories
Mounting accessories
Type
LK4 H

Smallest selling unit: 100 piece

piece

Item no. 6178484

Cover LK4 D 40
Type
LK4 D 40

Smallest selling unit: 2 m

m
