Wiring trunking, type LK4 40060

Wiring trunking, type LK4 40060

Type LK4 40060
|
Item no. 6178014
|
EAN 4012196000654
Show all variants
Item no. / Type
6178014 / LK4 40060
Length
2000 mm
Width
60 mm
Height
40 mm
Fastening type
Base perforation
Colour
Stone grey; RAL 7030

Smallest selling unit: 2 m

m

Description

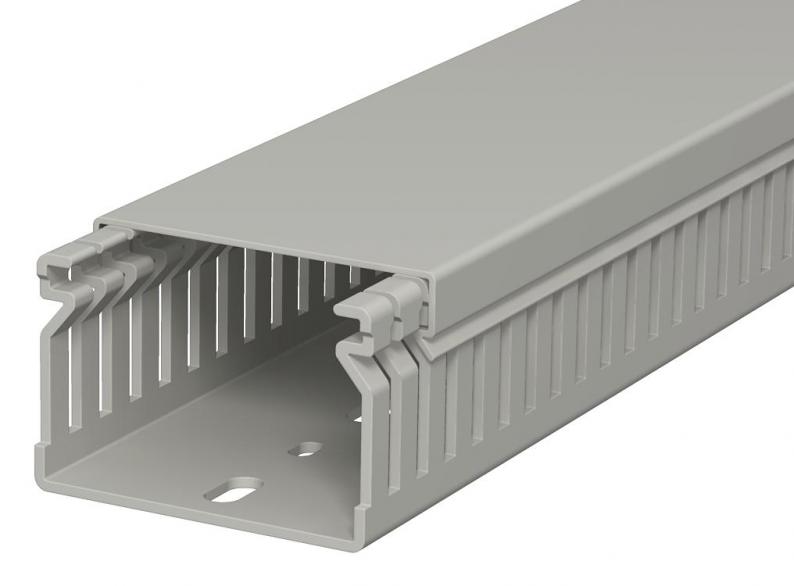

Wiring duct, incl. cover and base perforation, for horizontal and vertical routing of electrical cables in the switchgear cabinet. Designed as a metric duct. The nominal dimension of the system size corresponds to the internal dimension of the duct. Retainers are broken out without tools. The flush-floor routing of cables is possible through predetermined break points. Tested to DIN EN 50085-2-3. Special lengths on request.
  • Underwriters Laboratories Inc., USA + CSA, Kanada
  • Alman Elektrik, Elektronik ve Bilgi Teknolojileri Birliği
  • Communautés Européennes, AB Yönetmelikleri uyarınca AB Uygunluk Beyanı
  • UKCA declaration of conformity
  • CO₂ footprint (PCF)
  • Packaging without plastic
  • Packaging made entirely from recycled cardboard

Technical data

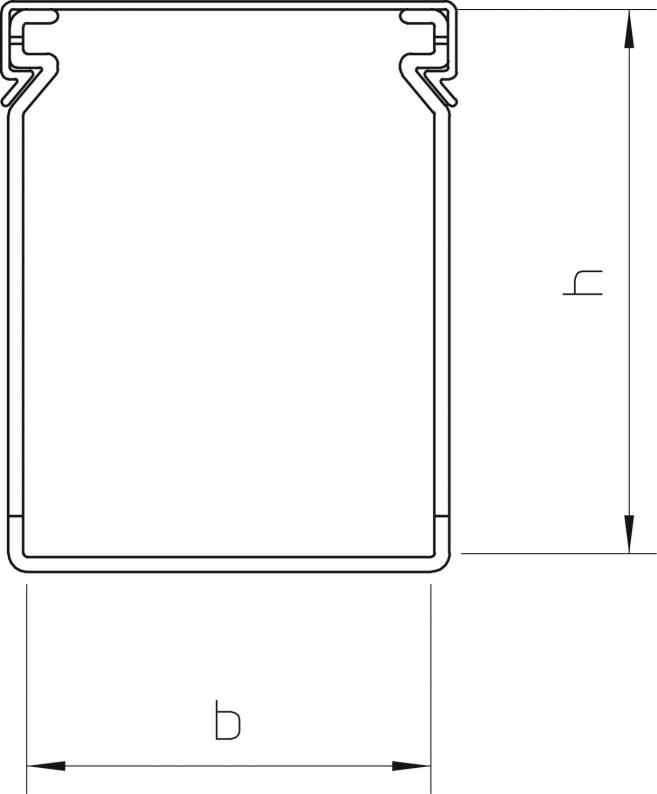

Dimensions

Length2000 mm
Width60 mm
Height40 mm

Technical data

Usable cross-section22,34 cm²
Diameter0 mm
Halojen İçermezno
kendiliğinden sönenyes
Duvar tipiSlotted
Creepage current-resistantyes
Esnekno
Üst parçalıyes
Yarık genişliği10 mm
Yarık uzunluğu4 mm
Fastening typeBase perforation
Kullanılabilir sıcaklık aralığı min.-5 °C
Kullanılabilir sıcaklık aralığı maks.60 °C
Boyut40x60x2000
MaterialPolyvinylchloride
ColourStone grey; RAL 7030

Environmental Data

Packaging made completely from recycled cardboard.yes
Packaging without plasticyes
CO2 ayak izi (GWP) beşikten kapıya1,3577 kg CO2e / 1 Meter

Accessories

System accessories
Mounting accessories
Type
LK4 H

Smallest selling unit: 100 piece

piece

Item no. 6178486

Cover LK4 D 60
Type
LK4 D 60

Smallest selling unit: 2 m

m

Downloads

0 selected

Data sheet (2)
Catalogues & Flyers (2)
Declarations (4)
Certificates (2)
Instructions and Aid (2)
Product images (2)
3D data downloads (1)
Tender specifications (1)

Variants

LK4 40060
Item no.
6178014
Length
2000
Width
60
Height
40
Fastening type
Base perforation
Colour
Stone grey; RAL 7030
