Wiring trunking, type LK4 40080

Wiring trunking, type LK4 40080

Type LK4 40080
|
Item no. 6178016
|
EAN 4012196000777
Show all variants
Item no. / Type
6178016 / LK4 40080
Length
2000 mm

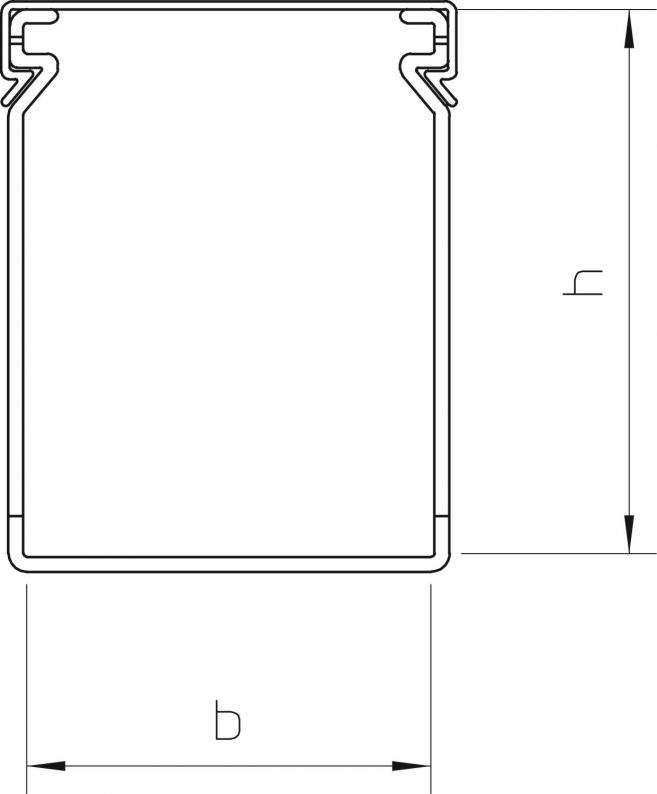

Width
80 mm
Height
40 mm
Fastening type
Base perforation
Colour
Stone grey; RAL 7030

Smallest selling unit: 2 m

m

Description

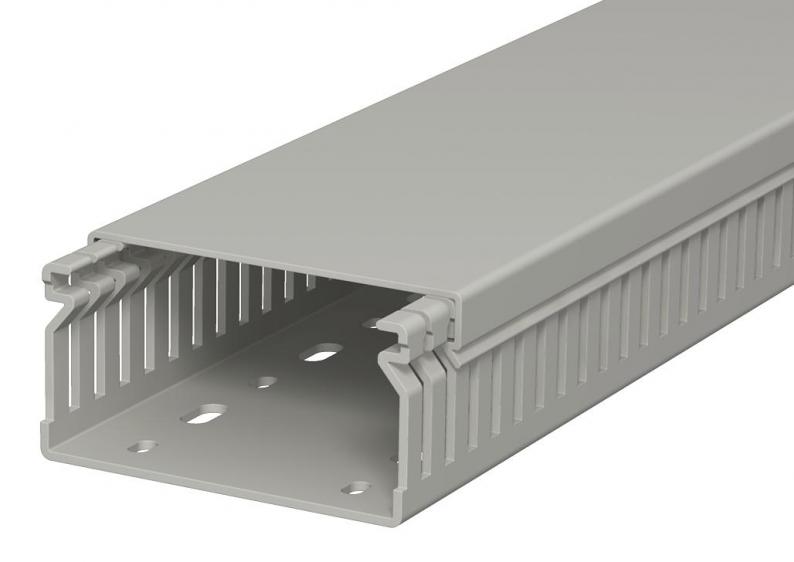

Wiring duct, incl. cover and base perforation, for horizontal and vertical routing of electrical cables in the switchgear cabinet. Designed as a metric duct. The nominal dimension of the system size corresponds to the internal dimension of the duct. Retainers are broken out without tools. The flush-floor routing of cables is possible through predetermined break points. Tested to DIN EN 50085-2-3. Special lengths on request.
  • Underwriters Laboratories Inc., USA + CSA, Canada
  • Verband der Elektrotechnik, Elektronik, Informationstechnik e.V., Germany
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • UKCA declaration of conformity
  • CO₂ footprint (PCF)
  • Packaging without plastic
  • Packaging made entirely from recycled cardboard

Technical data

Dimensions

Length2000 mm
Width80 mm
Height40 mm

Technical data

Usable cross-section30,47 cm²
Diameter0 mm
Halogen-freeno
Self-extinguishingyes
Side wall versionSlotted
Creepage current-resistantyes
Flexibleno
With coveryes
Slot spacing10 mm
Slot width4 mm
Fastening typeBase perforation
Permitted temperature range, min.-5 °C
Permitted temperature range, max.60 °C
Dimension40x80x2000
MaterialPolyvinylchloride
ColourStone grey; RAL 7030
Product seriesLK4

Environmental Data

1,689 kg CO2e / 1 MeterCO2 Footprint (GWP) Cradle-to-Gate
Packaging made completely from recycled cardboard.yes
Packaging without plasticyes
CO2 Footprint (GWP) Cradle-to-Gate1,689 kg CO2e / 1 Meter
CO₂ Footprint (GWP)1,689 kg CO₂e
Determination date of CO2 value2025-05-14T00:00:00.000+0200
Declared Unit (LCA)Metres
Declared Unit Quantity (LCA)1

Accessories

System accessories
Mounting accessories
Type
LK4 H

Smallest selling unit: 100 piece

piece

Item no. 6178488

Cover LK4 D 80
Type
LK4 D 80

Smallest selling unit: 2 m

m
