Note: This article is discontinued.

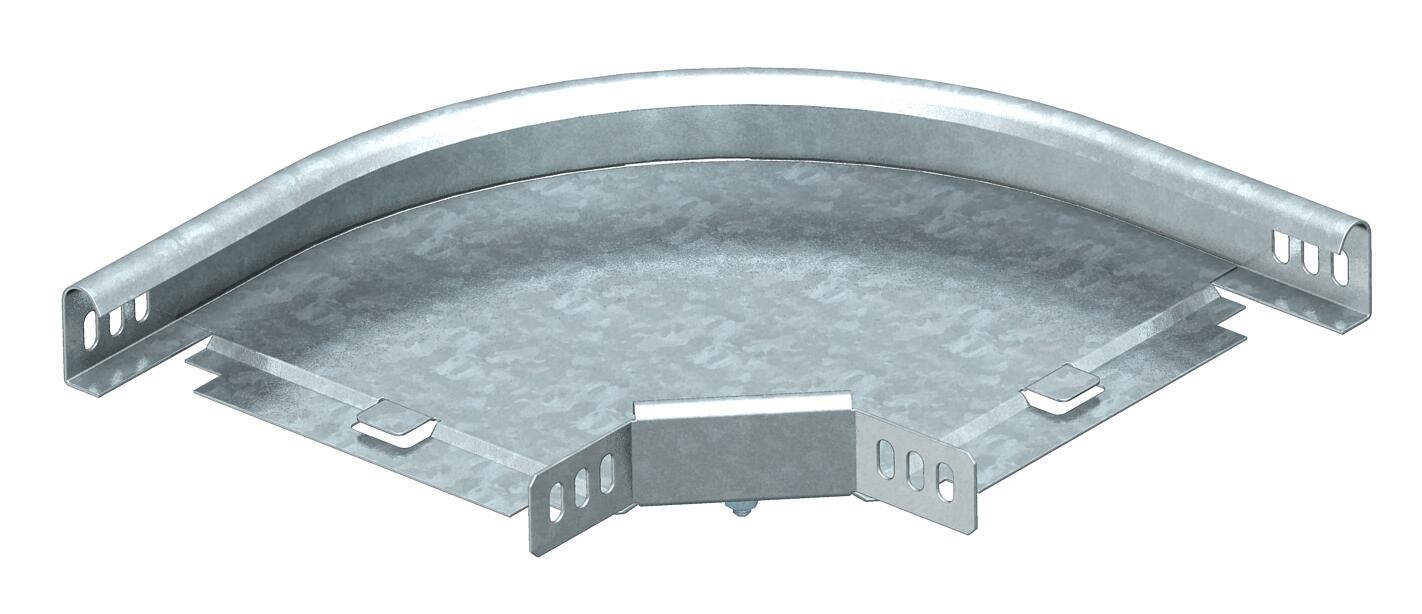

90° bend 35 FS
Item no. 6043119 | EAN 4012196050239
- Product description
-
Product description90° bend, horizontal, for all cable tray types of 35 mm side height.
The fitting is shipped in an unmounted state.
Including appropriate fastening material.
-
- Technical data
-
Technical data
Bend (angle) 90° Change of direction Horizontal Connector version Supplied connectors Dimension 35x100 Dimension B 100 mm Dimension R 50 mm Height 1 in Height 35 mm Maintain electrical functions no Material Steel Mounting perforation in base no NATO hole pattern no Rustproof steel, pickled no Side perforation no Surface Strip galvanized Type Bend, rigid Type of connector, cable support system Screwed Wide-span version no Width 4 in Width 100 mm With cover no - All types
- Downloads
-
Data sheet RB 90 310 FS / 6043119 , 0.17MB , pdfEU declaration of conformity RB 90 310 FS / 6043119 , 0.10MB , pdfREACH Declaration of conformity RB 90 310 FS / 6043119 , 0.12MB , pdfRoHS Declaration of conformity RB 90 310 FS / 6043119 , 0.12MB , pdfMounting instructions Mounting instructions Screw-on cable tray systems , 9.41MB , pdfMounting instructions General information on the mounting , 2.65MB , pdf
