Note: This article is discontinued.

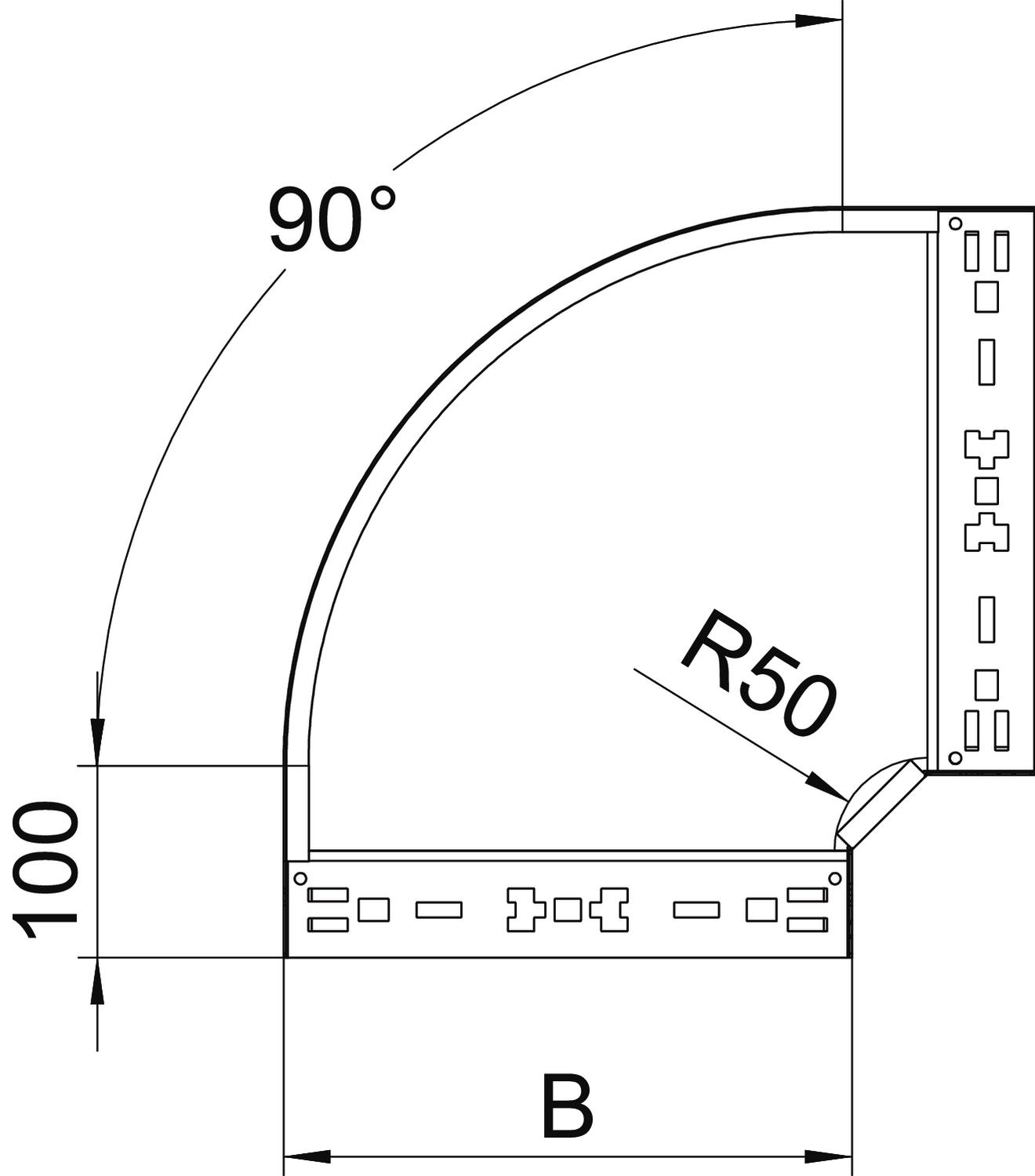

90° Magic bend 60 FS
Item no. 6041134 | EAN 4012195881834
- Product description
-
Product description90° bend with quick connector system. For all cable tray types of 60 mm side height.
-
- Technical data
-
Technical data
Bend (angle) 90° Change of direction Horizontal CO2 Footprint (GWP) Cradle-to-Gate 4,0799 kg CO₂e / 1 Piece Colour zinc Connector version Integrated connector Dimension 60x200 Dimension B 200 mm Fire protection Use of fire protection ceilings Height 2 in Height 60 mm Maintain electrical functions yes Material Steel Mounting perforation in base no NATO hole pattern no Plate thickness 1,25 mm Rustproof steel, pickled no Side perforation no Surface Strip galvanized Type of connector, cable support system Click fastening Wide-span version no Width 8 in Width 200 mm - All types
- Downloads
-
Data sheet RBM 90 620 FS / 6041134 , 0.21MB , pdfCatalogue Cable support systems , 54.52MB , pdfEU declaration of conformity RBM 90 620 FS / 6041134 , 0.10MB , pdfUK Declaration of Conformity RBM 90 620 FS / 6041134 , 0.09MB , pdfREACH Declaration of conformity RBM 90 620 FS / 6041134 , 0.12MB , pdfRoHS Declaration of conformity RBM 90 620 FS / 6041134 , 0.12MB , pdfMounting instructions General information on the mounting , 2.65MB , pdf
