90° vertical bend, rising, 35 FT
Item no. 7007176 | EAN 4012195863236
- Product description
-

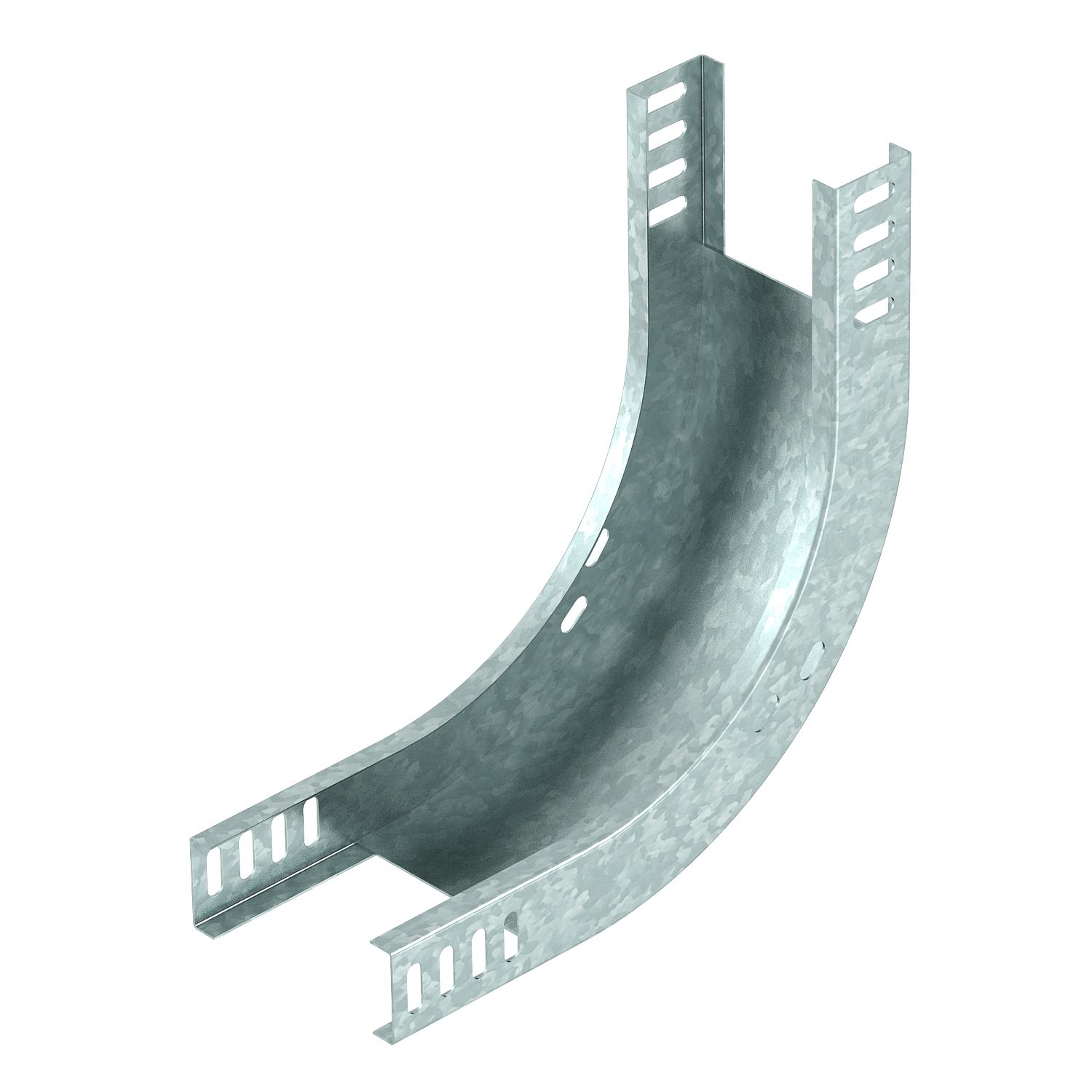

Product description90° rising vertical bend, for all cable tray types of 35 mm side height.
The vertical bend is pushed over the end of the cable tray and screwed tight.
Fastening materials should be ordered separately.
-
- Technical data
-
Technical data

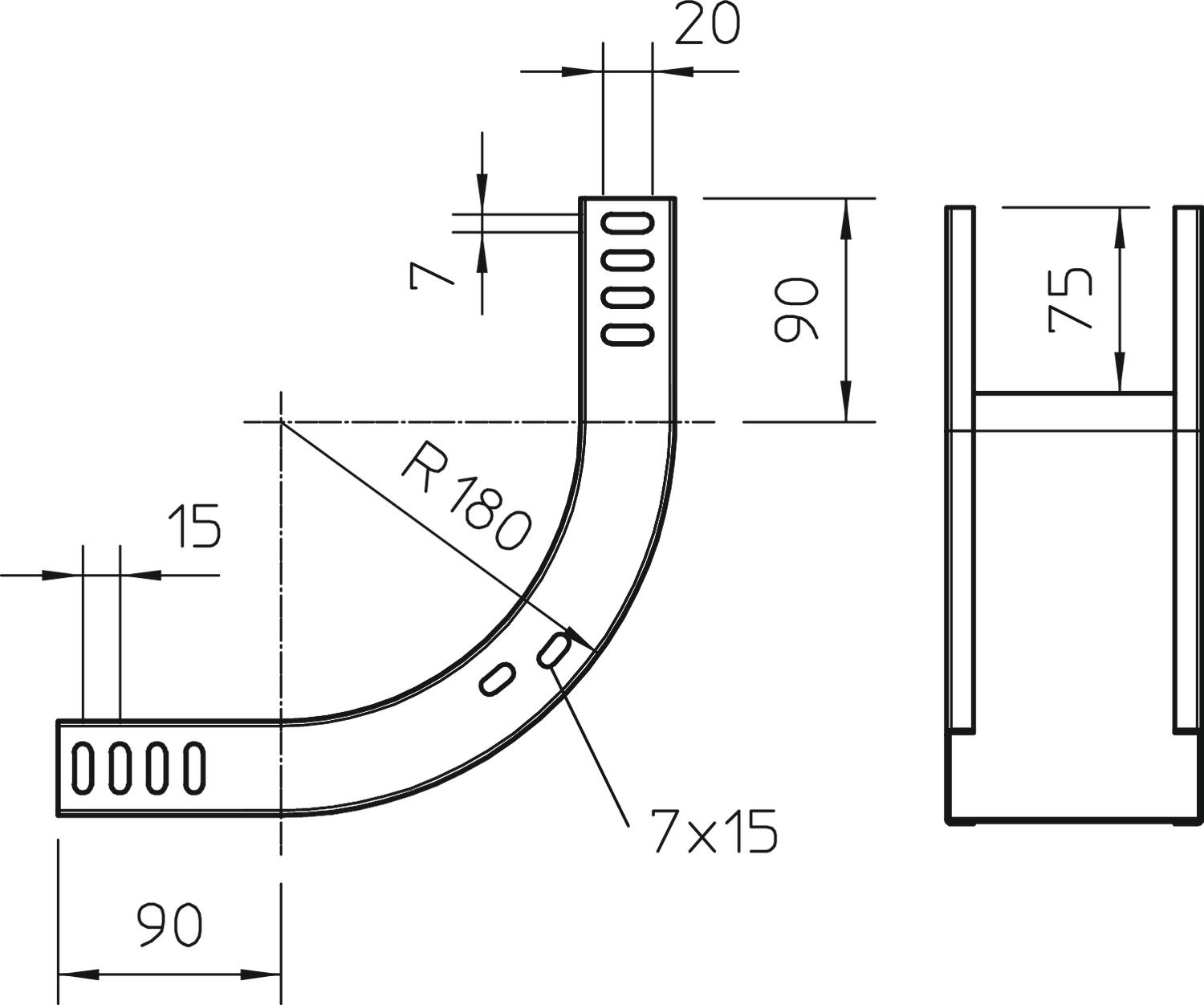

Bend (angle) 90° Change of direction Vertical rising CO2 Footprint (GWP) Cradle-to-Gate 1,8169 kg CO2e / 1 Piece Colour zinc Connector version Without connectors Dimension 35x100 Height 35 mm Height 1 in Material Steel Plate thickness 1 mm Surface Hot-dip galvanised Type of connector, cable support system Screwed Width 4 in Width 100 mm - All types
- Downloads
-
Data sheet RBV 310 S FT / 7007176 , 0.21MB , pdfEU declaration of conformity RBV 310 S FT / 7007176 , 0.10MB , pdfREACH Declaration of conformity RBV 310 S FT / 7007176 , 0.12MB , pdfRoHS Declaration of conformity RBV 310 S FT / 7007176 , 0.12MB , pdfMounting instructions General information on the mounting , 2.65MB , pdf
