Note: This article is discontinued.

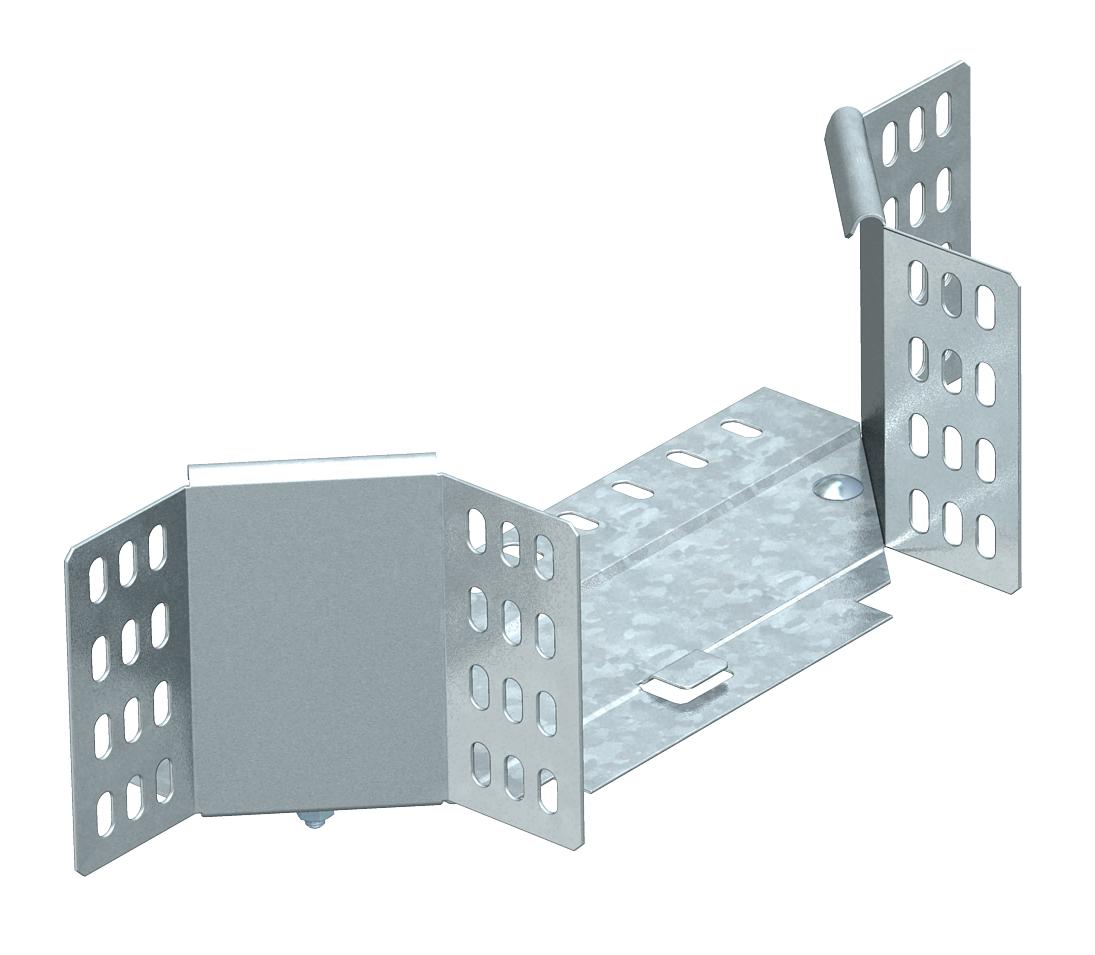

Add-on tee 110 FS
Item no. 7002637 | EAN 4012196819799
- Product description
-
Product descriptionAdd-on tee for horizontal and vertical use. For all cable tray types of 110 mm side height.
The fitting is shipped in an unmounted state.
Including appropriate fastening material.
-
- Technical data
-
Technical data

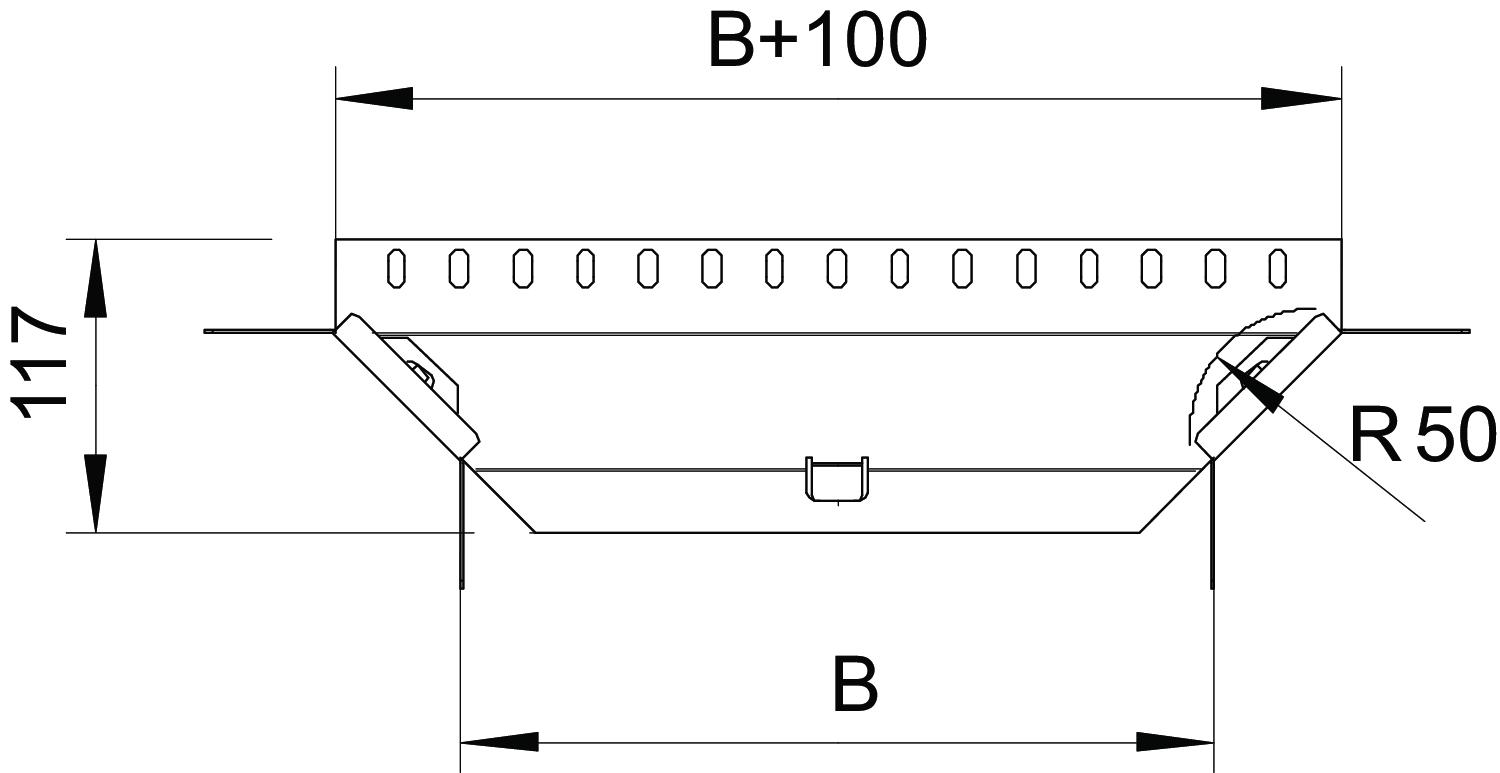

Bend (angle) 90° Change of direction Horizontal Colour zinc Connector version Supplied connectors Dimension 110x100 Dimension B 100 mm Dimension R 50 mm Height 110 mm Height 4 in Maintain electrical functions no Material Steel Material thickness, floor plate 1 mm NATO hole pattern no Rail thickness 1,25 mm Rustproof steel, pickled no Surface Strip galvanized Type of connector, cable support system Screwed Wide-span version no Width 4 in Width 100 mm - All types
-
Mounting accessories
Products Types Item no. Quantity SSU
Truss-head bolt with flange nut F
FRSB 6x12 F 6406122 100 piece - Downloads
-
Data sheet RAA 110 FS / 7002637 , 0.22MB , pdfEU declaration of conformity RAA 110 FS / 7002637 , 0.10MB , pdfUK Declaration of Conformity RAA 110 FS / 7002637 , 0.09MB , pdfREACH Declaration of conformity RAA 110 FS / 7002637 , 0.12MB , pdfRoHS Declaration of conformity RAA 110 FS / 7002637 , 0.12MB , pdfMounting instructions Mounting instructions Screw-on cable tray systems , 9.41MB , pdfMounting instructions General information on the mounting , 2.65MB , pdf
