Air-termination rod, one end rounded, M16 thread 1500 | 16

morepic-1

morepic-2

Air-termination rod, one end rounded, M16 thread

Item no. 5402859 | EAN 4012195428473

Item no. / Types

Length

Nominal size Ø	16 mm

Product description

Product description

• With thread M16 x 20
• With connecting strap
• Including pre-mounted connector type 5001 DIN for round conductor Rd 8-10
• For stands with female thread M16

Technical data

Technical data

CO2 Footprint (GWP) Cradle-to-Gate	5,459 kg CO2e / 1 Piece
Connection	Round conductor
Dimension	1500mm
Dimension L	1500 mm
High voltage-resistant, insulated version	no

Length	1500 mm
Material	Steel
Nominal size Ø	16 mm
Surface	Hot-dip galvanised
Version for	Air-termination rod

All types

All types

Types	Length	Nominal size Ø	Item no.	Quantity	SSU
101 A-L100	1000 mm	16 mm	5402808	piece	1 piece
101 A-L150	1500 mm	16 mm	5402859	piece	1 piece

Accessories

System accessories

Products	Types	Item no.	Quantity	SSU
Stand 6.9 kg with female thread	101 ST	5402891	piece	4 piece
Concrete base min. 16 kg with female thread	101 B2-16 M16	5402958	piece	1 piece

Downloads

Data sheet 101 A-L150 / 5402859 , 0.14MB , pdf

Guide Lightning protection guide , 2.10MB , pdf

Catalogue External lightning protection , 19.55MB , pdf

REACH Declaration of conformity 101 A-L150 / 5402859 , 0.12MB , pdf

Download

RoHS Declaration of conformity 101 A-L150 / 5402859 , 0.13MB , pdf

Download

Product graphic 101 A-L150 / 5402859, 15.86 kB, jpg

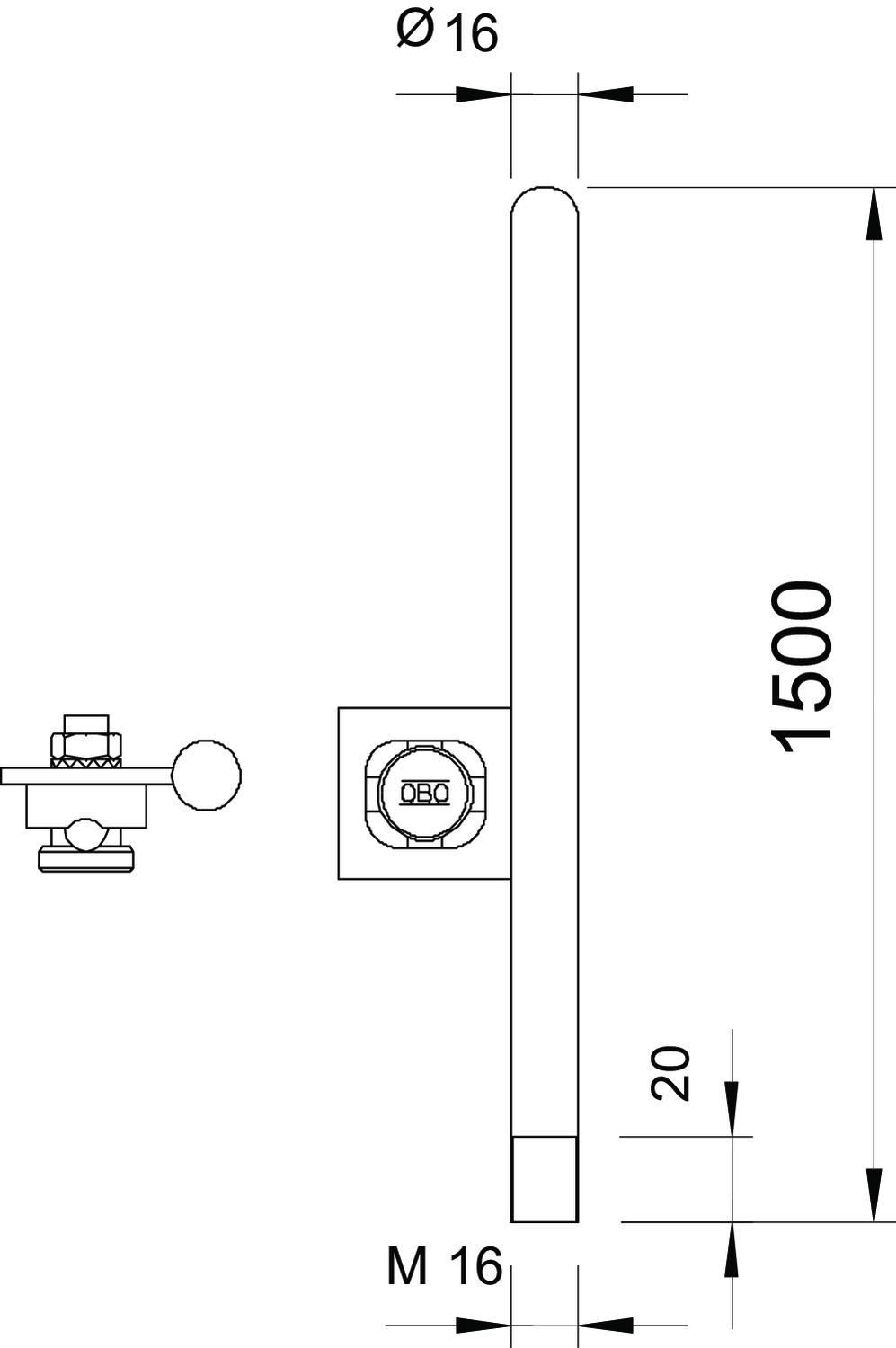

Scale drawing 101 A-L150 / 5402859, 46.37 kB, jpg

101 A-L150 / 5402859
