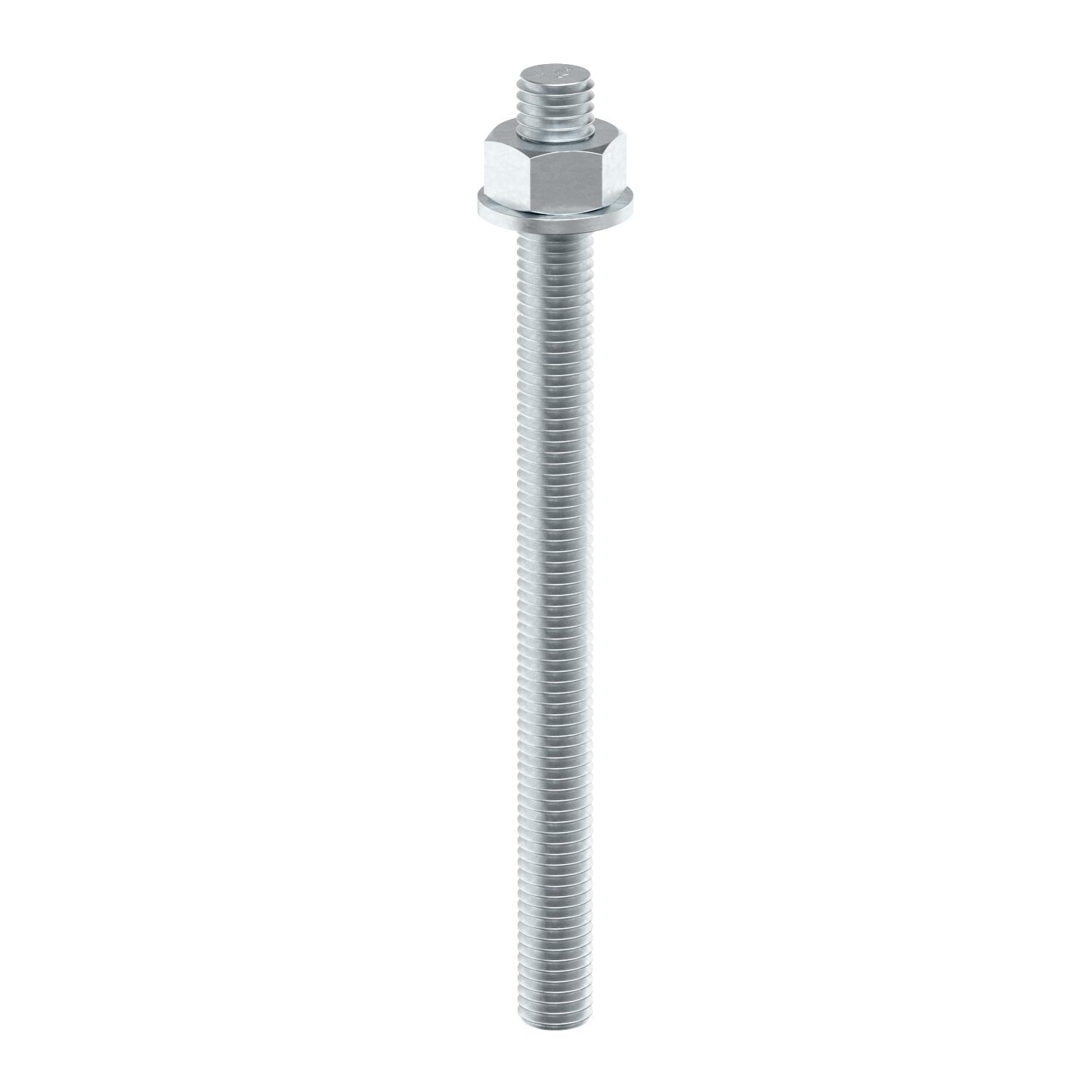

Anchor rod

Item no. 3497820 | EAN 4012196606757

Item no. / Types

Length

Thread

Dimension d

WAF

Product description

Product description

With the anchor rod and matching plastic wire sleeve, loads are fastened without spreading pressure in masonry walls using the VMS plus injection mortar. The system is also used for fastening in concrete ceilings. On concrete and full brick walls, the anchor rod is only mounted with the injection mortar VMU plus, without a wire sleeve.

The anchor rod VMU-A 8x110 mm is mounted using the plastic wire sleeve VM-SH 12x80 or VM-SH 16x85.

The VMU-A 10x130 mm anchor rod is mounted using the VM-SH 16x85 plastic wire sleeve.

The VMU-A 10x150 mm anchor rod is mounted using the VM-SH 16x85 or VM-SH 16x130 plastic wire sleeve.

The VMU-A 12x155 mm anchor rod is mounted using the VM-SH 20x85 plastic wire sleeve.

Use the wire sleeve VMU-SH 12x50 for the anchor rods M6 (L=65 mm) and M8 (L=65 mm). Should the anchor rods M8 (L=120 mm), M10 (L=140 mm), M10 (L=160 mm) and M12 (L=165 mm) be used, then use the wire sleeve VMU-SH 18x95.

Technical data

Technical data

Colour	zinc
Depth marking	yes

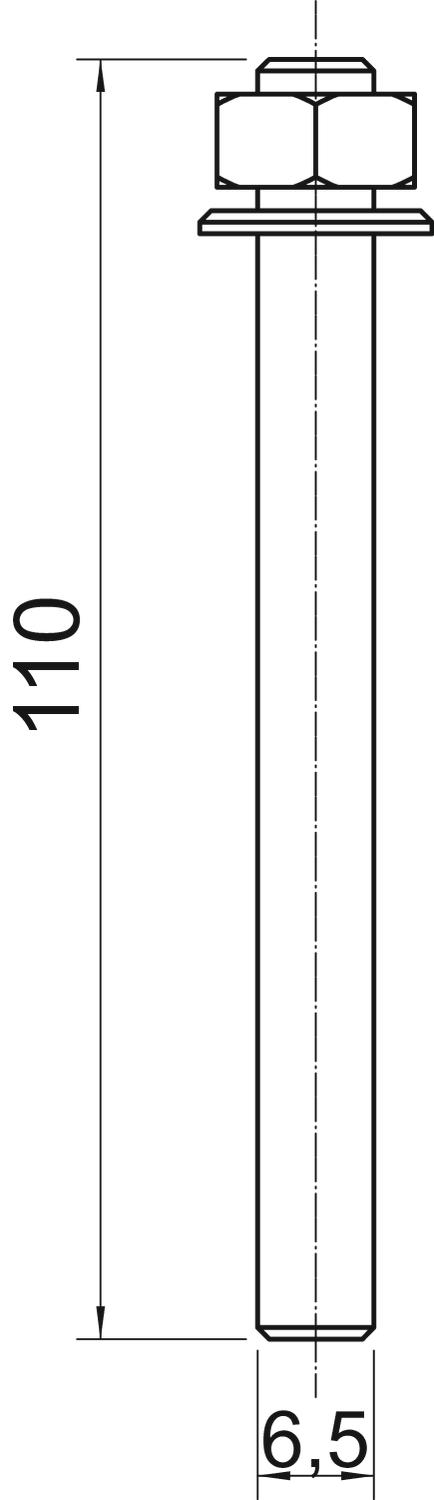

Dimension	110x6,5
Dimension d	8 mm
Dimension L	110 mm
Length	110 mm
Material	Steel

Resistance grade	5.8
Surface	Electrogalvanized
Thread	M8
Thread metric	8
Thread type	Metric
WAF	13
With external thread	yes

All types

All types

Types	Length	Thread	Dimension d	WAF	Item no.	Quantity	SSU
VMU-A 8-110vz	110 mm	M8	8 mm	13	3497820	piece	10 piece
VMU-A 10-130vz	130 mm	M10	10 mm	17	3497822	piece	10 piece
VMU-A 10-150vz	150 mm	M10	10 mm	17	3497824	piece	10 piece
VMU-A 12-155vz	155 mm	M12	12 mm	19	3497826	piece	10 piece

Accessories

Mounting accessories

Products	Types	Item no.	Quantity	SSU
Steel cleaning brush for drill holes	RB 10 M 6	3497870	piece	1 piece
Steel cleaning brush for drill holes	RB 12 M 6	3497872	piece	1 piece
Plastic wire sleeve	VMU-SH 12x80	3497860	piece	10 piece
Injection mortar in cartridge, 420 ml	VMU plus 420	3497803	piece	1 piece
