Bandage for insulation
Item no. 7203163 | EAN 4012196608737
- Product description
-

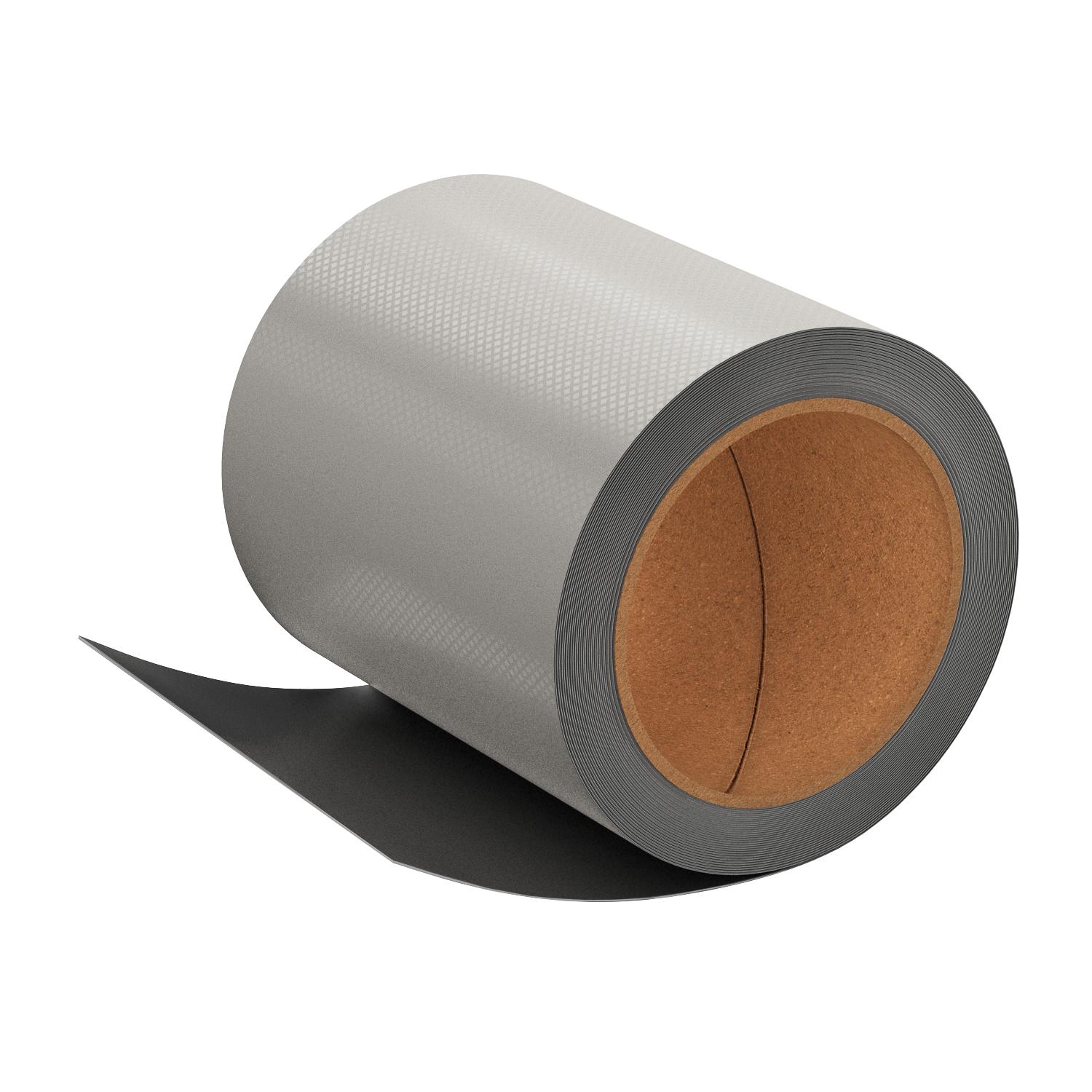

Product descriptionFire protection bandage, coated on one side with material that foams up in the event of fire, for wrapping installations in the PYROMIX® mortar insulation and PYROPLATE® Fibre plate insulation. The carrier mesh has an insulation creator on one side. The nominal thickness is 1.5 mm.
The bandage can be used as an additional measure according to the specific proofs of usability for cables, cable bundles, lengths, Klimasplit, Speedpipes, hydraulic pipes or empty tubes.
-
- Technical data
-
Technical data

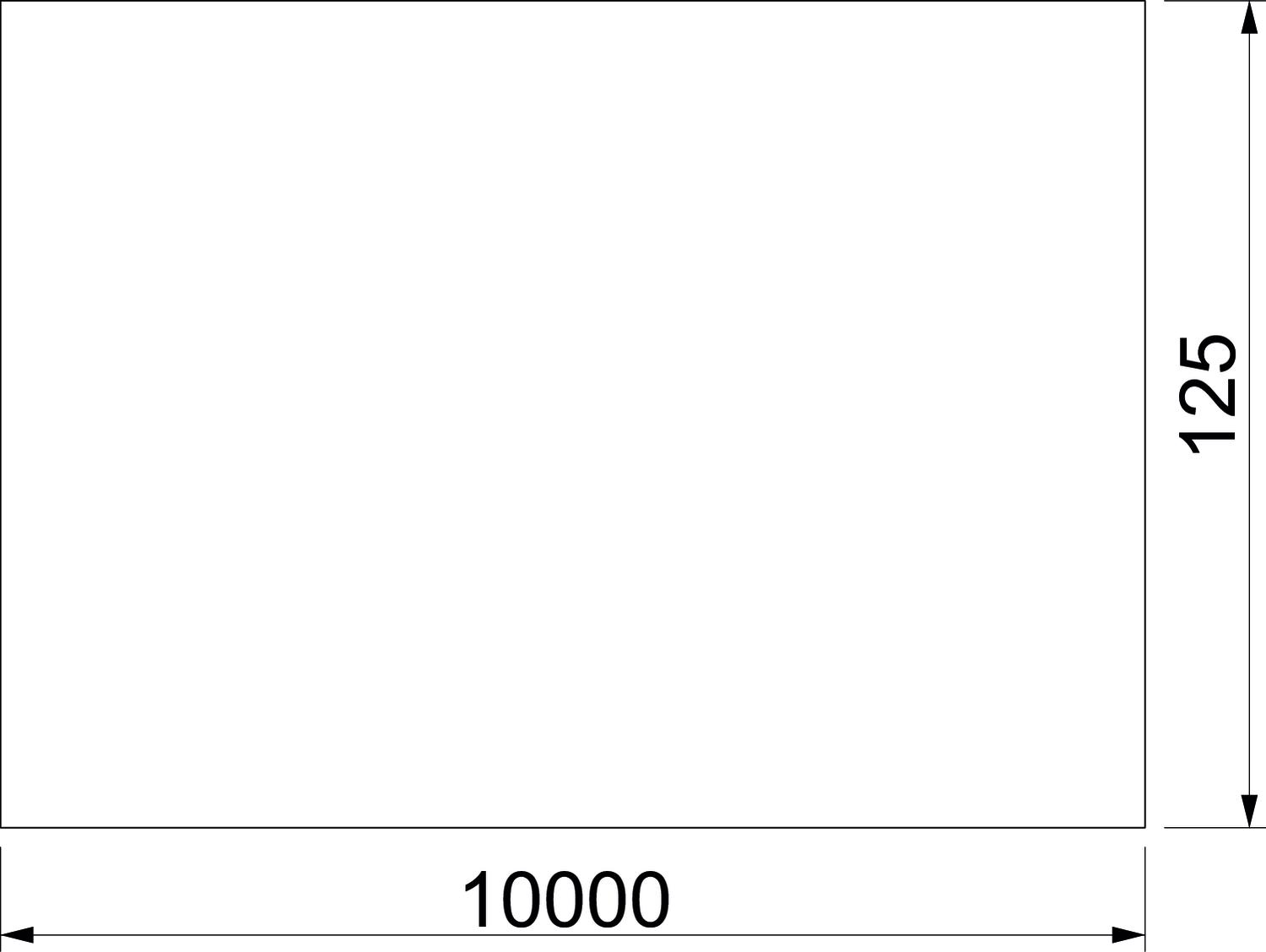

Colour Grey Contents 2,26 kg Delivery form Roll Dimension 10000x125 Dimension B 125 mm Dimension L 10000 mm Height 1,5 mm Length 10000 mm Length 10 m Thickness 1,5 mm Width 125 mm - All types
-
Mounting accessories
Products Types Item no. Quantity SSU
Winding wire for path insulation
MIW-TD 7202309 1 piece - Downloads
-
Data sheet FSB-WB 1.5 / 7203163 , 0.32MB , pdfEU declaration of conformity FSB-WB 1.5 / 7203163 , 0.11MB , pdfDeclaration of performance FSB-WB 1.5 / 7203163 , 0.75MB , pdfSelection aid Selection aid, insulation , 0.86MB , pdf
