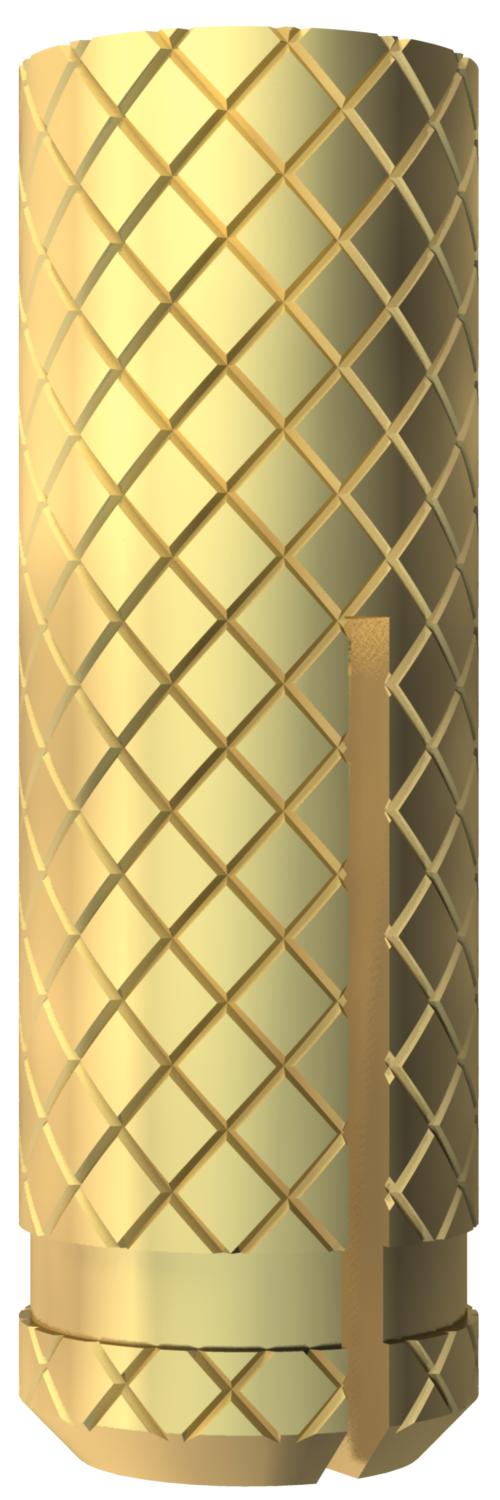

Brass spreading anchor

Item no. / Types

Diameter

Length

Drill hole depth

Drill hole diameter, min.

Product description

Product description

Areas of application: full brick, concrete, wood. Ideally suited for areas exposed to high temperatures.

Technical data

Suitable for fastening with cable ties	no
Suitable for hexagonal wood screw	no
Suitable for material	Concrete
Thread	M6
Version for	Spreading anchor
With bolts	no

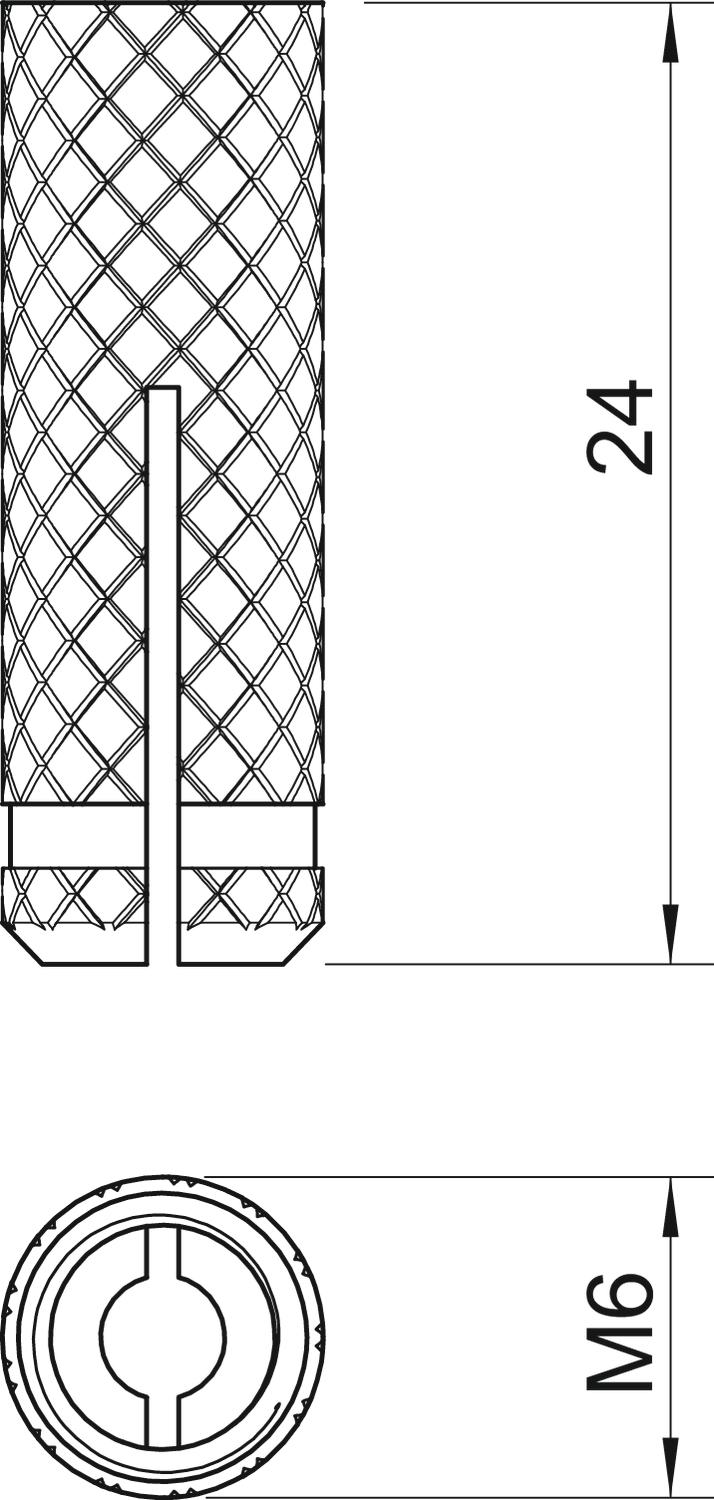

Dimension D	7,5 mm
Dimension L	24 mm

Length	24 mm

All types

Types	Diameter	Length	Drill hole depth	Drill hole diameter, min.	Item no.	Quantity	SSU
865 M6x24	7.5 mm	24 mm	32 mm	8 mm	3483061	piece	100 piece
865 M8x30	10 mm	30 mm	41 mm	11 mm	3483088	piece	100 piece
865 M10x34	12 mm	34 mm	53 mm	12 mm	3483096	piece	100 piece
