Cable connection sleeve
Item no. 2022060 | EAN 4012195159919
- Product description
-
Product descriptionProtection rating IP54, nominal voltage 660 V. VDE specifications state that connection sleeves are only intended for local routing.
117/6 VDE: Nennquerschnitt mm²,mit 5poligem Klemmeinsatz 6 mm² und Kabeleinführungen mit Zugentlastung Pg 21 für Kabeldurchmesser 12-18 mm
117/2.5 VDE / PG 16: nominal cross-section 2.5 mm², with 5-pole terminal insert 2.5 mm² and cable entries with strain relief for cable diameter 9–14 mm.
117/6 VDE / PG 21: nominal cross-section 6 mm², with 5-pole terminal insert 6 mm² and cable entries with strain relief for cable diameter 12–18 mm.
-
- Technical data
-
Technical data

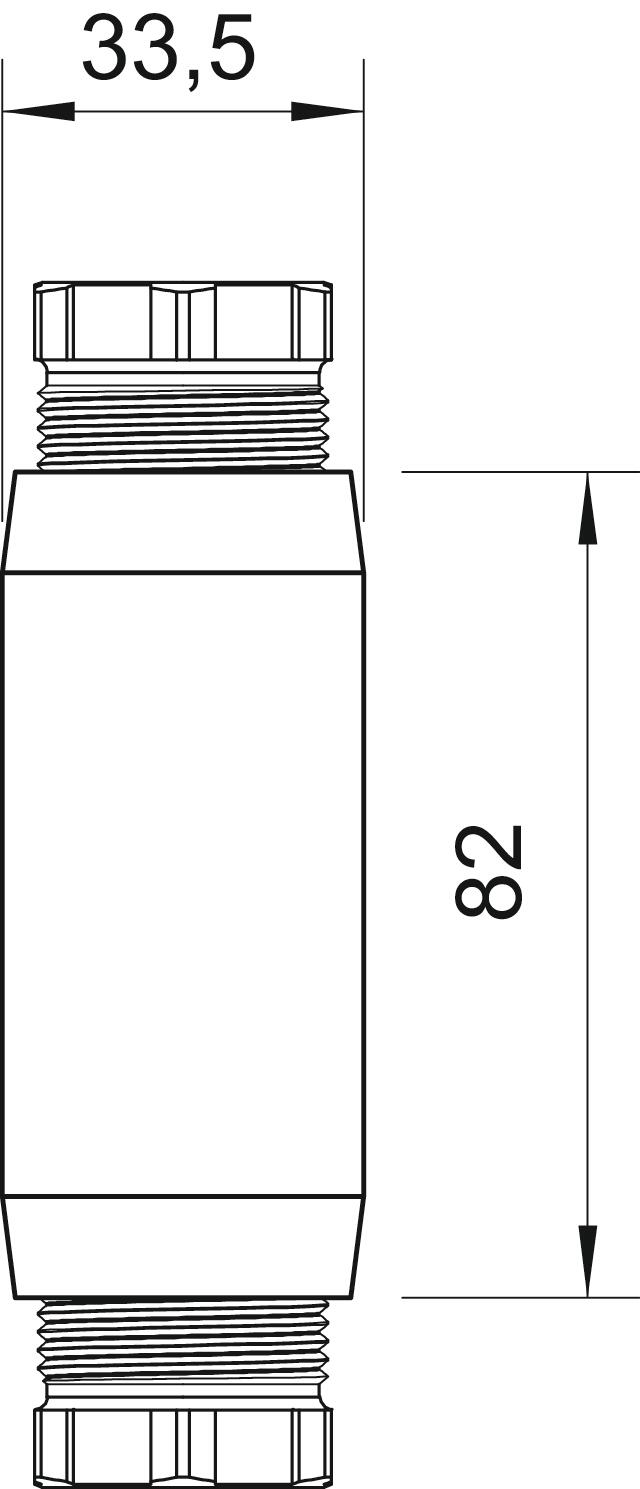

CO2 Footprint (GWP) Cradle-to-Gate 0,2342 kg CO2e / 1 Piece Colour Light grey; RAL 7035 Dimension 6mm2 Dimension D 33,5 mm Dimension L 82 mm Halogen-free yes Impact-resistant yes Material Polystyrene Nominal voltage 660 V Protection rating IP54 - All types
- Downloads
-
Data sheet 117 5x6 / 2022060 , 0.18MB , pdfREACH Declaration of conformity 117 5x6 / 2022060 , 0.12MB , pdfRoHS Declaration of conformity 117 5x6 / 2022060 , 0.12MB , pdf
