Cable gland, metric thread, with screw plug, light grey | | M20 x 1,5 | no | Light grey; RAL 7035

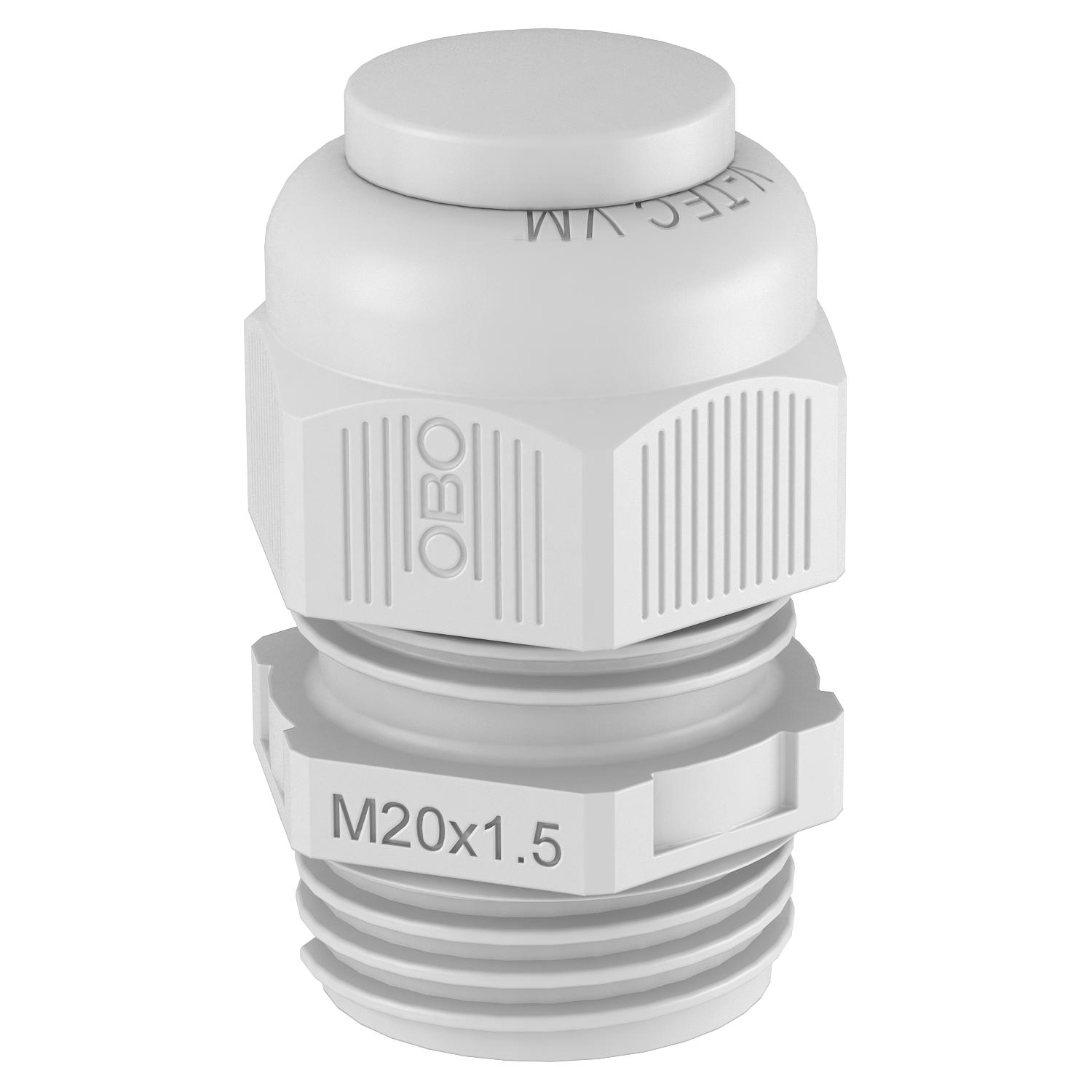

Cable gland, metric thread, with screw plug, light grey

Item no. 2023044 | EAN 4012196474455

Item no. / Types

Thread

Sealing insert, multiple	no

Colour	Light grey; RAL 7035

Product description

Product description

Cable gland with metric connection thread in cap nut design, suitable for junction boxes, housings, distributor cabinets in private and industrial areas. With strain relief and integrated sealing lip, tested according to DIN EN 62444. Protection class IP68. Can be used between –20°C and +65°C.

This makes it easy to close unnecessary openings. No dust or water is able to enter, so the protection rating remains intact.

Ideal if all available openings are to be fitted with cable glands right at the time of installation. This considerably reduces the workload during retroinstallation.

Technical data

Technical data

Bend protection	no
CO2 Footprint (GWP) Cradle-to-Gate	0,0495 kg CO2e / 1 Piece
Colour	Light grey; RAL 7035
Dimension	M20
Dimension E	27 mm
Dimension L max.	30,5 mm
Dimension L min.	28 mm
Dimension L1	9 mm
Dimension L2	5 mm
Dimension L3	23,5 mm
explosion-proof	no
Fibre-glass reinforced	no
Flame-resistant	acc. to VDE 0471/DIN 695 Part 2-1, test temperature 650°C
Flat cable gland	no
For Ex zone	Without
For Ex zone dust	Without
For Ex zone gas	Without
Halogen-free	yes
Height	27 mm
Hexagonal corner dimension	27 mm
Impact-resistant	no
Length	28 mm

Material	Polyamide
Nominal thread size	20
Permitted temperature range, max.	65 °C
Permitted temperature range, min.	-20 °C
Protection rating	IP68
Sealing area D, max.	13 mm
Sealing area D, min.	6 mm
Sealing insert, multiple	no
Splittable gland	no
Strain relief option	yes
Thread	M20 x 1,5
Thread increase	1,5 mm
Thread length	10 mm
Thread type	Metric
Type of seal	Sealing ring
Unstable torque	3,8 Nm
Version for	Straight
WAF	24
WAF 1	24 mm
Width	24 mm
With locknut	no

All types

All types

Types	Thread	Sealing insert, multiple	Colour	Item no.	Quantity	SSU
V-TEC VM12VS LGR	M12 x 1,5	no	Light grey; RAL 7035	2023040	piece	50 piece
V-TEC VM16VS LGR	M16 x 1,5	no	Light grey; RAL 7035	2023042	piece	50 piece
V-TEC VM20VS LGR	M20 x 1,5	no	Light grey; RAL 7035	2023044	piece	50 piece
V-TEC VM25VS LGR	M25 x 1,5	no	Light grey; RAL 7035	2023046	piece	25 piece
V-TEC VM32VS LGR	M32 x 1,5	no	Light grey; RAL 7035	2023048	piece	20 piece
