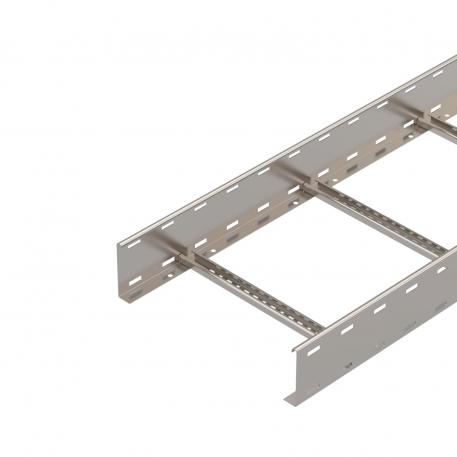

Cable ladder LG 110, 6 m VS A2
Item no. 6216495 | EAN 4012196082971
- Product description
-
Product descriptionCable ladder with perforated side rail of side height 110 mm with riveted C profile rungs, open in an upwards direction.
Magnetic shield insulation without cover 10 dB, with cover 15 dB.
The cable ladder is shipped folded up.
You can find the appropriate U clamp of type 2056 in the vertical ladder systems chapter.
-
- Technical data
-
Technical data

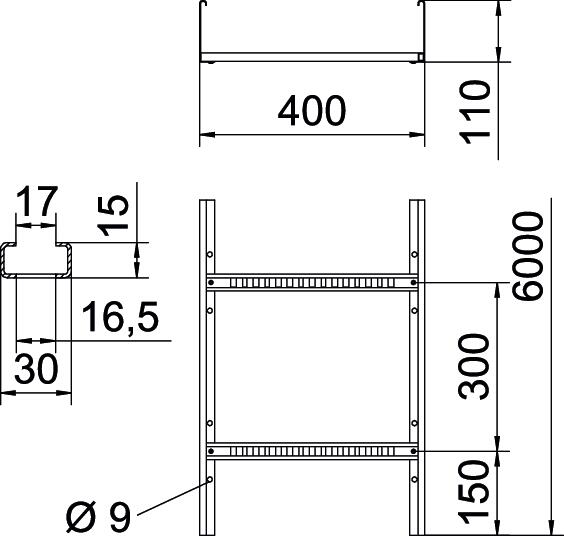

CO2 Footprint (GWP) Cradle-to-Gate 21,7989 kg CO2e / 1 Meter Colour stainless steel Dimension 110x400 Dimension 110x400x6000 Dimension B 400 mm Fastening of rung Blind riveted Height 110 mm Length 6000 mm Material Stainless steel 1.4301 Rail thickness 1,5 mm Rung distance 300 mm Rung slot dimension 16,50 Support spacing 2.0 m 3,1 kN/m Support spacing 2.5 m 2 kN/m Support spacing 3.0 m 1,3 kN/m Support spacing 3.5 m 0,9 kN/m Support spacing 4.0 m 0,6 kN/m Support spacing 4.5 m 0,5 kN/m Support spacing 5.0 m 0,45 kN/m Support spacing 6.0 m 0,15 kN/m Surface Bright, treated Usable cross-section 378 cm² Usable cross-section 37800 mm² Wide-span version no Width 400 mm - All types
-
All types
-
System accessories
Products Types Item no. Quantity SSU
End cap
SKH 110 OR 6222553 20 Pair
Cover with turn buckle A2
DRL 400 A2 6052932 3 m
Barrier strip 85 A2
TSG 85 A2 6062173 3 m
Drop-out plate A2
LAB 40 A2 7164033 1 piece Mounting accessories
Products Types Item no. Quantity SSU
Clamping piece for separating retainer fastening A2
KS KL A2 6062284 30 piece - Downloads
-
Data sheet LG 114 VS6 A2 / 6216495 , 0.21MB , pdfCatalogue Cable support systems , 54.52MB , pdfEU declaration of conformity LG 114 VS6 A2 / 6216495 , 0.10MB , pdfUK Declaration of Conformity LG 114 VS6 A2 / 6216495 , 0.09MB , pdfREACH Declaration of conformity LG 114 VS6 A2 / 6216495 , 0.12MB , pdfRoHS Declaration of conformity LG 114 VS6 A2 / 6216495 , 0.12MB , pdfEnvironmental Product Declaration (EPD) LG 114 VS6 A2 / 6216495 , 1.48MB , pdfMounting instructions Mounting instructions, cable ladder systems , 6.45MB , pdfMounting instructions General information on the mounting , 2.65MB , pdfNo invitation to tender text is available for this product.
