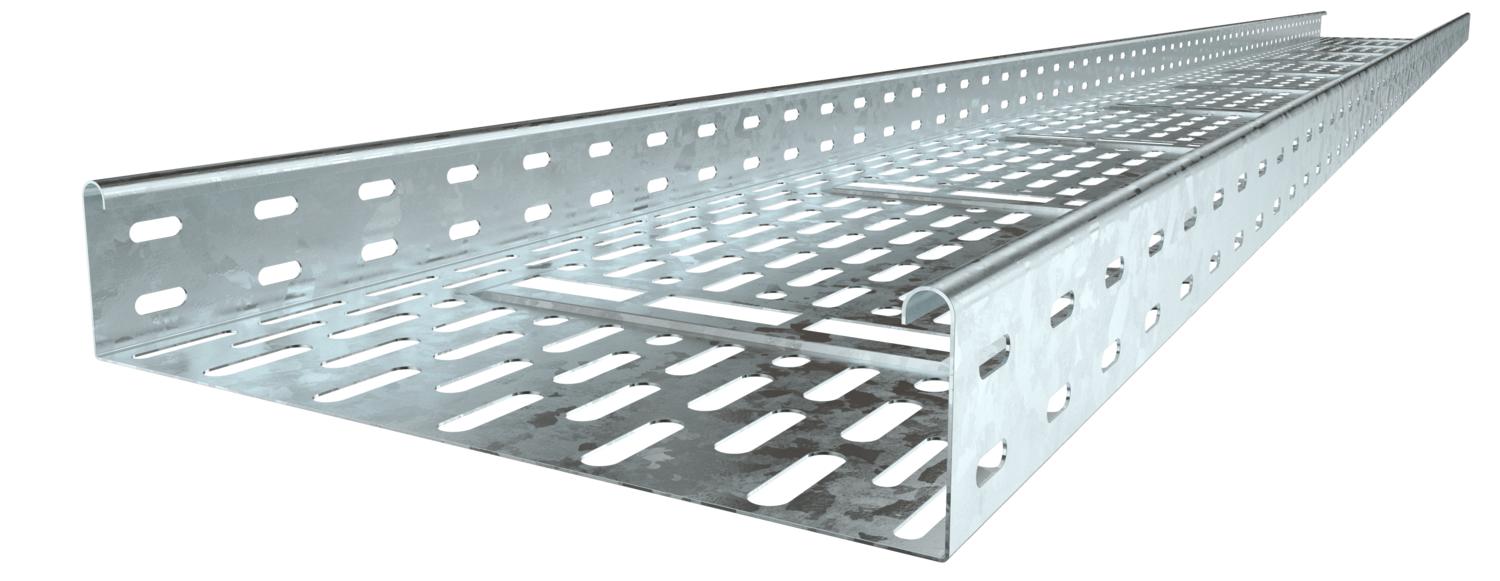

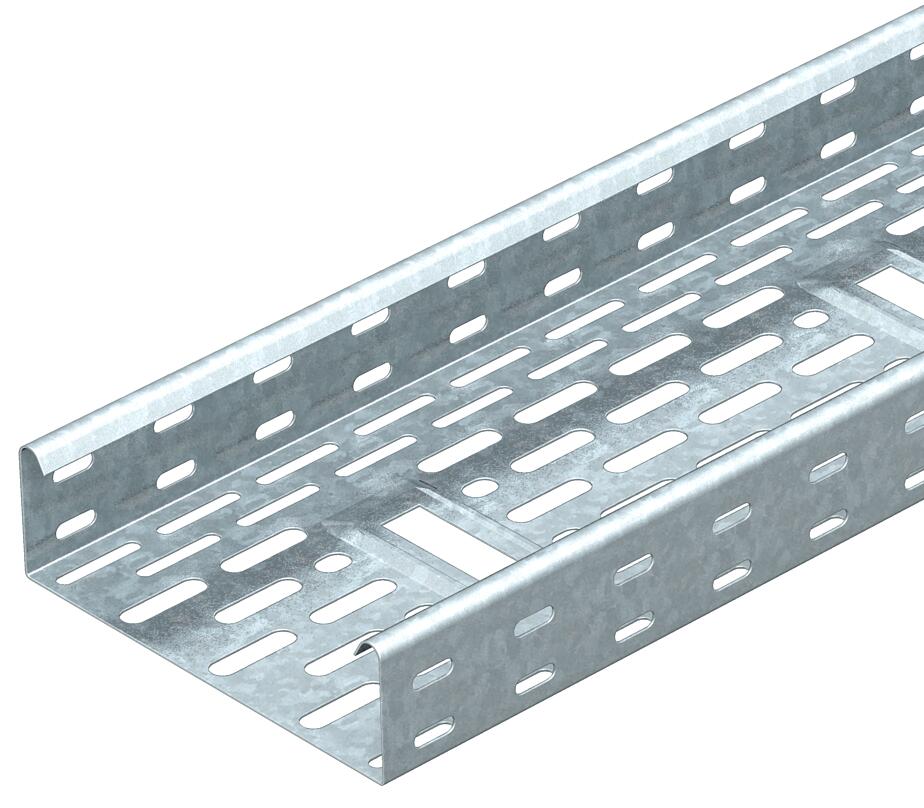

Cable tray DKS 60 FT

Item no. / Types

Length	3000 mm

Width

Plate thickness

Maintain electrical functions	no

Material	Steel

Surface	Hot-dip galvanised

Product description

Product description

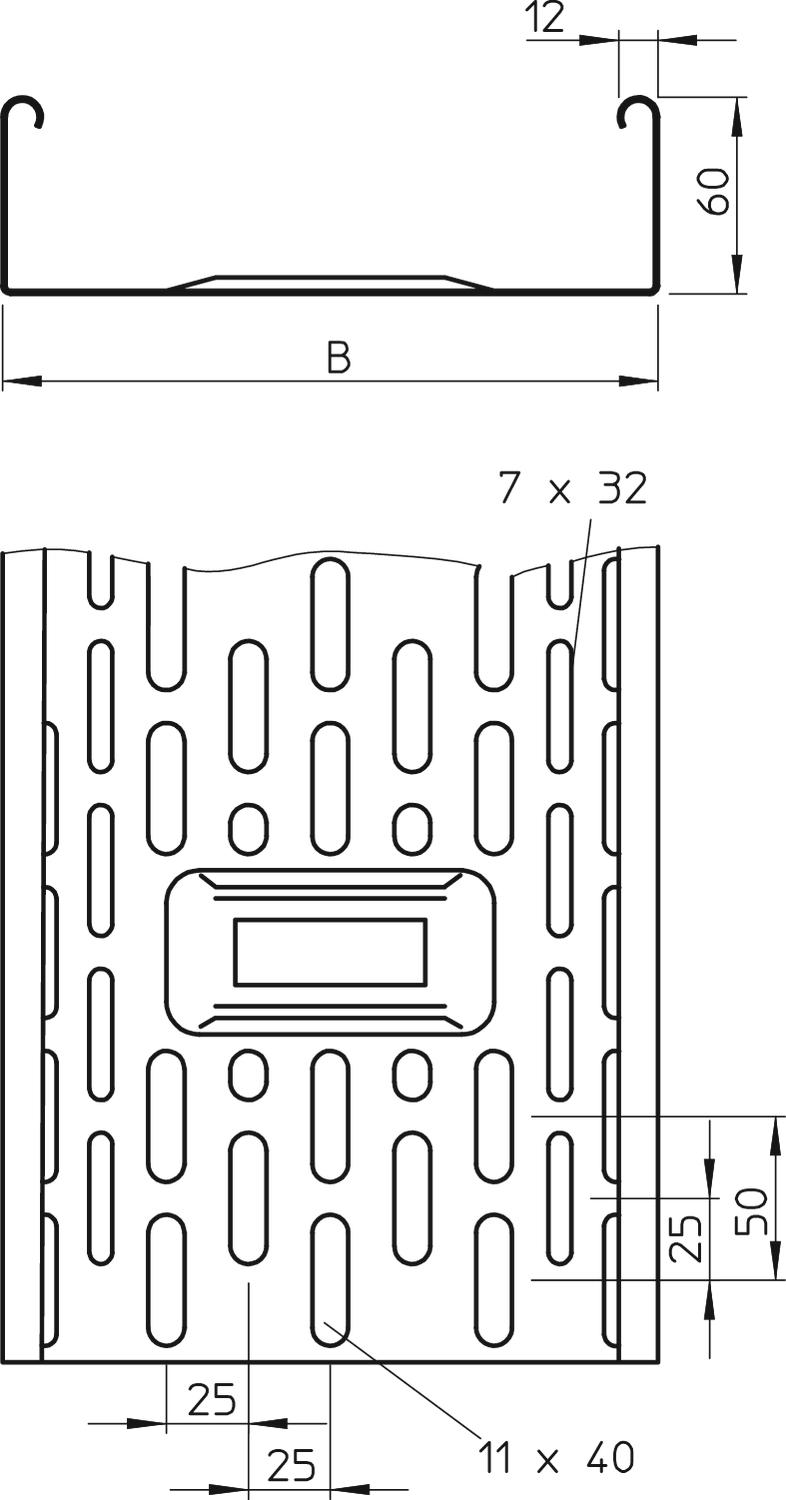

DKS 60 = perforated cable tray system with 60 mm side height.
Magnetic shield insulation without cover 20 dB, with cover 50 dB.

Technical data

Base perforation	1
Connector version	Without connectors
Dimension	60x100x3000
Dimension	60 x 100
Load test type according to IEC 61537	Type II
Maintain electrical functions	no
Material	Steel
Mounting perforation in base	yes
NATO hole pattern	no
Plate thickness	0,06 in

Plate thickness	1 mm
Rustproof steel, pickled	no
Side perforation	yes
Sprinkler system use	yes
Surface	Hot-dip galvanised
Type of connector, cable support system	Screwed
Usable cross-section	5800 mm²
Usable cross-section	58 cm²
Wide-span version	no
With cover	no

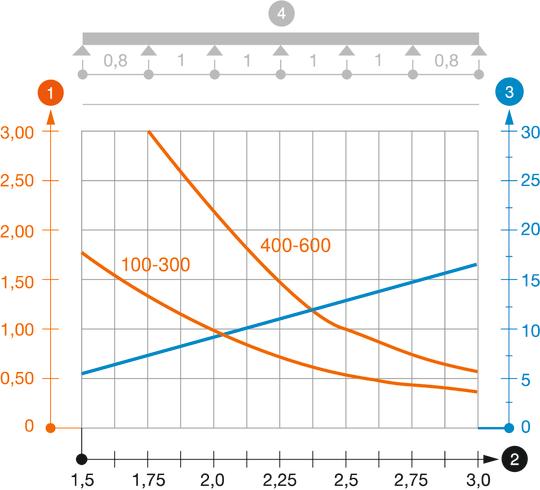

Support spacing 1.5 m	1,75 kN/m
Support spacing 2.0 m	0,95 kN/m

Support spacing 2.5 m	0,5 kN/m
Support spacing 3.0 m	0,4 kN/m

All types

Types	Length	Width	Plate thickness	Maintain electrical functions	Material	Surface	Item no.	Quantity	SSU
DKS 610 FT	3000 mm	100 mm	1 mm	no	Steel	Hot-dip galvanised	6085326	m	3 m
DKS 620 FT	3000 mm	200 mm	1 mm	no	Steel	Hot-dip galvanised	6085342	m	3 m
DKS 630 FT	3000 mm	300 mm	1 mm	no	Steel	Hot-dip galvanised	6085369	m	3 m
DKS 640 FT	3000 mm	400 mm	1.5 mm	no	Steel	Hot-dip galvanised	6085512	m	3 m
DKS 650 FT	3000 mm	500 mm	1.5 mm	no	Steel	Hot-dip galvanised	6085539	m	3 m
DKS 660 FT	3000 mm	600 mm	1.5 mm	no	Steel	Hot-dip galvanised	6085555	m	3 m
