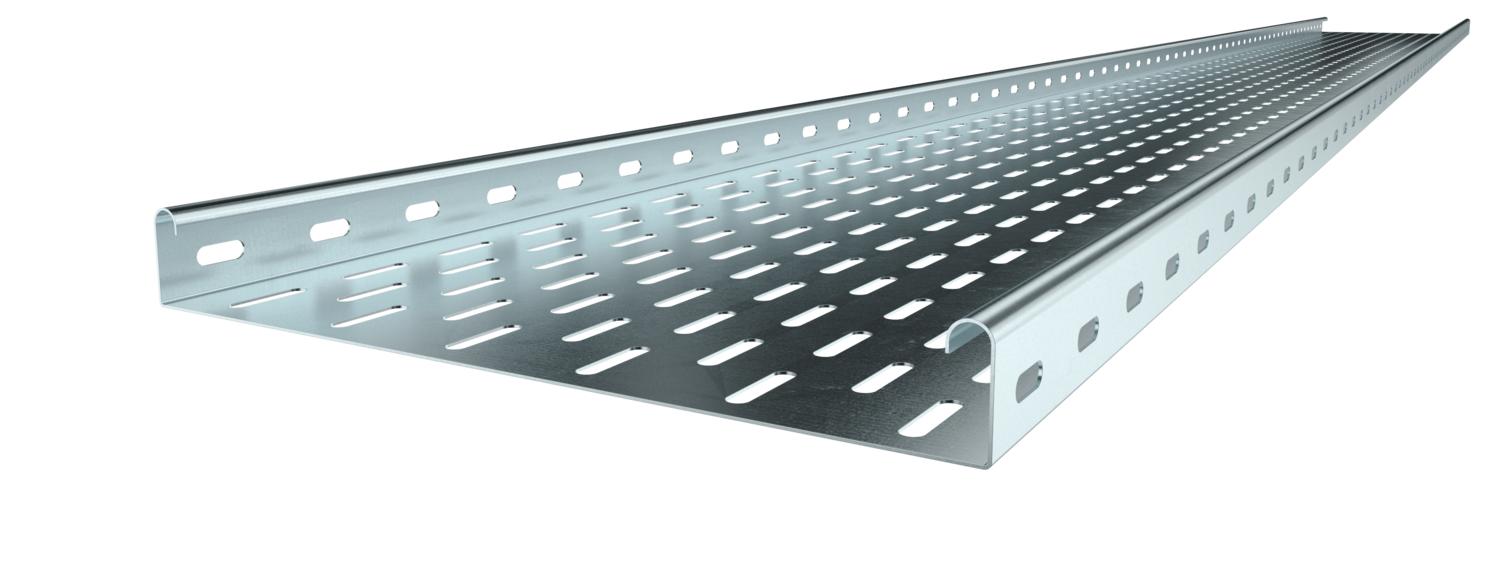

MKS 35 = Medium duty cable tray system with a side height of 35 mm.
Magnetic shield insulation without cover 20 dB, with cover 50 dB.
- Technical data
-
Technical data
Base perforation 1 Connector version Supplied connectors Dimension 35x50x3000 Maintain electrical functions no Material Steel Mounting perforation in base yes NATO hole pattern no Plate thickness 1 mm Plate thickness 0,04 in Rustproof steel, pickled no Side perforation yes Surface Strip galvanized Type of connector, cable support system Screwed Usable cross-section 16 cm² Usable cross-section 1600 mm² Wide-span version no With cover no Dimensions
Dimension B 50 mm Height 35 mm Length 3000 mm Length 10 ft Width 50 mm Width 2 in Loads
Support spacing 1.0 m 1,9 kN/m Support spacing 1.5 m 0,85 kN/m Support spacing 2.0 m 0,55 kN/m Support spacing 2.5 m 0,3 kN/m Support spacing 3.0 m 0,15 kN/m Technical data
Load diagram, cable tray, type MKS 35
- Permitted cable tray/ladder load in kN/m without man load
- Support width in m
- Rail bend in mm at permitted kN/m
- Load scheme during testing
- Load curve with cable tray/ladder width in mm
- Strut bend curve according to support width
- All types
-
All types
- Downloads
-
Data sheet MKS 305 FS / 6053513 , 0.64MB , pdfDeclaration of conformity MKS 305 FS / 6053513 , 0.17MB , pdfUK Declaration of Conformity MKS 305 FS / 6053513 , 0.14MB , pdfREACH Declaration of conformity MKS 305 FS / 6053513 , 0.12MB , pdfRoHS Declaration of conformity MKS 305 FS / 6053513 , 0.12MB , pdfSustainability report Sustainability report, cable support systems , 2.00MB , pdf
