Note: This article is discontinued.

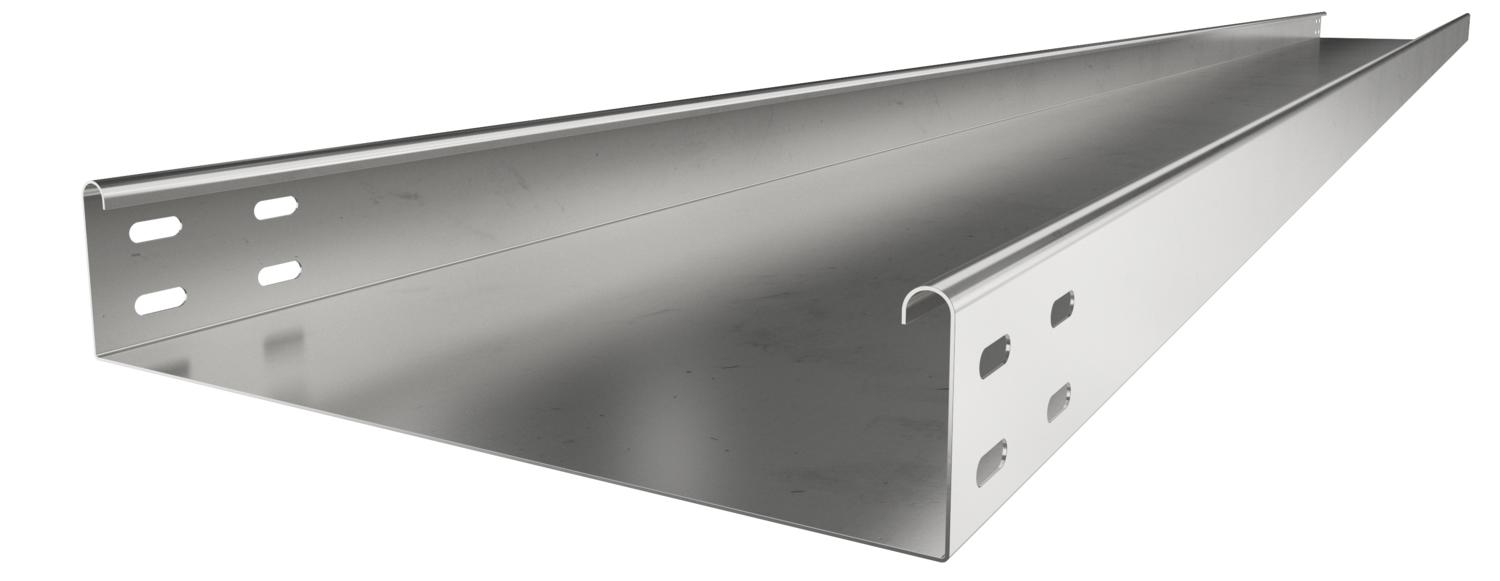

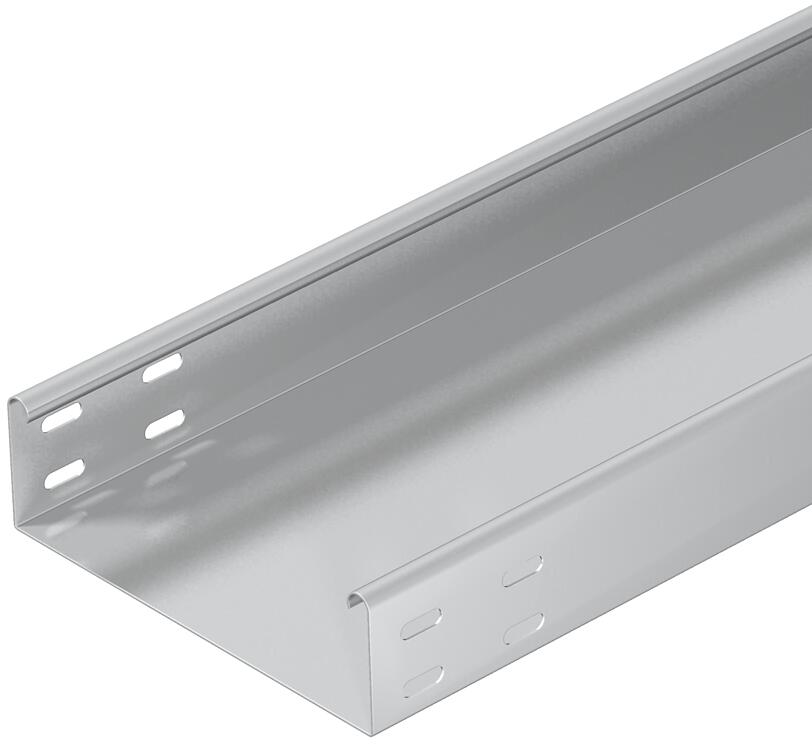

Cable tray MKSU 60 A2

Item no. / Types	6063861 / MKSU 650 A2

Length	3000 mm

Width	500 mm

Plate thickness	1 mm

Maintain electrical functions	no

Material	Stainless steel 1.4301

Surface	Bright, treated

Product description

Product description

MKSU 60 = Medium-duty cable tray system, unperforated, with a side height of 60 mm.
Magnetic shield insulation without cover 20 dB, with cover 50 dB.

The cable tray has connector perforations on both sides.

Connecting parts should be ordered separately and in the appropriate quantity.

Technical data

CO2 Footprint (GWP) Cradle-to-Gate	25,0267 kg CO₂e / 1 Meter
Connector version	Without connectors
Dimension	60 x 500
Dimension	60x500x3000
Dimension B	500 mm
Height	60 mm
Height	2 in
Length	10 ft
Length	3000 mm
Load test type according to IEC 61537	Type II
Maintain electrical functions	no
Material	Stainless steel 1.4301
Mounting perforation in base	no
NATO hole pattern	no
Plate thickness	1 mm

Plate thickness	0,04 in
Rustproof steel, pickled	no
Side perforation	no
Support spacing 1.5 m	1,5 kN/m
Support spacing 1.75 m	1,25 kN/m
Support spacing 2.0 m	1 kN/m
Support spacing 2.5 m	0,5 kN/m
Surface	Bright, treated
Type of connector, cable support system	Screwed
Usable cross-section	29800 mm²
Usable cross-section	298 cm²
Wide-span version	no
Width	500 mm
Width	20 in
With cover	no
