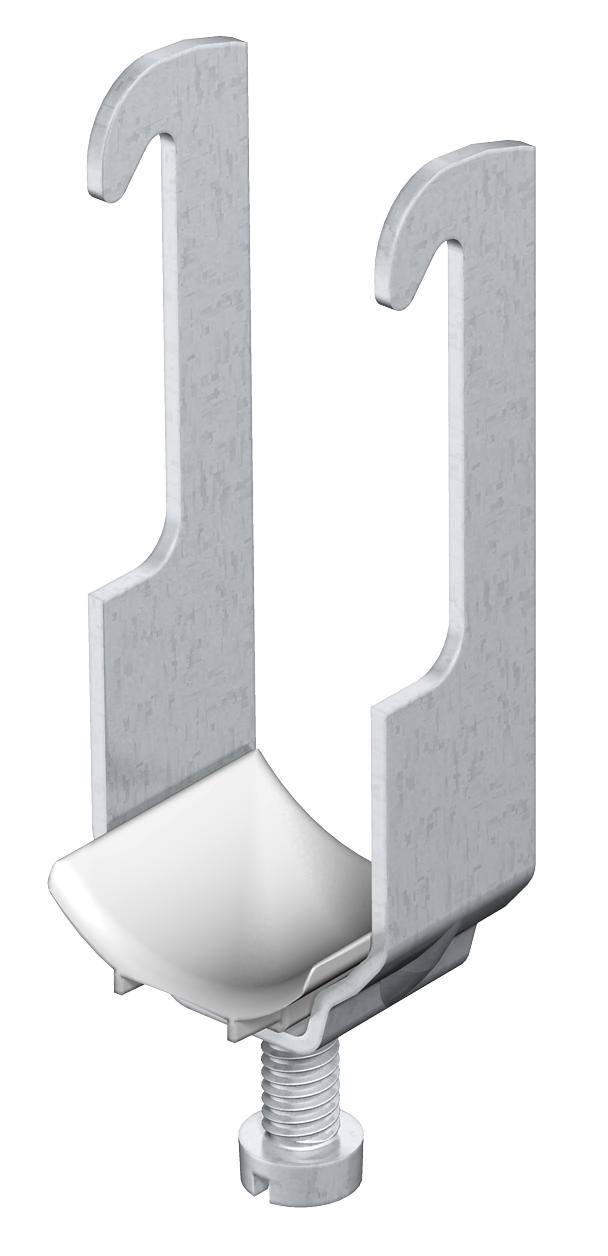

Clamp clip, single, ALU plastic pressure trough
Item no. 1184024 | EAN 4012195446354
- Product description
-
Product descriptionAlso suitable for angular steel of 40 mm shaft length; aluminium ALMg3 clip and bolt, polypropylene pressure trough, halogen-free, colour light grey RAL 7035.
The clamp clips 2056/W ALU for one cable according to VDE 0298-1 is suitable for individual routing of single-wire cables in rotary current networks, as there is no closed galvanic circuit. However, the lower mechanical resistance of the aluminium clips must be taken into account for short circuits, i.e. keep the distance between the clips as short as possible in a longitudinal direction and ensure sufficient side spacing between the cables.
-
- Technical data
-
Technical data

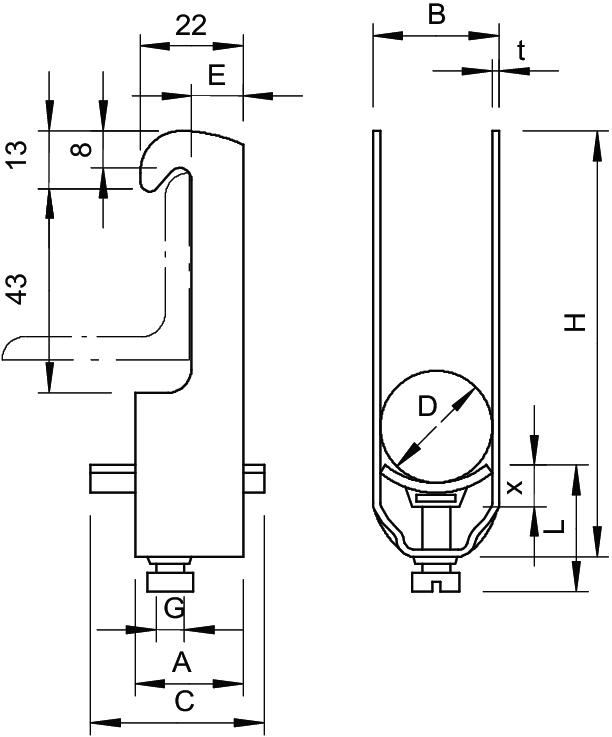

Clamping range D, max. 22 mm Clamping range D, min. 16 mm CO2 Footprint (GWP) Cradle-to-Gate 0,2995 kg CO₂e / 1 Piece Dimension 16-22mm Dimension A 23 mm Dimension B 27 mm Dimension C 34 mm Dimension E 11 mm Dimension G (mm) M6 Dimension H 85 mm Dimension L 27 mm Dimension t 1,5 mm Dimension x 5 mm for 1 cable H 85 mm for 1 cable L 27 For pipe diameter, max. 20 mm For pipe diameter, min. 20 mm Halogen-free yes Impact-resistant no Material Aluminium Material addition Aluminium Material of trough Plastic Material quality of trough Polypropylene Max. Tightening torque 2 Nm Mounting type Angle profile Number of cables/pipes 1 Surface addition Untreated With counter-trough no With metal trough no With plastic trough yes - All types
