Note: This article is discontinued.

Clamp clip, single, plastic pressure trough, A2 58 | 64 | 5

Clamp clip, single, plastic pressure trough, A2

Item no. 1159607 | EAN 4012195064152

Item no. / Types

Clamping range D, min.

Clamping range D, max.

Max. Tightening torque	5 Nm

Product description

Product description

Suitable for all C profile rails with slot width 16–17 mm.
Stainless steel clip and bolt.
Polypropylene pressure trough, halogen-free, colour light grey RAL 7035.

Technical data

Technical data

Clamping range D, max.	64 mm
Clamping range D, min.	58 mm
CO2 Footprint (GWP) Cradle-to-Gate	0,7802 kg CO₂e / 1 Piece

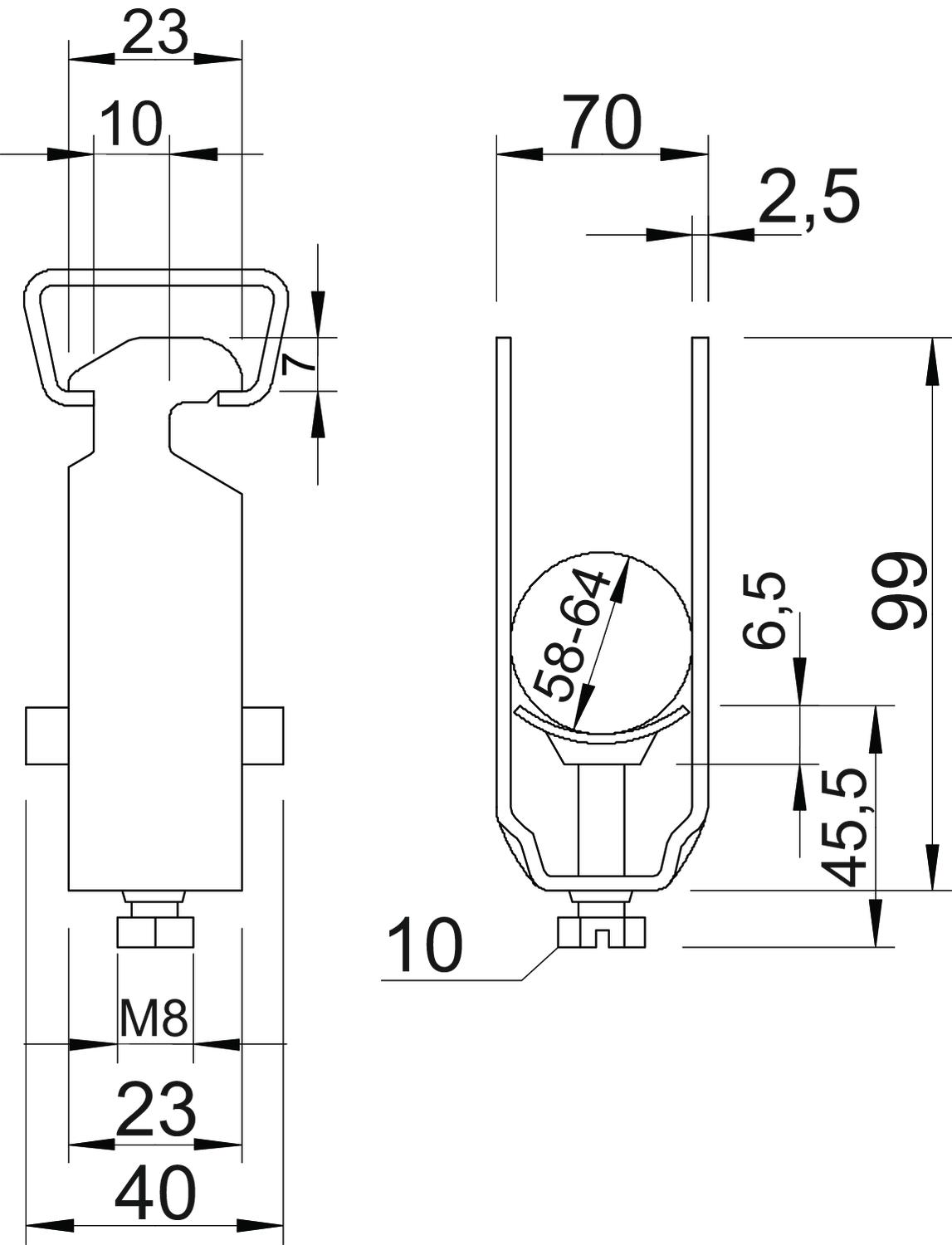

Dimension	58-64mm
Dimension A	23 mm
Dimension B	70 mm
Dimension C	40 mm
Dimension G (mm)	M8
Dimension H	99 mm
Dimension L	45,5 mm
Dimension t	2,5 mm
Dimension x	6,5 mm
For pipe diameter, max.	63 mm
For pipe diameter, min.	63 mm
for rail with slot width (with interval), max.	17 mm

for rail with slot width (with interval), min.	16 mm
Halogen-free	yes
Impact-resistant	no
Material	Stainless steel 1.4301
Material addition	Steel
Material of trough	Plastic
Material quality of trough	Polypropylene
Max. Tightening torque	5 Nm
Mounting type	Profile rail
Number of cables/pipes	1
Surface	Bright, treated
Surface addition	hot galvanised
With counter-trough	no
With metal trough	no
With plastic trough	yes
