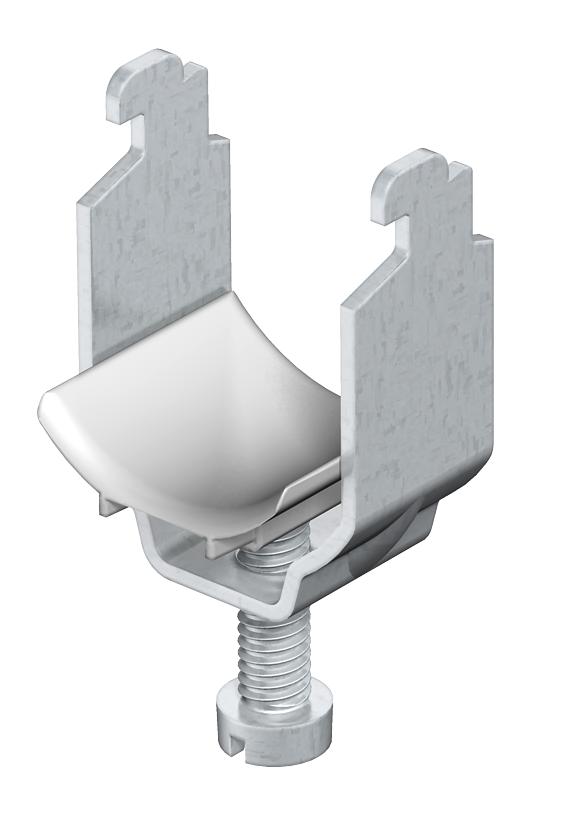

Clamp clip, single, plastic pressure trough, ALU 16 | 22 | 2

Clamp clip, single, plastic pressure trough, ALU

Item no. 1183621 | EAN 4012195436638

Item no. / Types

Clamping range D, min.

Clamping range D, max.

Max. Tightening torque	2 Nm

Product description

Product description

Suitable for all profile rails with slot width 11–12 mm; at least 6.5 mm clear internal height and at least 18.5 mm clear internal width; aluminium ALMg3 clip and bolt, polypropylene pressure trough, halogen-free, light grey RAL 7035.
(Metal pressure troughs on request).

The clamp clips 2056/N ALU for one cable according to VDE 0298-1 is suitable for individual routing of single-wire cables in rotary current networks, as there is no closed galvanic circuit. However, the lower mechanical resistance of the aluminium clips must be taken into account for short circuits, i.e. keep the distance between the clips as short as possible in a longitudinal direction and ensure sufficient side spacing between the cables.

Technical data

Technical data

Clamping range D, max.	22 mm
Clamping range D, min.	16 mm
CO2 Footprint (GWP) Cradle-to-Gate	0,1714 kg CO₂e / 1 Piece

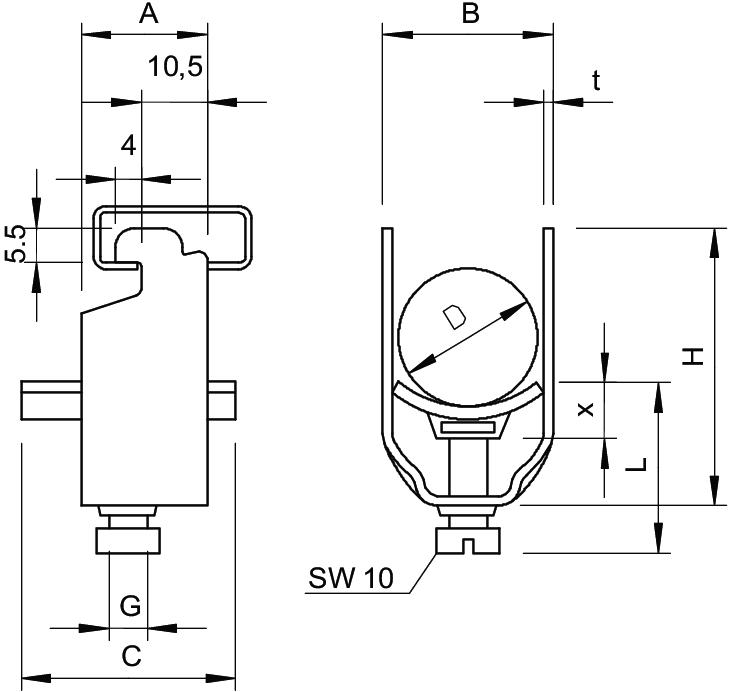

Dimension	16-22mm
Dimension A	20 mm
Dimension B	27 mm
Dimension C	34 mm
Dimension G (mm)	M6
Dimension H	44 mm
Dimension L	41 mm
Dimension t	1,5 mm
Dimension x	5 mm
for 1 cable H	44 mm
for 1 cable L	34
For pipe diameter, max.	20 mm
For pipe diameter, min.	20 mm

for rail with slot width (with interval), max.	12 mm
for rail with slot width (with interval), min.	11 mm
Halogen-free	yes
Impact-resistant	no
Material	Aluminium
Material addition	Aluminium
Material of trough	Plastic
Material quality of trough	Polypropylene
Max. Tightening torque	2 Nm
Mounting type	Profile rail
Number of cables/pipes	1
Surface addition	Untreated
With counter-trough	no
With metal trough	no
With plastic trough	yes

All types

All types

Types	Clamping range D, min.	Clamping range D, max.	Max. Tightening torque	Item no.	Quantity	SSU
2056N 22 ALU	16 mm	22 mm	2 Nm	1183621	piece	50 piece
2056N 28 ALU	22 mm	28 mm	2 Nm	1183648	piece	50 piece
2056N 34 ALU	28 mm	34 mm	2 Nm	1183656	piece	50 piece
2056N 40 ALU	34 mm	40 mm	2 Nm	1183664	piece	50 piece
2056N 46 ALU	40 mm	46 mm	2 Nm	1183672	piece	50 piece
2056N 58 ALU	52 mm	58 mm	2 Nm	1183699	piece	50 piece
