Note: This article is discontinued.

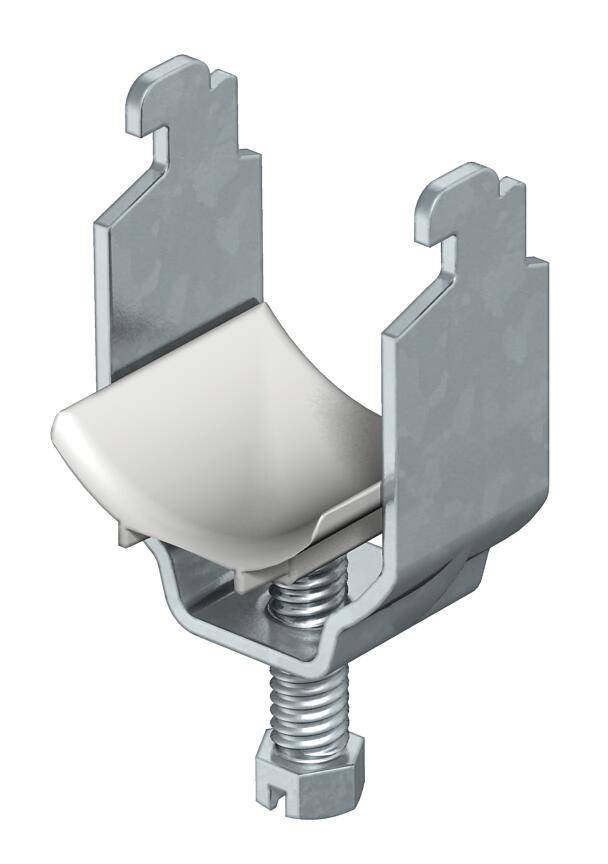

Clamp clip, single, plastic pressure trough, FT
Item no. 1163124 | EAN 4012195067399
- Product description
-
Product descriptionSuitable for all C profile rails with slot width 11–12 mm; at least 6.5 mm clear internal height and at least 18.5 mm clear internal width.
Clip and bolt made of hot-dip galvanised steel.
Polypropylene pressure trough, halogen-free, colour light grey RAL 7035.
Version with welding and/or locknuts for use under difficult circumstances and for shake protection on request.
-
- Technical data
-
Technical data

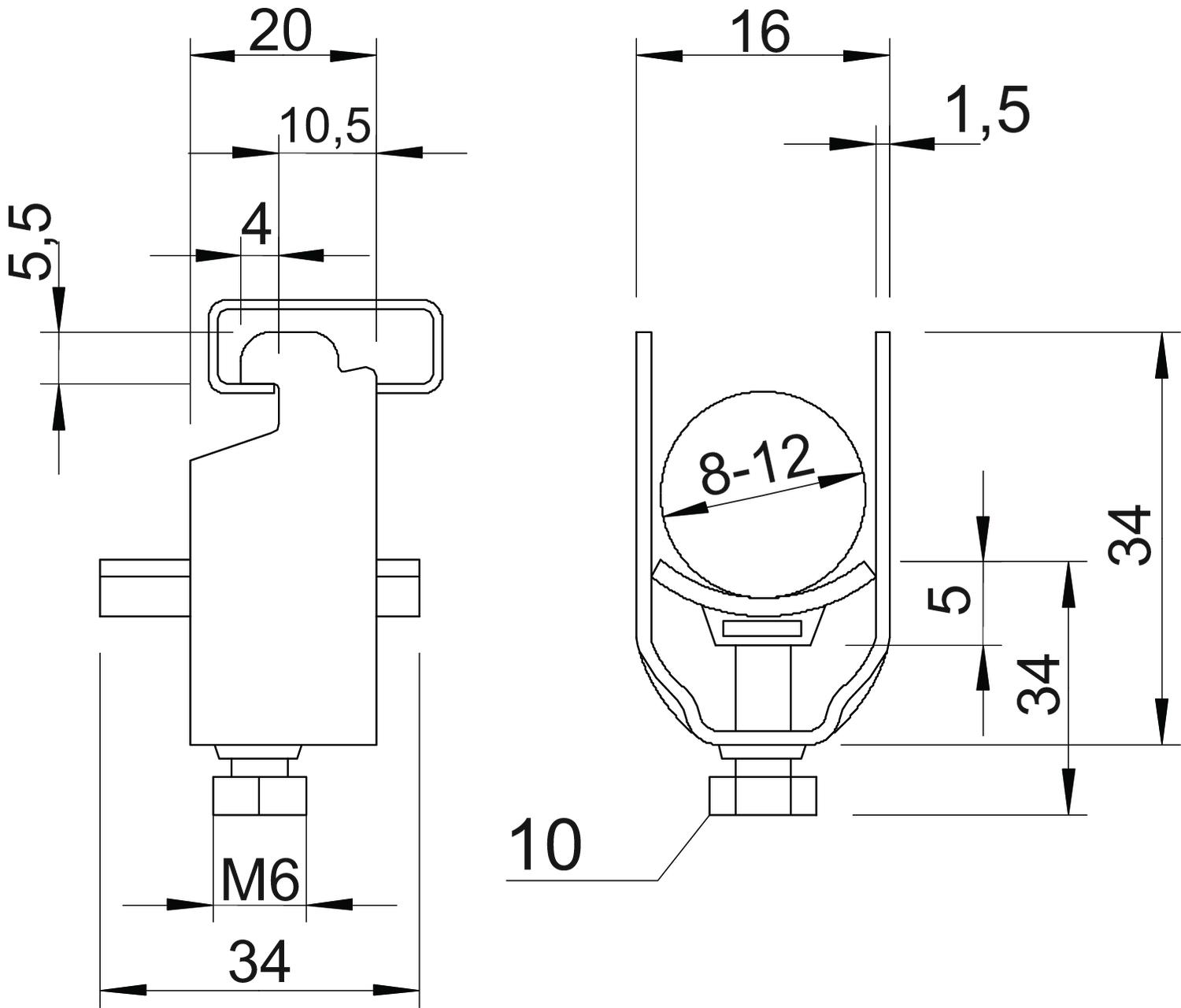

Clamping range D, max. 12 mm Clamping range D, min. 8 mm CO2 Footprint (GWP) Cradle-to-Gate 0,0537 kg CO₂e / 1 Piece Dimension 8-12mm Dimension A 20 mm Dimension B 16 mm Dimension C 34 mm Dimension G (mm) M6 Dimension H 34 mm Dimension L 34 mm Dimension t 1,5 mm Dimension x 5 mm for 1 cable H 34 mm for 1 cable L 34 for 2 cable H 49 mm for 2 cable L 47 mm for 3 cable H 65 mm for 3 cable L 47 mm for rail with slot width (with interval), max. 12 mm for rail with slot width (with interval), min. 11 mm Halogen-free yes Impact-resistant no Material Steel Material addition Steel Material of trough Plastic Material quality of trough Polypropylene Max. Tightening torque 3 Nm Mounting type Profile rail Number of cables/pipes 1 Surface Hot-dip galvanised Surface addition hot galvanised With counter-trough no With metal trough no With plastic trough yes - All types
