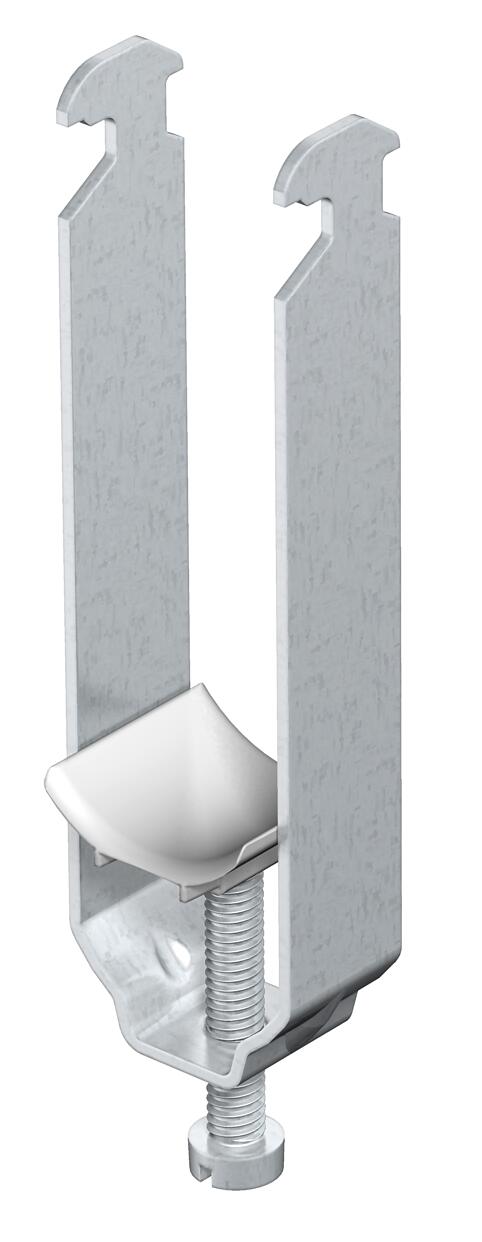

Clamp clip, triple, ALU plastic pressure trough
Item no. 1183524 | EAN 4012195436218
- Product description
-
Product descriptionSuitable for all C profile rails with 16–17 mm slot width; aluminium ALMg 3 clamp and bolt, polypropylene pressure sleeve, halogen-free, colour light grey RAL 7035.
(Metal pressure troughs on request.)
The clamp clips 2056/ALU, in the version for one cable according to VDE 0298-1, are suitable for individual routing of single-wire cables in rotary current networks, as there is no closed circuit. However, the lower mechanical resistance of the aluminium clips must be taken into account for short circuits, i.e. keep the distance between the clips as short as possible in a longitudinal direction and ensure sufficient side spacing between the cables.
-
- Technical data
-
Technical data

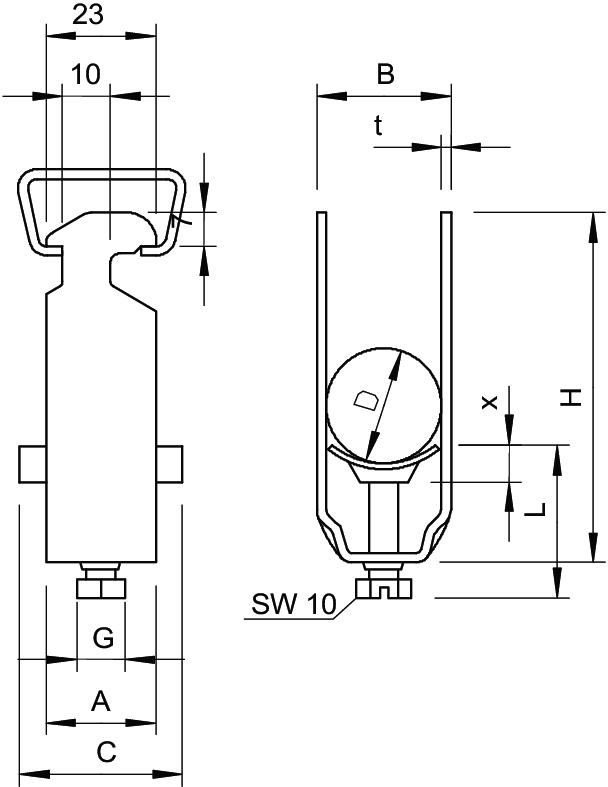

Clamping range D, max. 22 mm Clamping range D, min. 16 mm CO2 Footprint (GWP) Cradle-to-Gate 0,3345 kg CO₂e / 1 Piece Dimension 16-22mm Dimension A 23 mm Dimension B 27 mm Dimension C 34 mm Dimension G (mm) M6 Dimension H 101 mm Dimension L 47 mm Dimension t 1,5 mm Dimension x 5 mm for rail with slot width (with interval), max. 17 mm for rail with slot width (with interval), min. 16 mm Halogen-free yes Impact-resistant no Material Aluminium Material addition Steel Material of trough Plastic Material quality of trough Polypropylene Max. Tightening torque 2 Nm Mounting type Profile rail Number of cables/pipes 3 Surface addition hot galvanised With counter-trough no With metal trough no With plastic trough yes - All types
