Combination arrester, 3-pole with function display
Item no. 5096835 | EAN 4012195288282
- Product description
-
Product description

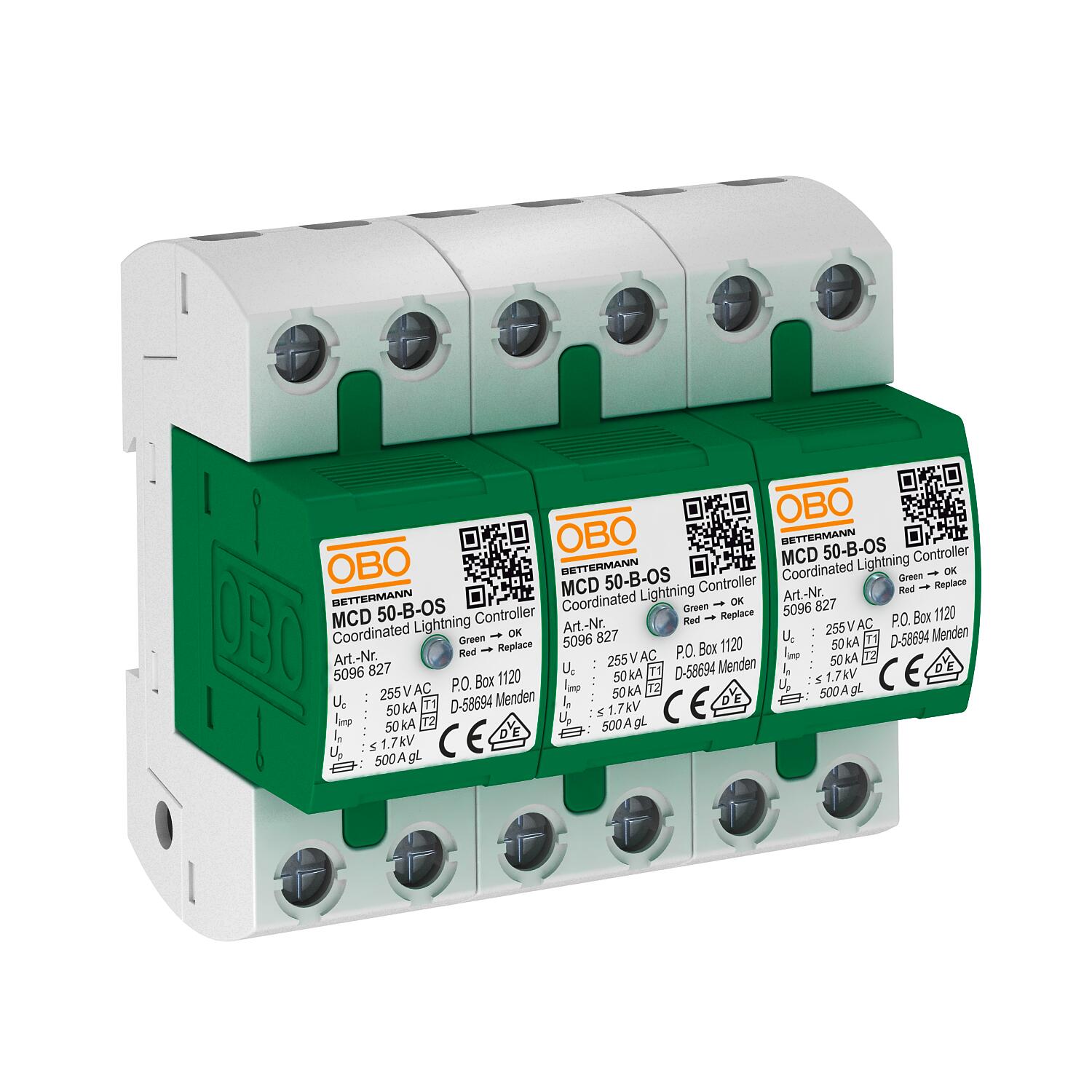

Combination arrester set, type 1+2, 3-pole, with visual function display, for use in TN-C networks:
Completely pre-terminated and ready for connection, consisting of:
3 x MCD 50-B-OS: Type 1+2 coordinated lightning current arresters to DIN EN 61643-11. For interface 0 to 2 (LPZ) in accordance with lightning protection zone concept to IEC 62305 and/or VDE 0185-305.
• Lightning protection equipotential bonding to VDE 0185-305 (IEC 62305)
• Lightning current arresting capacity to 50 kA (10/350) per pole and up to 150 kA (10/350) in total
• Protection level < 1.7 kV allows device protection
• Short-circuit resistance 10 kA, arrester backup fuse to 500 A gL/gG
• Power consumption < 26 mW/pole
• Encapsulated, non-extinguishing spark gaps
Application: Industrial systems and buildings with external lightning protection of Classes I to IV.
-
- Technical data
-
Technical data
Approvals VDE Blow-out no Cable type for surge protection devices Power cable AV Conductor cross-section, rigid (single-wire/multiwire), max. 50 mm² DC network form no Dimension 255V Installation type DIN rail 35 mm IT network form no Lightning protection zone LPZ 0→2 Lightning surge current (10/350 μs) 50 kA Lightning surge current (10/350) 150 kA Maximum back-up fuse 500 A Maximum continuous voltage (L-N) 255 V Maximum continuous voltage AC 255 Network form TN-C Nominal discharge current (8/20 µs) 50 kA Nominal discharge current (8/20 µs) [L-N] 50 kA Nominal voltage AC (50/60 Hz) 230 V OBO_Nominal load current (input/output terminal) 125 A Operating temperature, max. 85 °C Operating temperature, min. -40 °C Other network form no Pole number 1 Pole version 3 Protection rating IP20 Remote signalling no Response time <100 ns Short-circuit resistance 10 kA Signalling on device Visual SPD to EN 61643-11 Type 1+2 SPD to IEC 61643-1 Class I+II Test class, type 1 yes Test class, type 2 yes TN network form yes TN-C network form yes TN-C-S network form no TN-S network form no TT network form no Version for 3-pole Dimensions

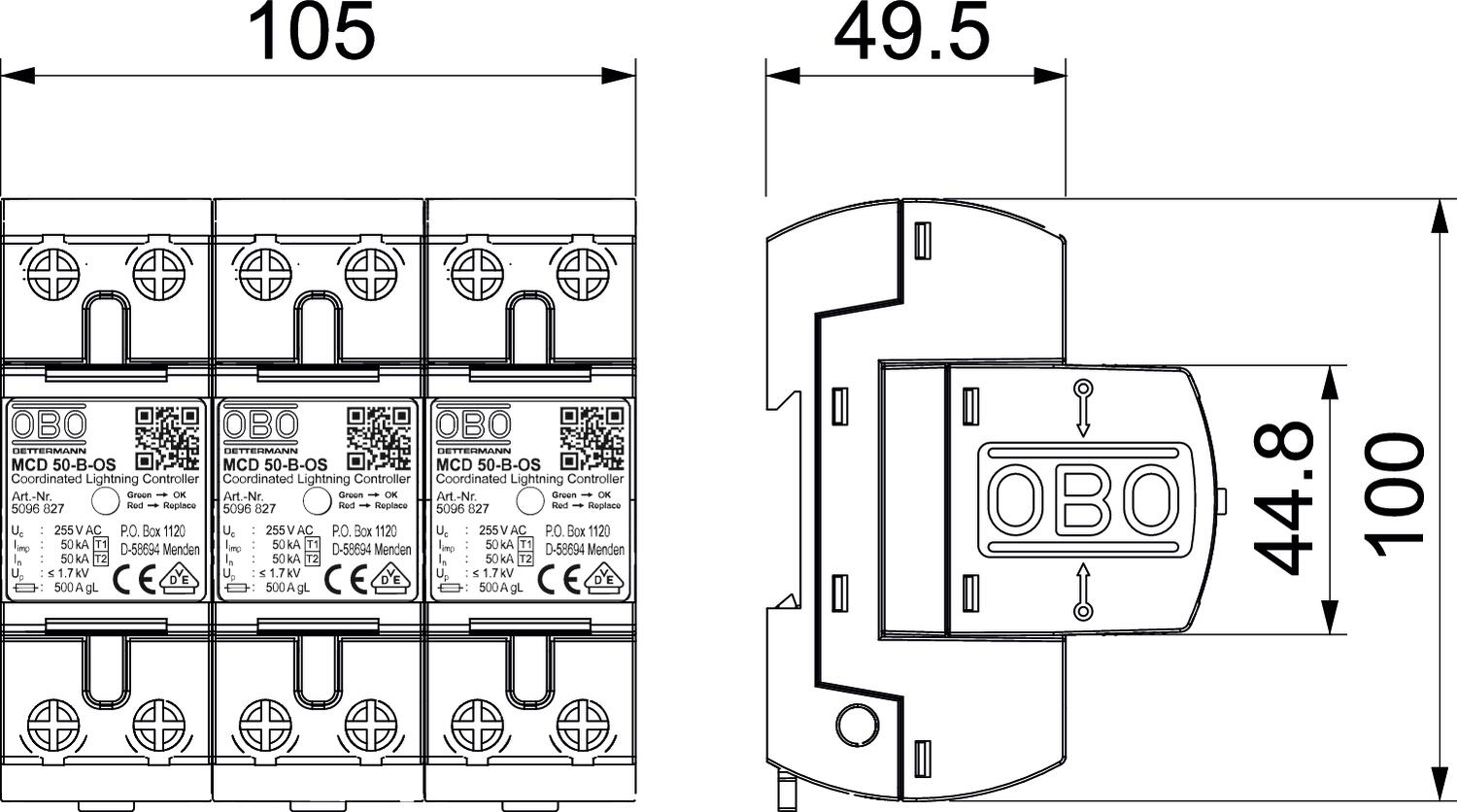

Height 69 mm Length 100 mm Width 105 mm Connectivity options
Arrester surge current (8/20 µs) [total] 150 kA Conductor cross-section, rigid (single-wire/multiwire), min. 10 mm² Max. mains-side overcurrent protection 500 Protection level [L-N] ≤1,7 Short-circuit resistance for max. mains-side overcurrent protection 10 kA - All types
