Note: This article is discontinued.

Connection strap for Parex spark gap 13 | For M12 bolt

morepic-1

morepic-2

Connection strap for Parex spark gap

Item no. 5240328 | EAN 4012195413295

Item no. / Types	5240328 / 485 M12

Drill hole diameter, min.	13 mm

Version for	For M12 bolt

Product description

Product description

Attaching flange for installing OBO Parex spark gap 480 on insulating flanges.

Technical data

Technical data

CO2 Footprint (GWP) Cradle-to-Gate	0,2295 kg CO2e / 1 Piece
Dimension	Ø13mm
Drill hole diameter, min.	13 mm

Material	Steel
Surface	Hot galvanized
Version for	For M12 bolt

All types

All types

Types	Drill hole diameter, min.	Version for	Item no.	Quantity	SSU
485 M12	13 mm	For M12 bolt	5240328	piece	2 piece

Downloads

Data sheet 485 M12 / 5240328 , 0.18MB , pdf

Guide Lightning protection guide , 2.10MB , pdf

Catalogue Surge protection , 28.42MB , pdf

REACH Declaration of conformity 485 M12 / 5240328 , 0.12MB , pdf

Download

RoHS Declaration of conformity 485 M12 / 5240328 , 0.13MB , pdf

Download

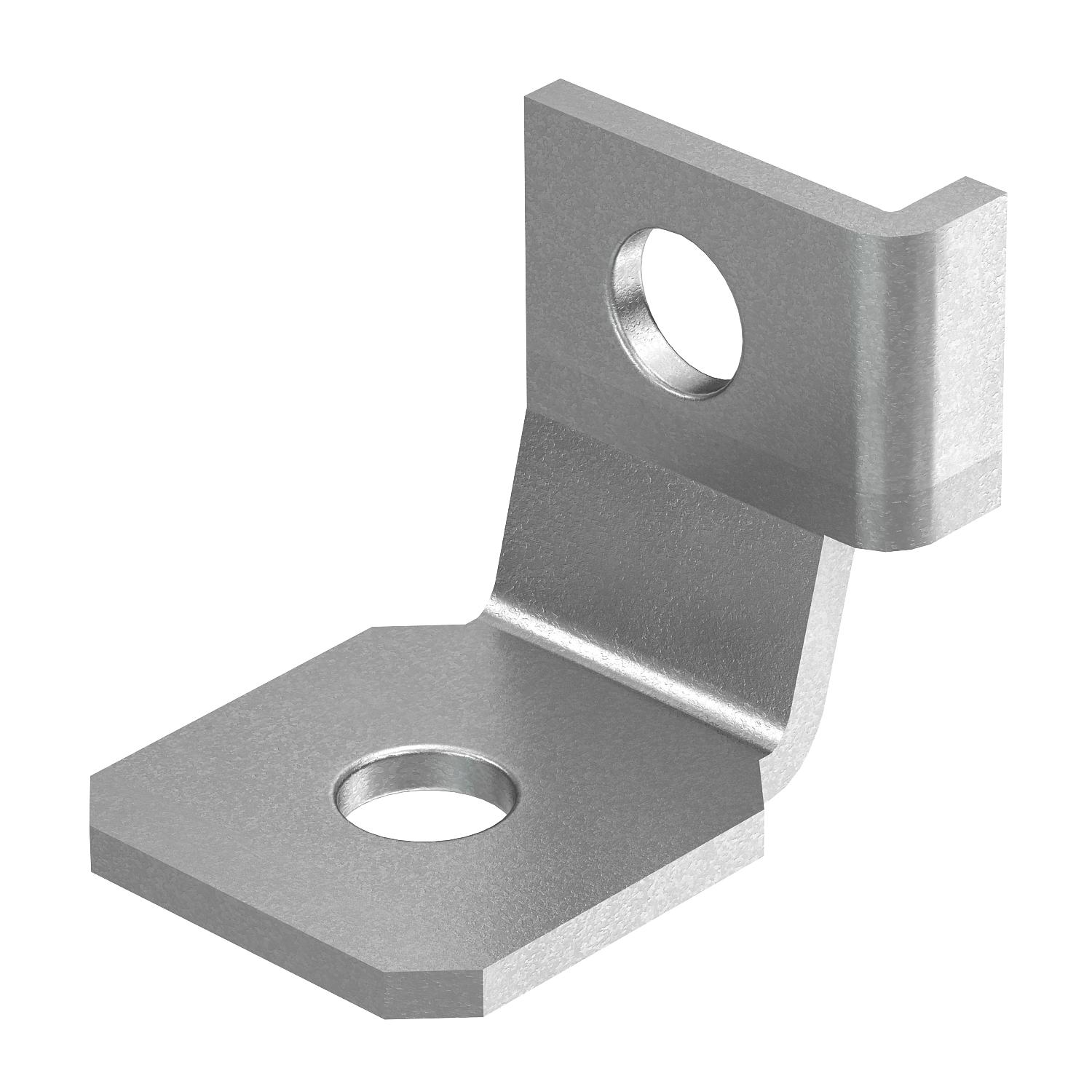

Product graphic 485 M12 / 5240328, 137.59 kB, jpg

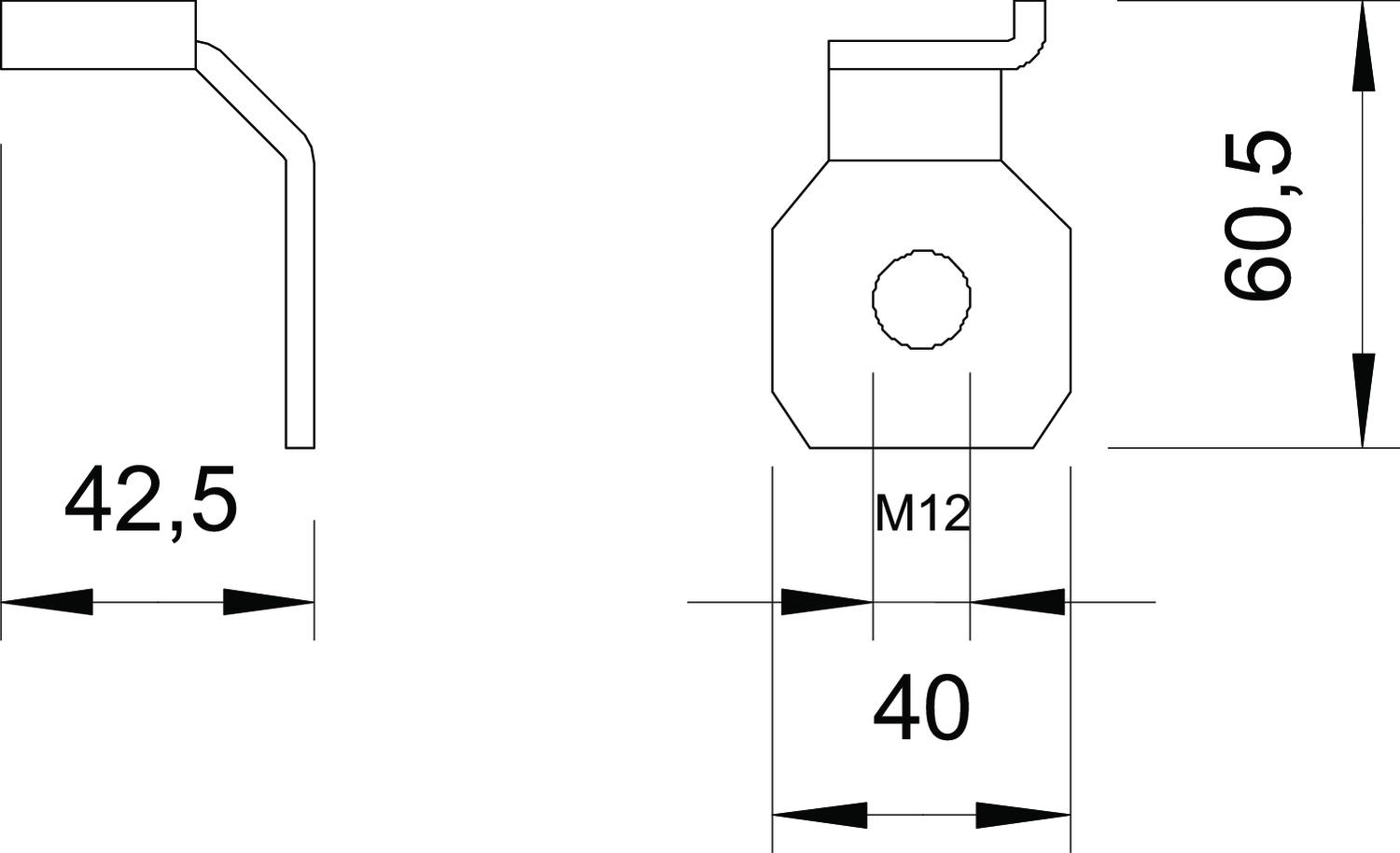

Scale drawing 485 M12 / 5240328, 44.24 kB, jpg

485 M12 / 5240328
