Note: This article is discontinued.
Cover for 90° bend A4
Item no. 7134988 | EAN 4012195866640
- Product description
-

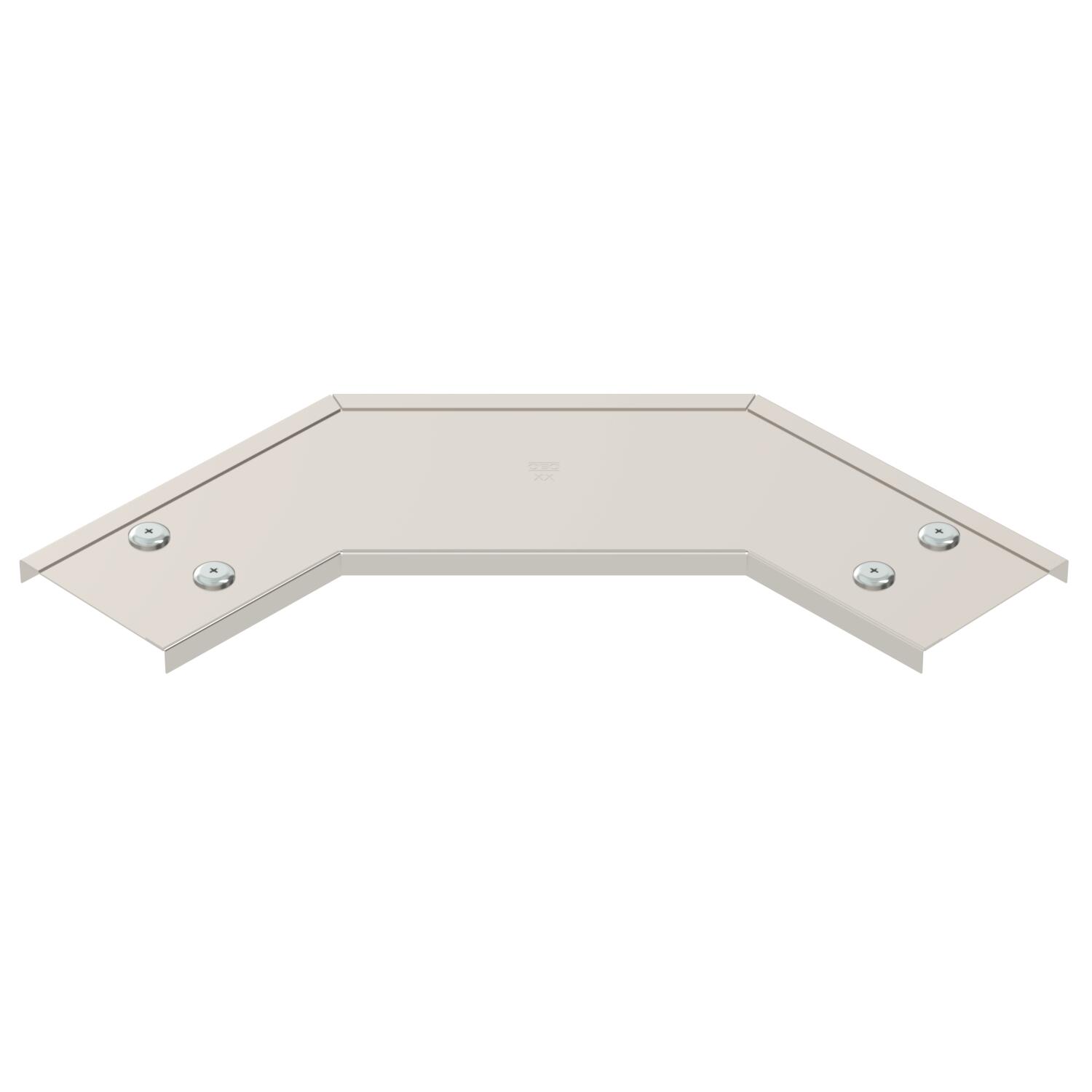

Product descriptionCover for 90° bend with pre-mounted turn buckles.
The cover can be used with fittings of all side heights.
The 100 mm width has a rectangular shape and does not correspond to the image.
-
- Technical data
-
Technical data

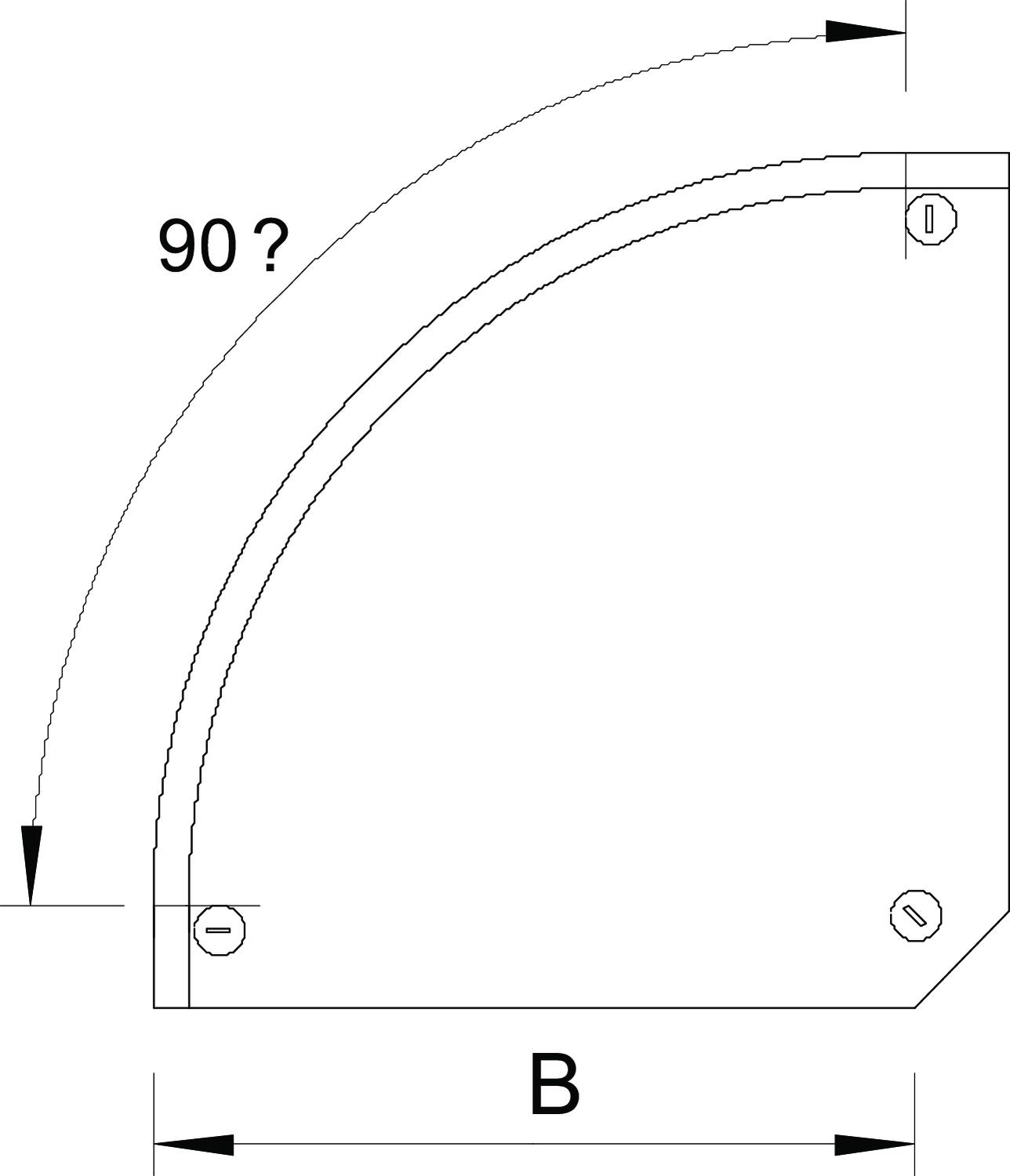

Bend (angle) 90° Change of direction Horizontal Dimension B200mm Dimension B 200 mm Fastening type Sash lock Height 35 mm Hinged no Maintain electrical functions no Material Stainless steel 1.4571 Plate thickness 1 mm Plate thickness 0,04 in Rustproof steel, pickled no Suitable for cable ladder yes Suitable for cable tray yes Suitable for mesh cable tray no Surface Bright, treated Width 8 in Width 200 mm - All types
- Downloads
-
Data sheet DFB 90 200 A4 / 7134988 , 0.18MB , pdfEU declaration of conformity DFB 90 200 A4 / 7134988 , 0.10MB , pdfREACH Declaration of conformity DFB 90 200 A4 / 7134988 , 0.12MB , pdfRoHS Declaration of conformity DFB 90 200 A4 / 7134988 , 0.13MB , pdfMounting instructions Mounting instructions Screw-on cable tray systems , 9.41MB , pdfMounting instructions General information on the mounting , 2.65MB , pdf
