Note: This article is discontinued.

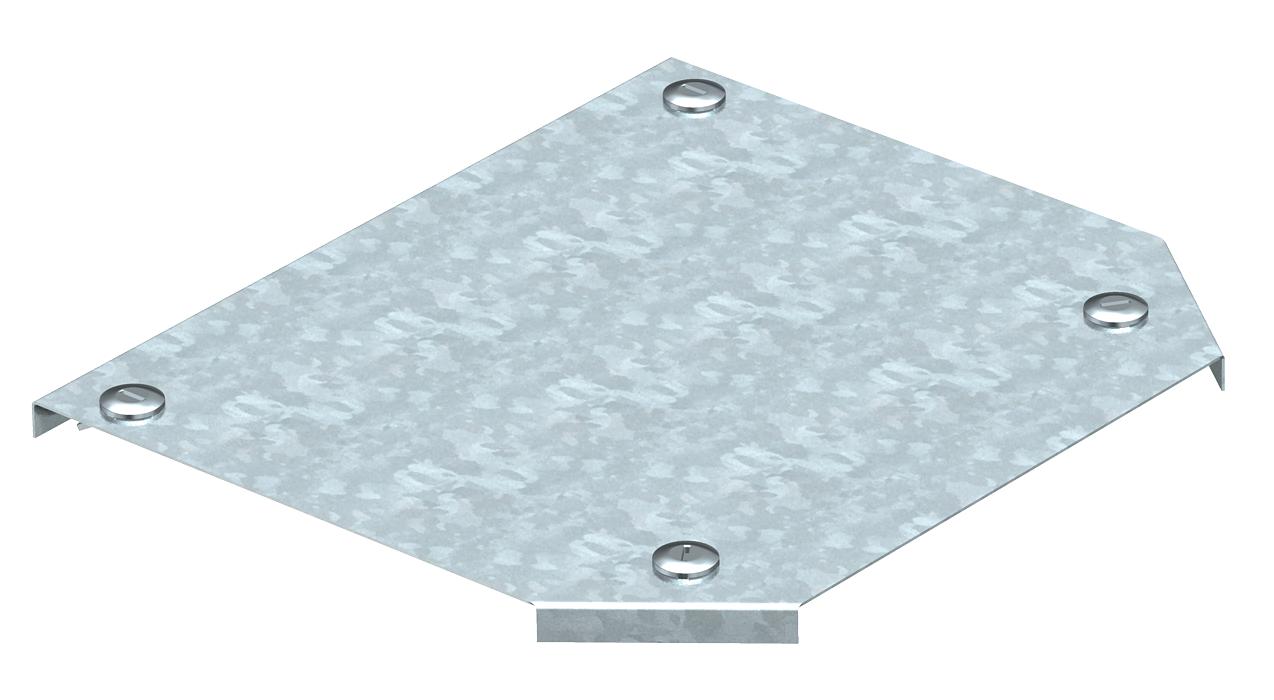

Cover for Tee FS
Item no. 7128223 | EAN 4012196526031
- Product description
-
Product descriptionCover for tee with pre-mounted turn buckle.
The cover can be used with fittings of all side heights.
-
- Technical data
-
Technical data

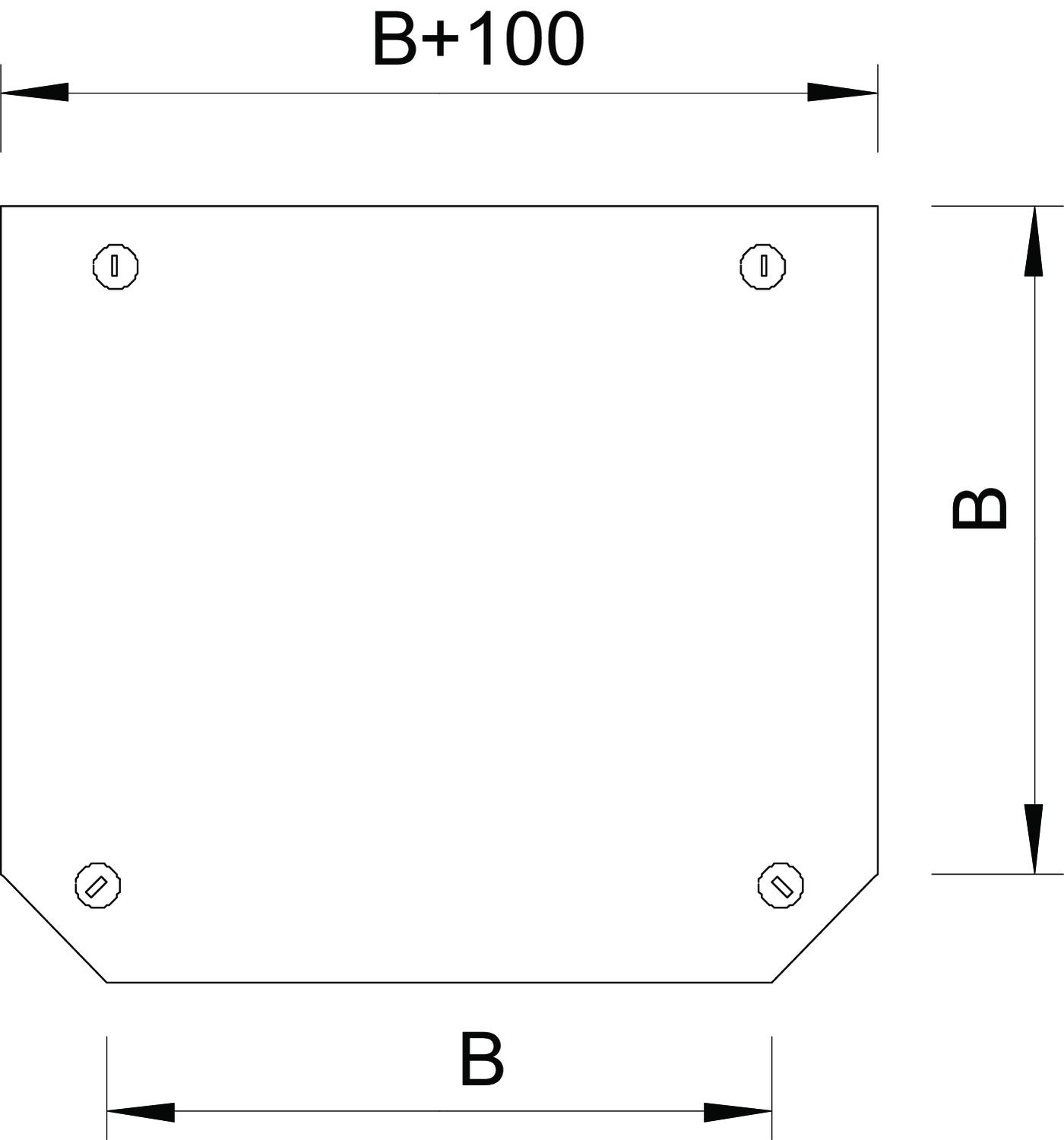

Dimension B150mm Dimension B 150 mm Dimension H 15 mm Fastening type Sash lock Height 35 mm Material Steel Material thickness 1 mm Number of turn buckles 4 St. Plate thickness 1 mm Rustproof steel, pickled no Suitable for cable ladder yes Suitable for cable tray yes Surface Strip galvanized Width 6 in Width 150 mm - All types
- Downloads
-
Data sheet DFT 150 FS / 7128223 , 0.20MB , pdfEU declaration of conformity DFT 150 FS / 7128223 , 0.10MB , pdfUK Declaration of Conformity DFT 150 FS / 7128223 , 0.09MB , pdfREACH Declaration of conformity DFT 150 FS / 7128223 , 0.27MB , pdfRoHS Declaration of conformity DFT 150 FS / 7128223 , 0.28MB , pdfMounting instructions Mounting instructions Screw-on cable tray systems , 9.41MB , pdfMounting instructions General information on the mounting , 2.65MB , pdf
