Note: This article is discontinued.
Cross-over 60 FT
Item no. 7113609 | EAN 4012196243853
- Product description
-

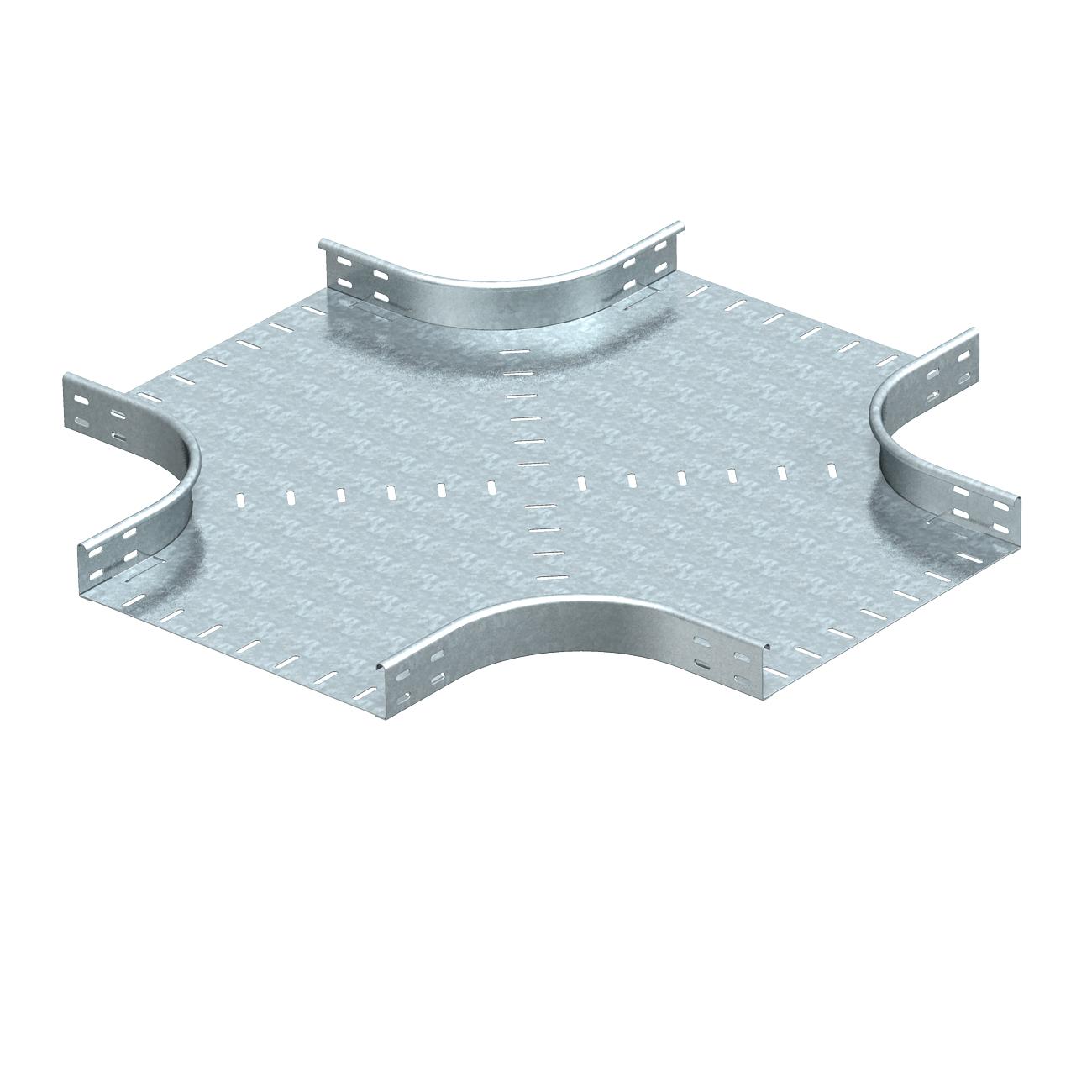

Product descriptionHorizontal cross-over for all cable tray types of 60 mm side height.

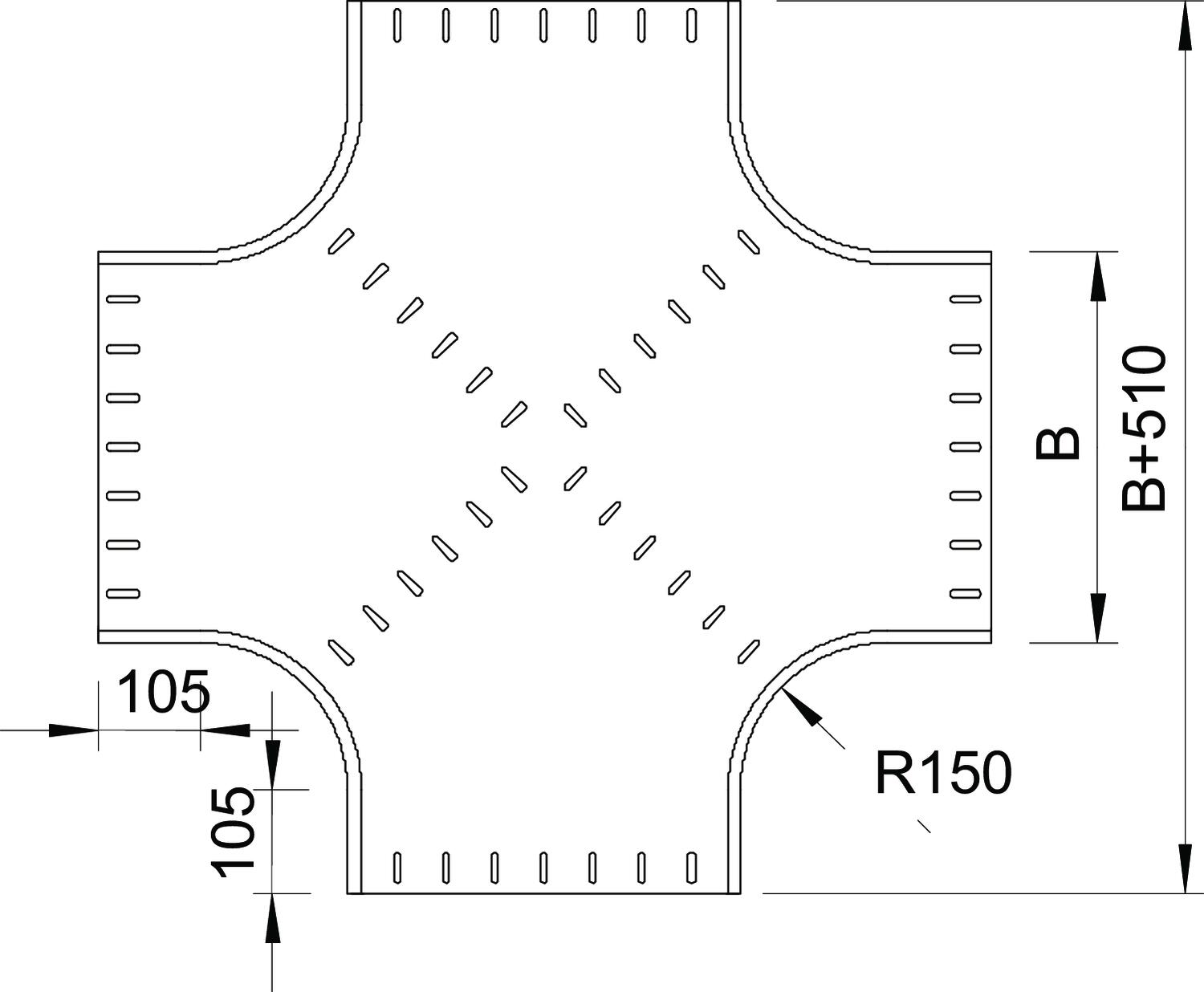

Fitting in round design. The interior radius of the fitting is 150 mm. All the sides are designed for the same cable tray width.
Fastening materials should be ordered separately.
-
- Technical data
-
Technical data
Bend (angle) 90° Change of direction Horizontal Colour zinc Dimension 60x600 Dimension B 600 mm Dimension R 150 mm Height 60 mm Height 2 in Maintain electrical functions no Material Steel Material thickness, floor plate 1,5 mm Rail thickness 1,25 mm Rustproof steel, pickled no Surface Hot-dip galvanised Type of connector, cable support system Screwed Wide-span version no Width 24 in Width 600 mm - All types
- Downloads
-
Data sheet RK 660 FT / 7113609 , 0.18MB , pdfEU declaration of conformity RK 660 FT / 7113609 , 0.10MB , pdfREACH Declaration of conformity RK 660 FT / 7113609 , 0.12MB , pdfRoHS Declaration of conformity RK 660 FT / 7113609 , 0.13MB , pdfMounting instructions Mounting instructions Screw-on cable tray systems , 9.41MB , pdfMounting instructions General information on the mounting , 2.65MB , pdf
