Cutting ring Pg 11 |
morepic-1 morepic-2

Cutting ring

Item no. 2029111 | EAN 4012195167112

Product description
Product description

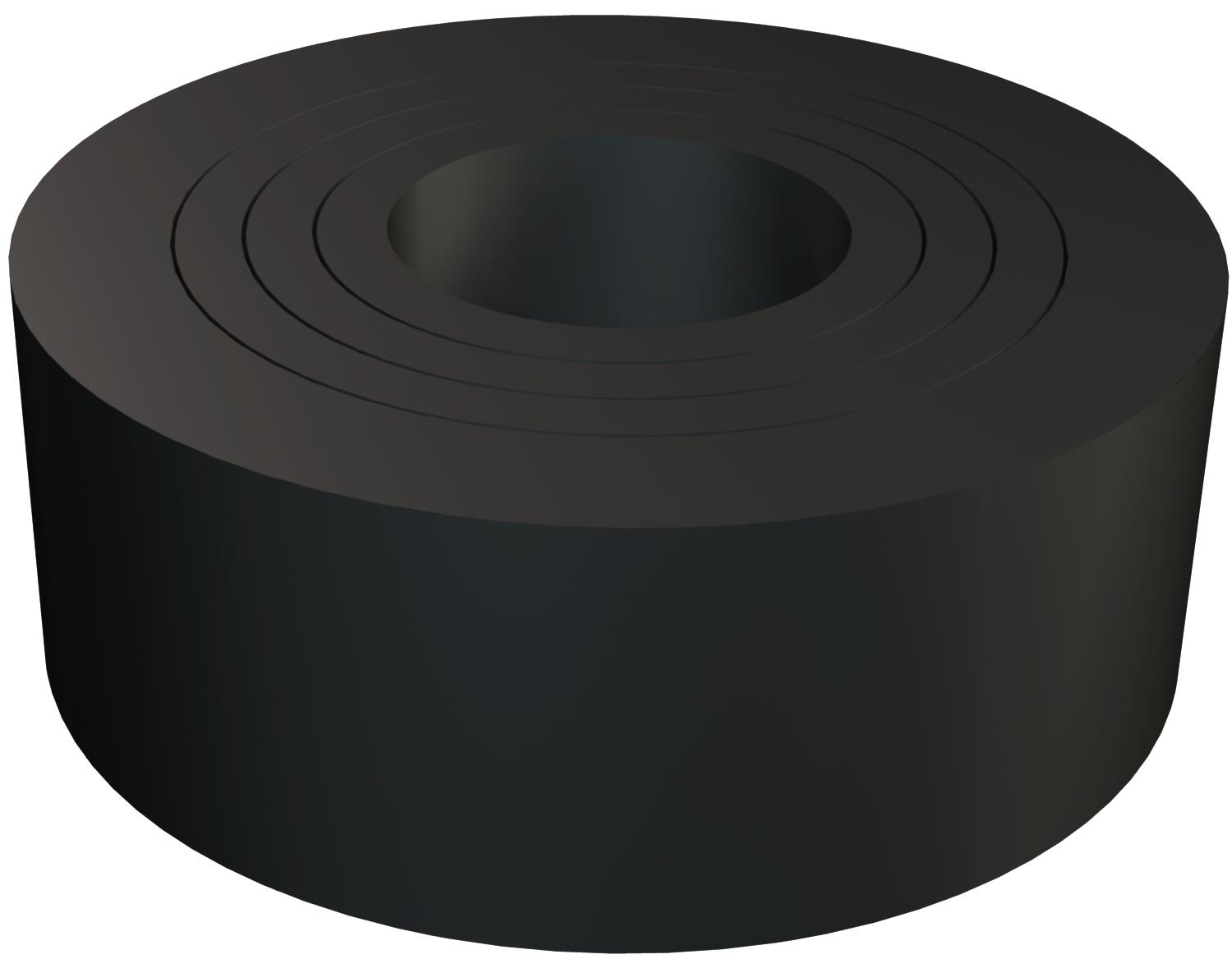

Rubber cutting ring (cuttable sealing ring) to DIN 46320 for cone cable gland.
  • Thread Pg
  • CO₂ footprint (PCF)
  • Packaging without plastic
  • Packaging made entirely from recycled cardboard
Technical data

Technical data

CO2 Footprint (GWP) Cradle-to-Gate 0,0055 kg CO2e / 1 Piece
Colour Black

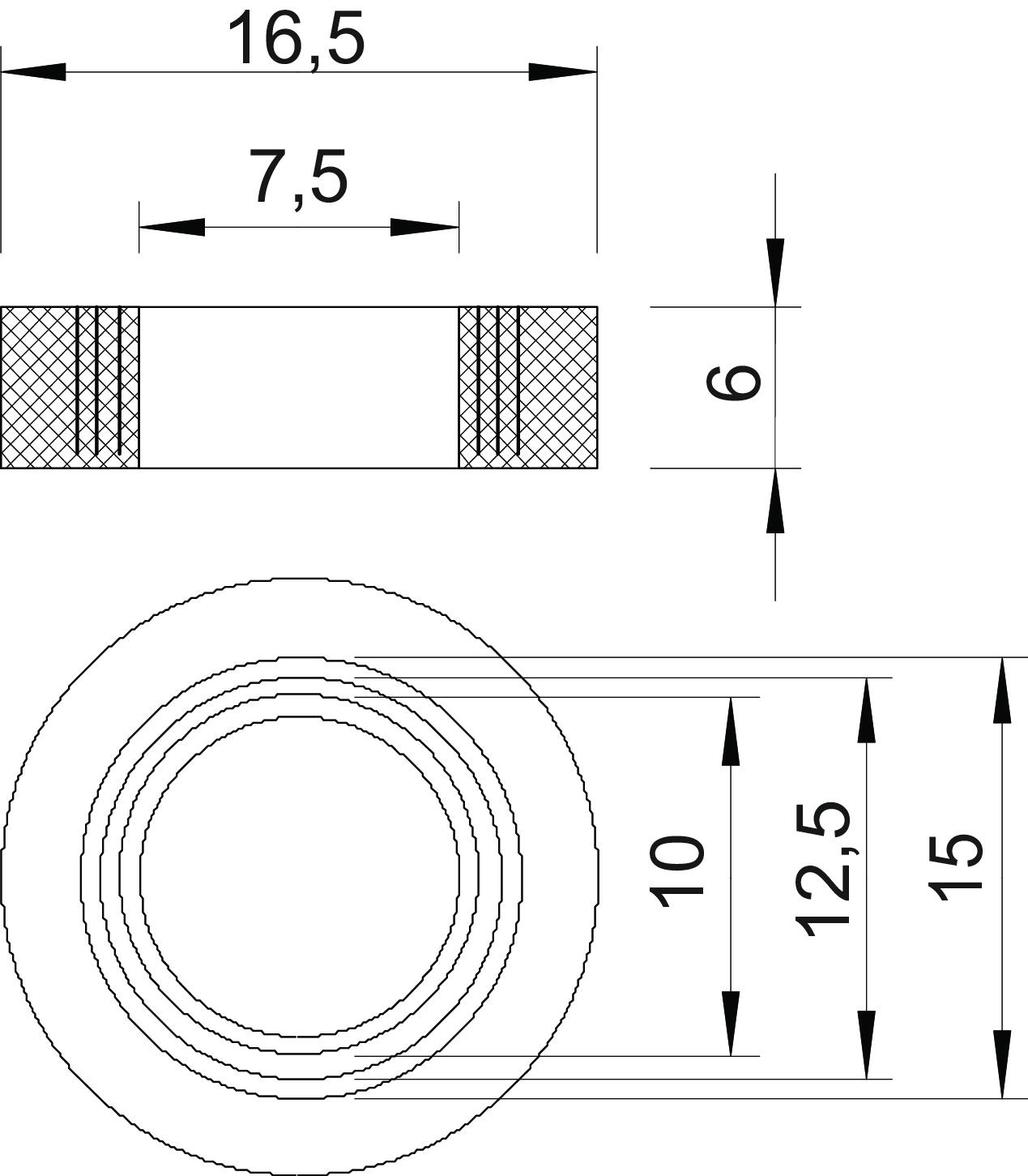

Dimension PG11
Dimension D1 7,5 mm
Dimension D2 16,5 mm
Dimension D3 10 mm
Dimension D4 12,5 mm
Dimension D5 15 mm
Dimension H 6 mm
Material Rubber mixture
Sealing area D, max. 12,5 mm
Sealing area D, min. 7,5 mm
Size Pg 11
All types

All types

Types Size Size Item no. Quantity SSU
107 B PG9 Pg 9 M16 2029103
100 piece
107 B PG11 Pg 11 - 2029111
100 piece
107 B PG13.5 Pg 13,5 M20 2029138
100 piece
107 B PG16 Pg 16 M25 2029162
100 piece
107 B PG21 Pg 21 - 2029219
100 piece
107 B PG29 Pg 29 M32 2029294
100 piece
107 B PG36 Pg 36 M40 2029367
50 piece
107 B PG42 Pg 42 M50 2029421
50 piece
107 B PG48 Pg 48 M63 2029480
50 piece
