Dolü branch terminals, open on one side
Item no. 2055201 | EAN 4012195183853
- Product description
-
Product description

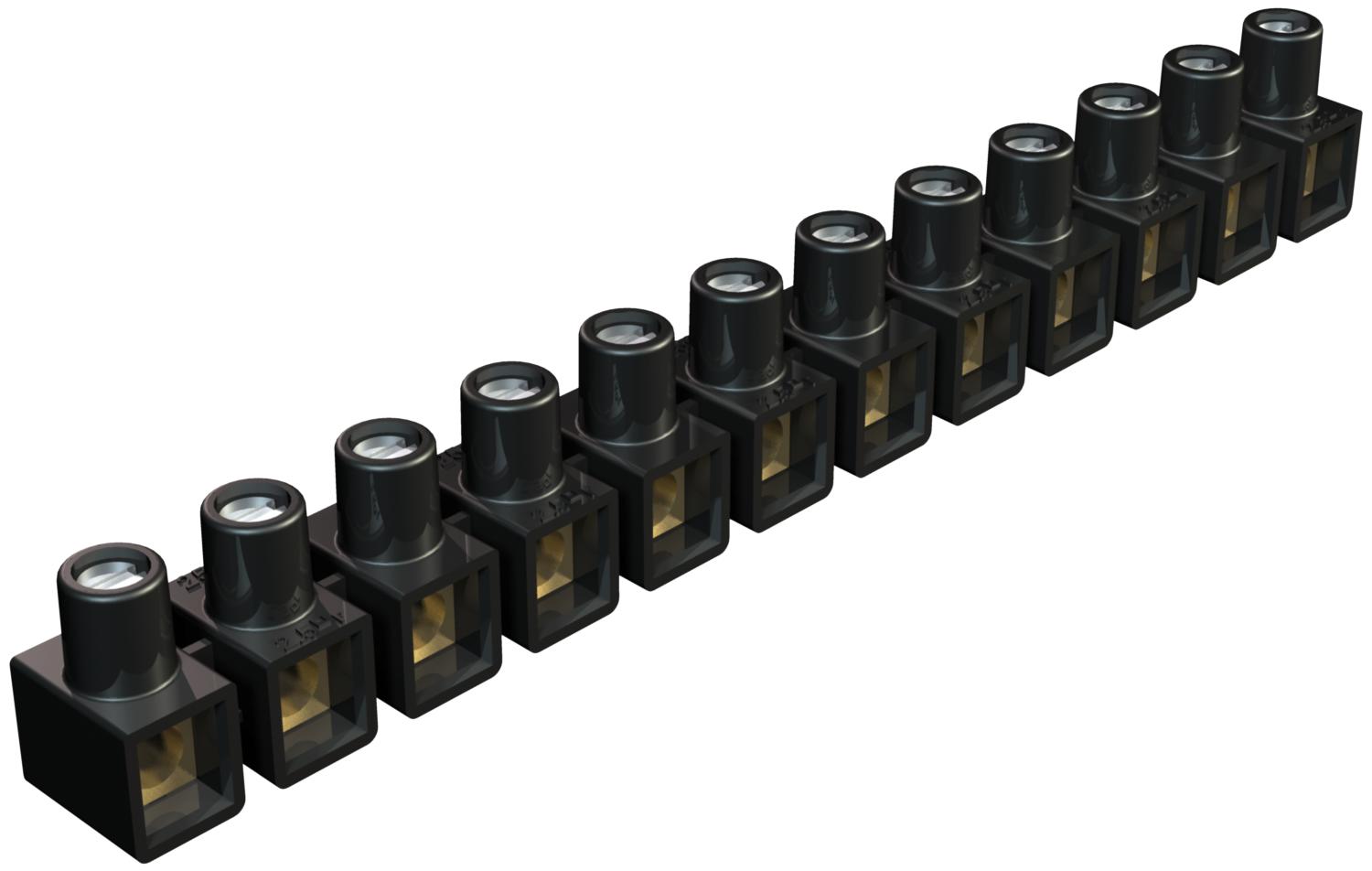

Terminals made of brass, screws of steel, galvanised and transparently passivated, 12-pole, strip separable into individual terminals, only open on one side.
Closed on one side, captive upwards screw.
Nominal cross-section 2.5 ÷ mm².
Nominal voltage 250 V.
Nominal current 24 A.
Max. connectable cross-sections per terminal: 4 x 2.5 mm², 5 x 1.5 mm² or 6 x 1 mm².

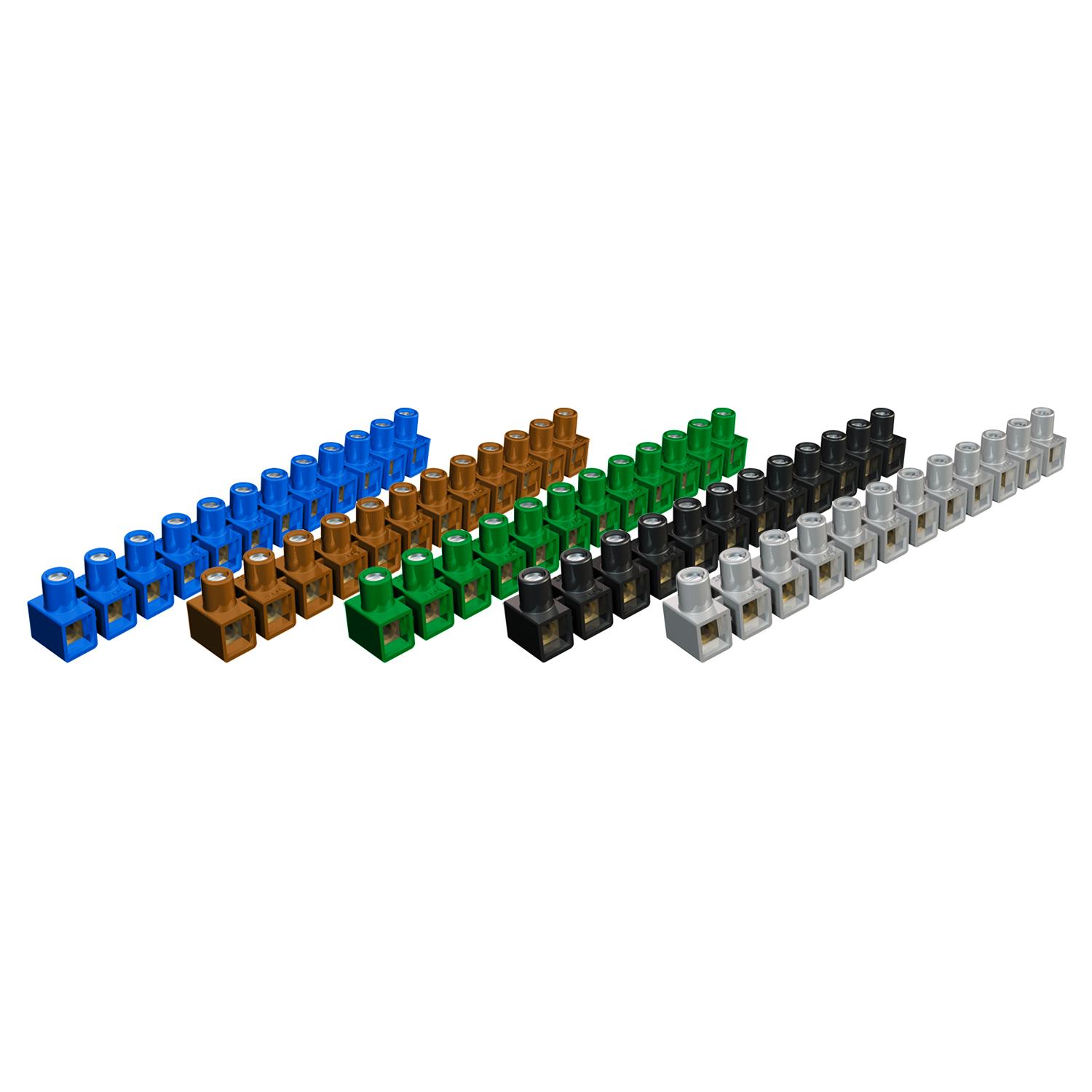

Delivery sorted by colour: 3 black, 2 blue, 3 yellow-green, 1 brown and 1 grey strip in each packaging unit.
-
- Technical data
-
Technical data
Closing plate required no Colour (sorted) Connectable conductor cross-section, single-wire, max. 2,5 mm² Connectable conductor cross-section, single-wire, min. 1 mm² Connection position Side Cross-section Max. connectable cross-sections per terminal: 4 x 2.5 mm², 5 x 1.5 mm² or 6 x 1 mm² mm² Dimension 2,5mm² Drill hole spacing, centre 11 mm Explosion-tested version no Halogen-free yes Insulation material Thermoplast Material Polyamide No. of terminals 12 Nominal cross-section, min. 2,5 mm² Nominal current 24 A Nominal voltage 250 V Number of screwless terminals per pole 1 Pole number 12 Suitable for flexible conductors yes Suitable for multi-wire conductors yes Suitable for solid conductors no Transparent no Version of electrical connection 1 Screw connection Dimensions

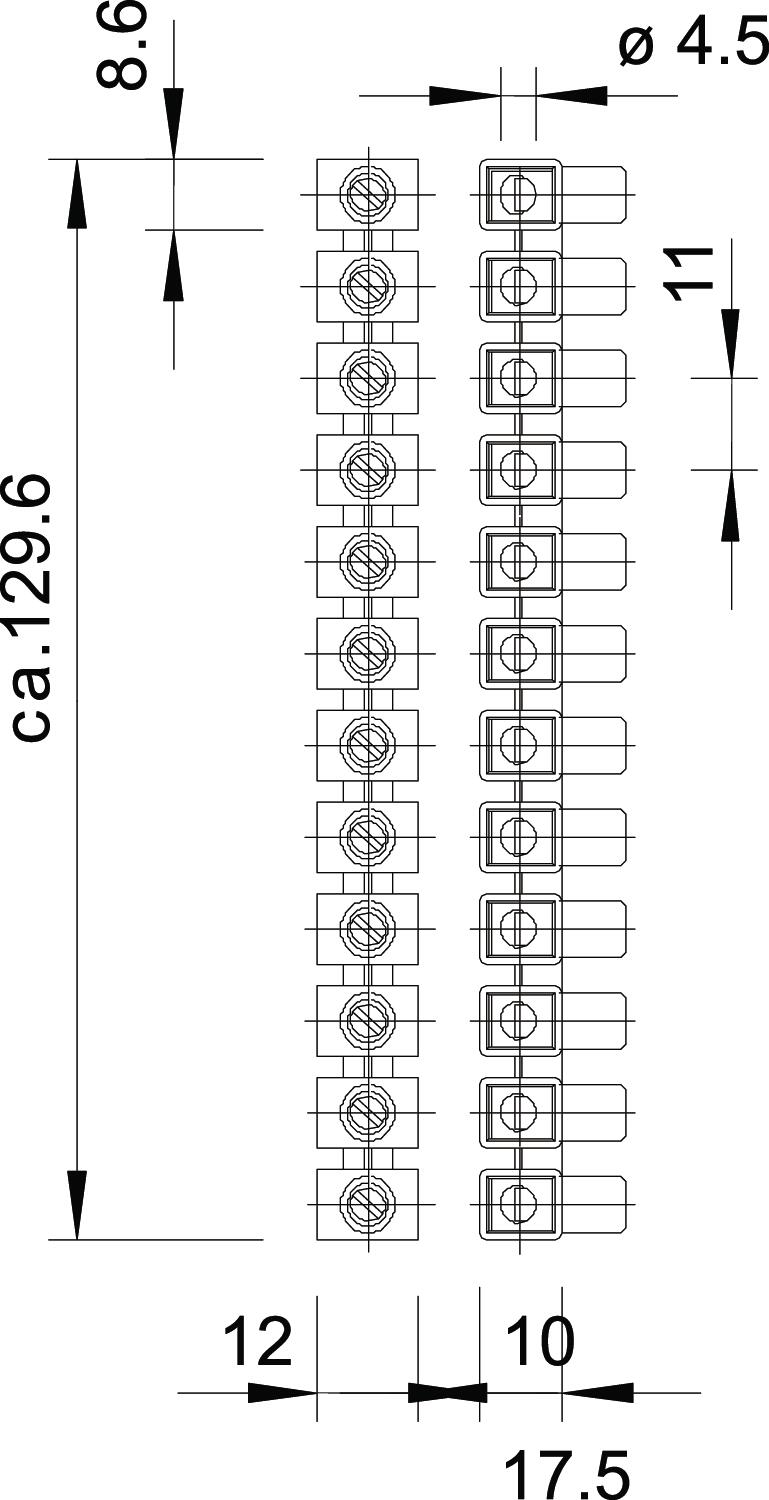

Height 17,5 mm Length 129,6 mm Width 12 mm - All types
- Downloads
-
Data sheet 70 S / 2055201 , 0.50MB , pdfDeclaration of conformity 70 S / 2055201 , 0.05MB , pdf
