Doubler for PYROLINE® Con fire protection duct

Item no. / Types

Dimension A

Dimension D

Product description

Product description

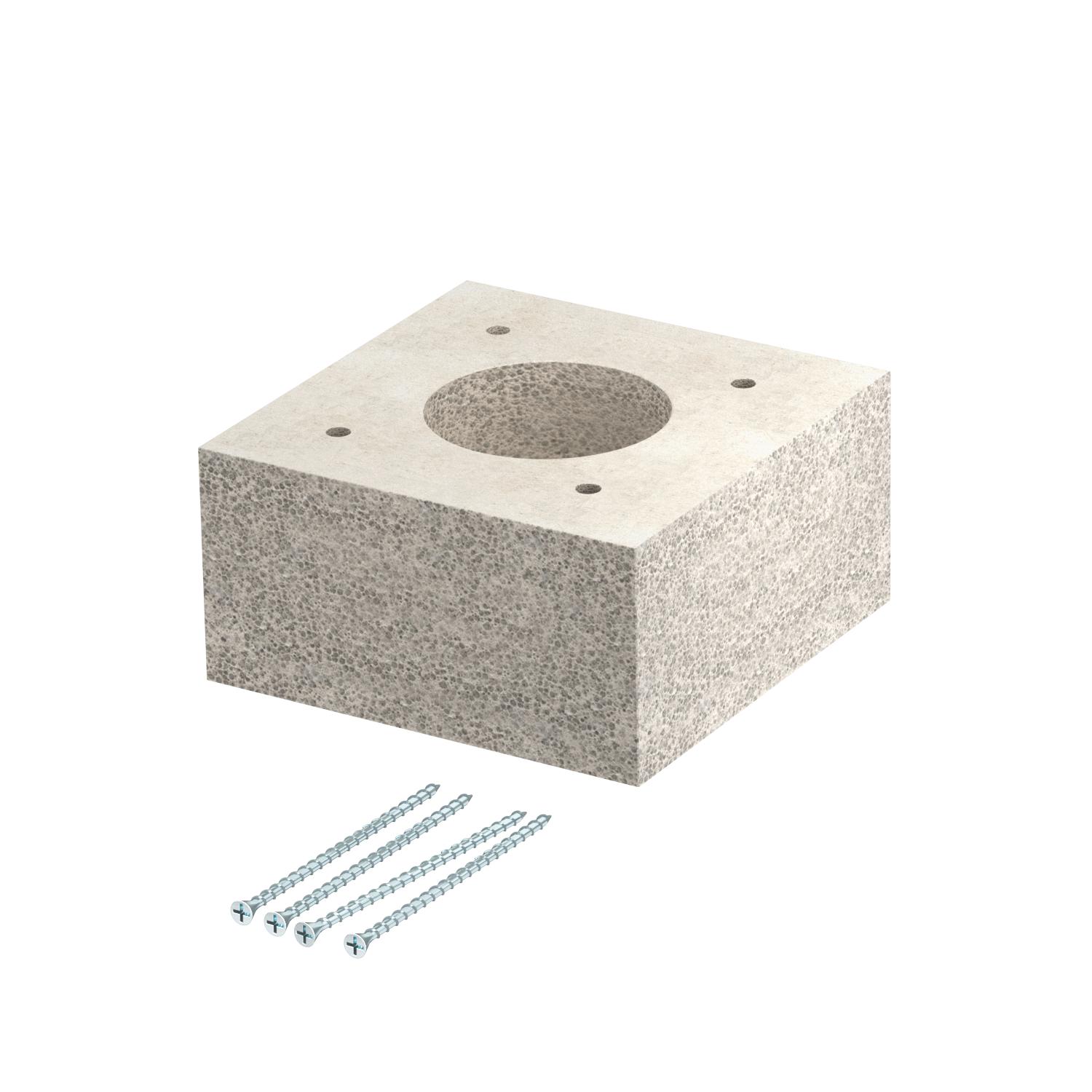

Doubler for running individual cables and cable bundles out of the side wall of the PYROLINE® Con D and PYROLINE® Con S fire protection duct.

Technical data

Material	Fibreglass lightweight concrete
Type of accessory	Miscellaneous

Length	80 mm
Width	80 mm

All types

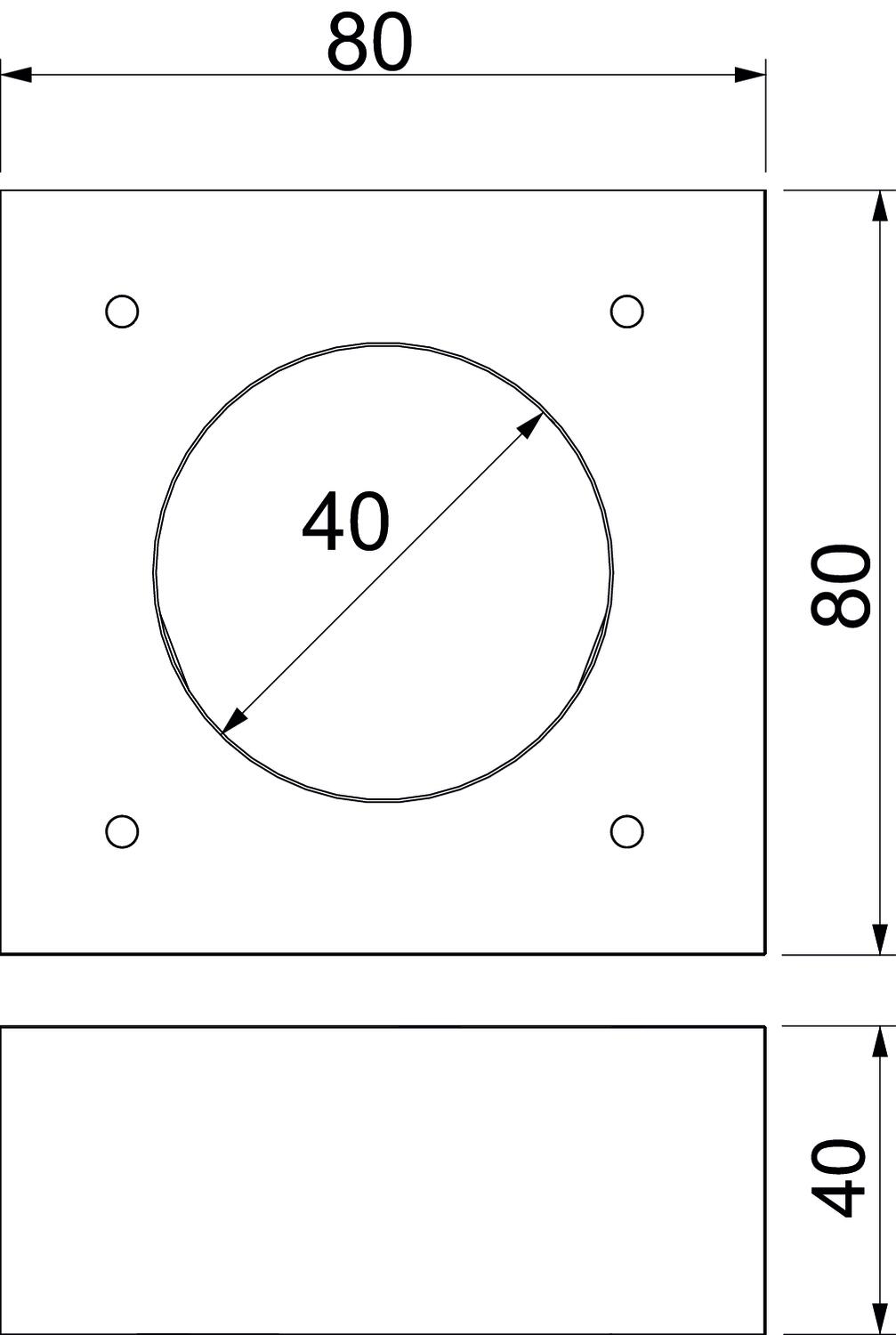

Types	Dimension A	Dimension D	Item no.	Quantity	SSU
KAD-10040	100 mm	60 mm	7215462	piece	1 piece
KAD-8040	80 mm	40 mm	7215464	piece	1 piece

Accessories

Products	Types	Item no.	Quantity	SSU
Insulation layer creator in a cartridge	DSX-K	7202300	piece	1 piece
Fire protection duct mortar	KTM	7215500	piece	1 piece
