- Product description
-
Product description

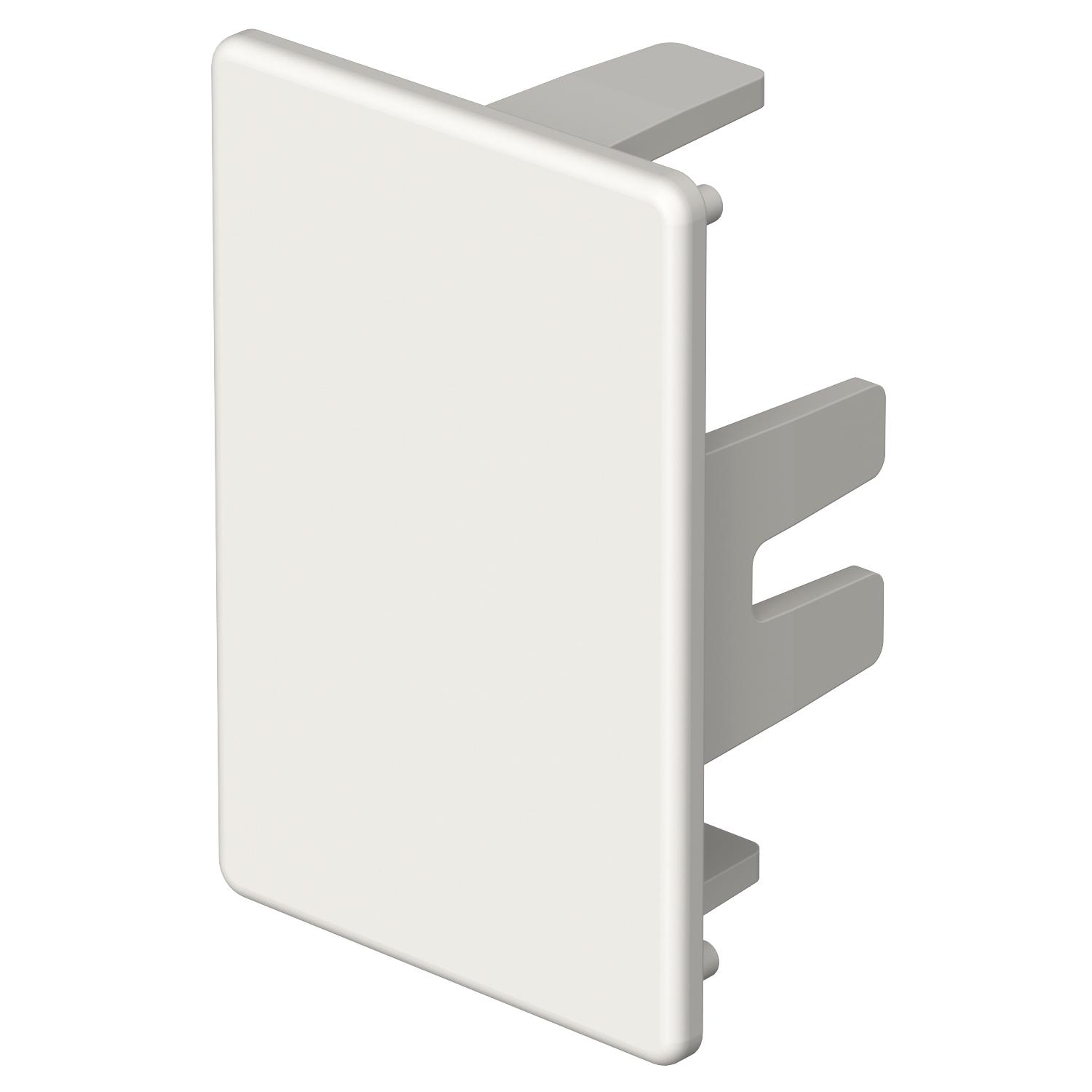

End piece for closing the WDK-H trunking.
- Technical data
-
Technical data
Antibacterial treatment no Colour Pure white; RAL 9010 Dimension 30x45mm Dimension a 45 mm Dimension b 30 mm Fastening type Lockable Halogen-free yes Height 30 mm Length 17 mm Maintain electrical functions no Material Polycarbonate/Acrylnitrile-butadiene-styrene Permitted temperature range, max. 90 °C Permitted temperature range, min. -5 °C Protection rating IP30 Protection rating IK code IK07. Protective film no Version for Left/right Width 45 mm - All types
- Downloads
-
Data sheet WDKH-E30045RW / 6175554 , 0.16MB , pdfCatalogue Cable routing systems , 17.62MB , pdfDeclaration of conformity WDKH-E30045RW / 6175554 , 0.13MB , pdfUK Declaration of Conformity WDKH-E30045RW / 6175554 , 0.14MB , pdfREACH Declaration of conformity WDKH-E30045RW / 6175554 , 0.27MB , pdfRoHS Declaration of conformity WDKH-E30045RW / 6175554 , 0.28MB , pdfMounting instructions Leitungsführungskanal WDK , 6.19MB , pdf
