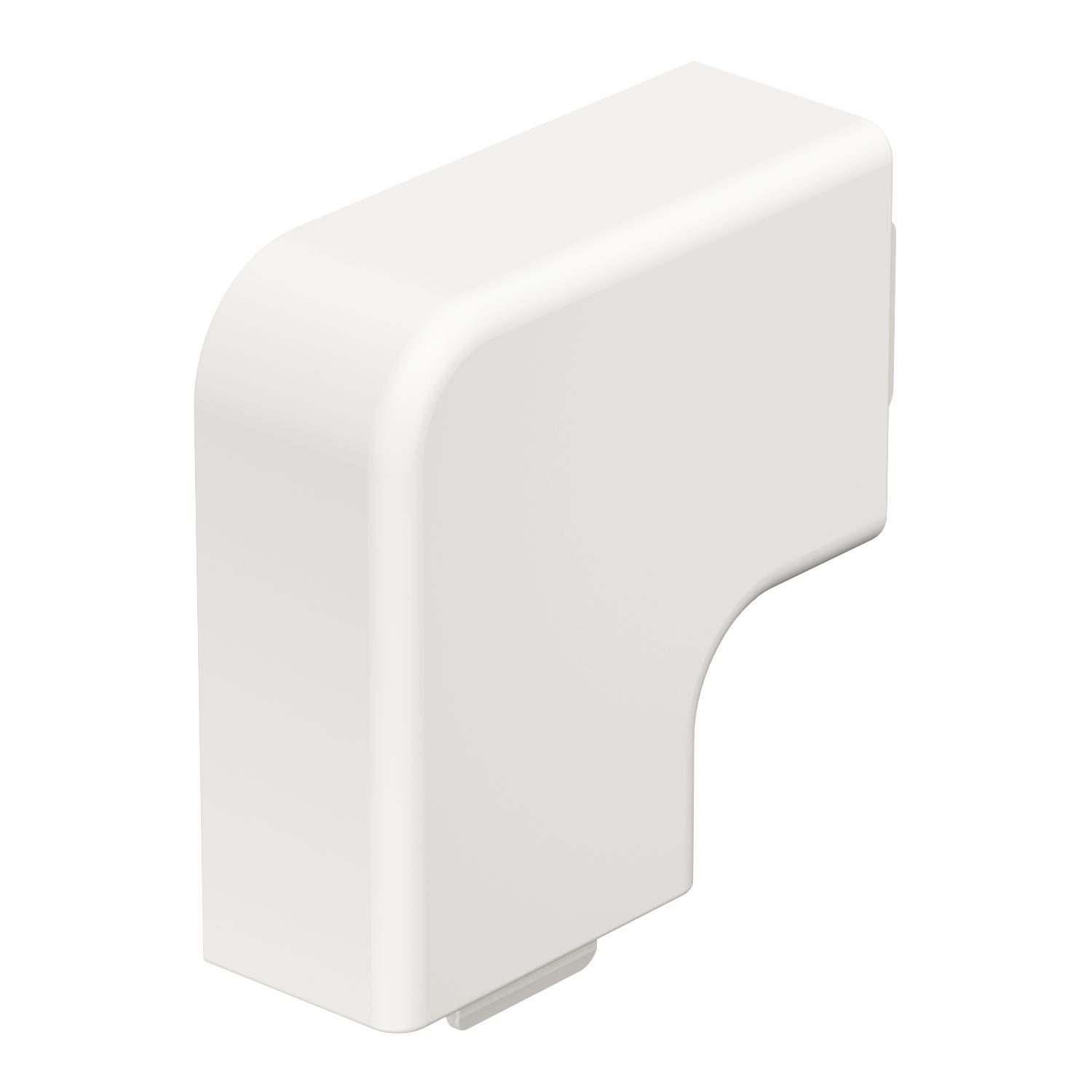

Flat angle cover, trunking type WDKH 15030

Item no. 6175654 | EAN 4012195934158

6175654 / WDKH-F15030RW
Pure white; RAL 9010
Product description

Product description

Flat angle hood for changing the direction of the halogen-free WDKH trunking.
  • Verband der Elektrotechnik, Elektronik, Informationstechnik e.V., Germany
  • Halogen-free; without chlorine, fluorine and bromine
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • UKCA declaration of conformity
Technical data

Technical data

Angle range, max. 90 mm
Angle range, min. 90 mm
Antibacterial treatment no
Colour Pure white; RAL 9010
Dimension 15x30mm
Dimension a 53 mm
Fastening type Lockable
for duct dimension 15 x 30
Halogen-free yes
Height 17,5 mm
Length 53 mm
Maintain electrical functions no
Material Polycarbonate/Acrylnitrile-butadiene-styrene
Permitted temperature range, max. 90 °C
Permitted temperature range, min. -5 °C
Protection rating IP30
Protection rating IK code IK07.
Protective film no
Self-extinguishing yes
Trunking depth 15 mm
Version for Hood fitting
Width 30 mm
All types

All types

Types Colour Item no. Quantity SSU
WDKH-F15030RW Pure white; RAL 9010 6175654
4 piece
