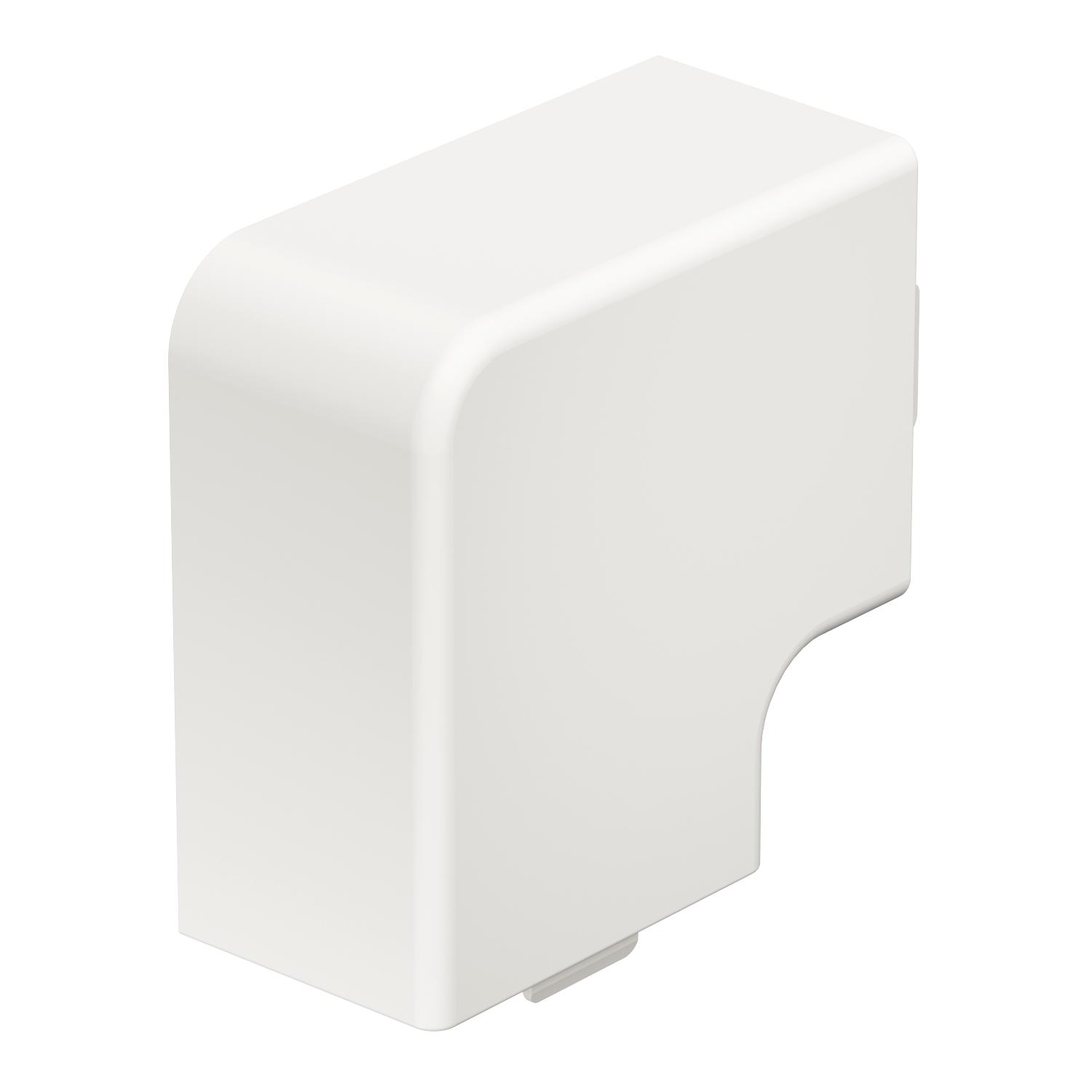

Flat angle cover, trunking type WDKH 30045
Item no. 6175662 | EAN 4012195814115
- Product description
-
Product description
Flat angle hood for changing the direction of the halogen-free WDKH trunking.
-
- Technical data
-
Technical data
Angle range, max. 90 mm Angle range, min. 90 mm Antibacterial treatment no Colour Pure white; RAL 9010 Dimension 30x45mm Dimension a 60 mm Duct height, min. 45 mm Fastening type Lockable for duct dimension 30 x 45 Halogen-free yes Height 30 mm Length 68 mm Maintain electrical functions no Material Polycarbonate/Acrylnitrile-butadiene-styrene Permitted temperature range, max. 90 °C Permitted temperature range, min. -5 °C Protection rating IP30 Protection rating IK code IK07. Protective film no Self-extinguishing yes Trunking depth 30 mm Version for Hood fitting Width 45 mm - All types
