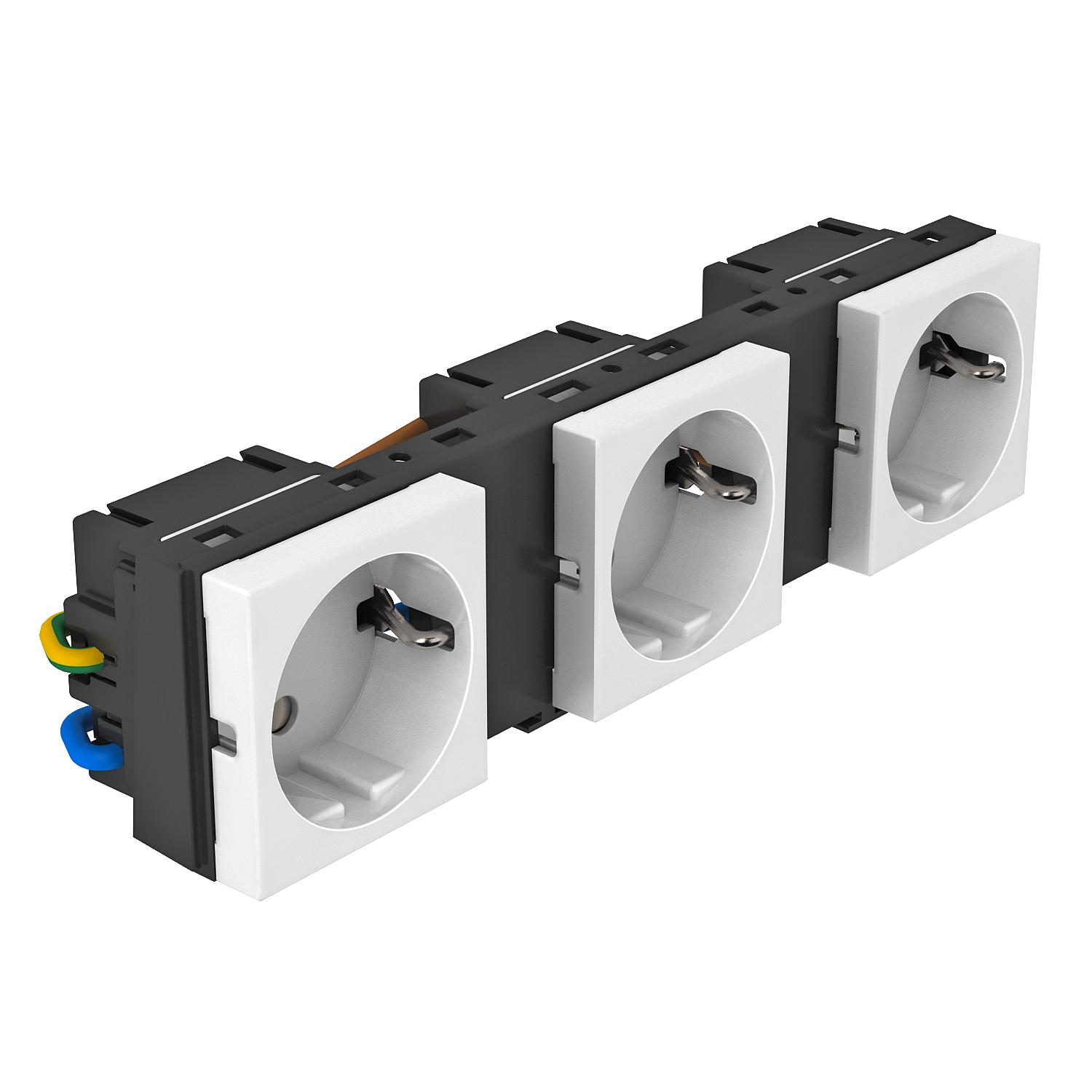

Installation frame for MT45V, terminated with protective contact socket
Item no. 7408697 | EAN 4012195763000
- Product description
-
Product description
Terminated installation frame with three single sockets, type VDE, for installation in MT45V module supports.
-
- Technical data
-
Technical data
Accessory mounting type Lock Colour Graphite black; RAL 9011 Floor plate no Material Polyamide Seal installation option no Strain relief option yes Suitable for cavity floor installation yes Suitable for raised floor installation yes Suitable for screed-covered underfloor ducts yes Suitable for screed-flush closed underfloor ducts yes Suitable for underfloor ducts yes - All types
- Downloads
-
Data sheet MT45V 3 3WS V / 7408697 , 0.22MB , pdfLabel approval VDE symbol approval, GES , 0.12MB , pdfNo invitation to tender text is available for this product.
