KVS-4 connection set
Item no. 7215389 | EAN 4012195077916
- Product description
-

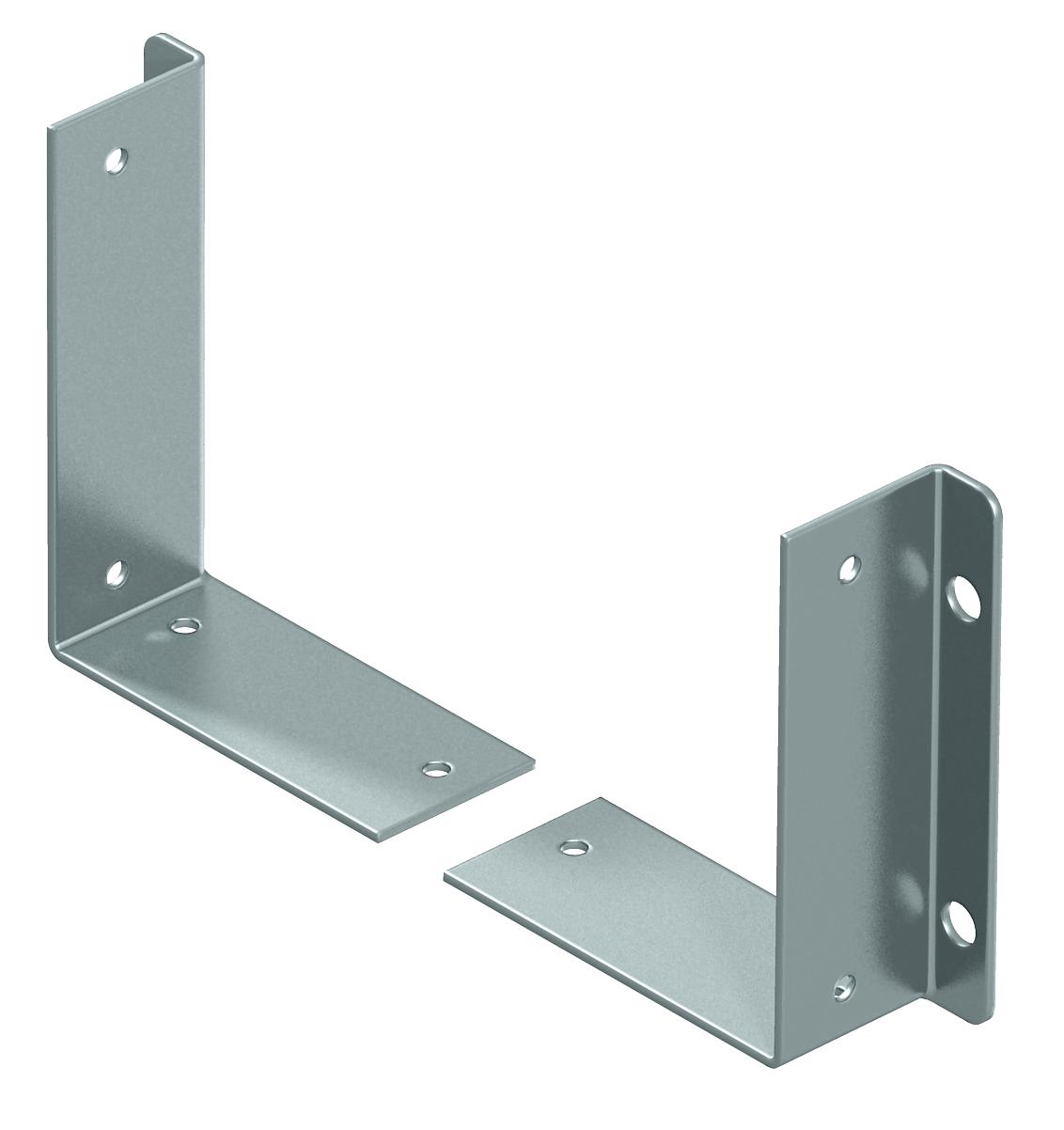

Product descriptionConnection set as spare part for the PYROLINE® Con S fire protection duct, type BSKH09-K1021, type PLCS D061220 and type PLCS D091220, along with the matching fittings, consisting of one connection plate on the left and one on the right.
-
- Technical data
-
Technical data

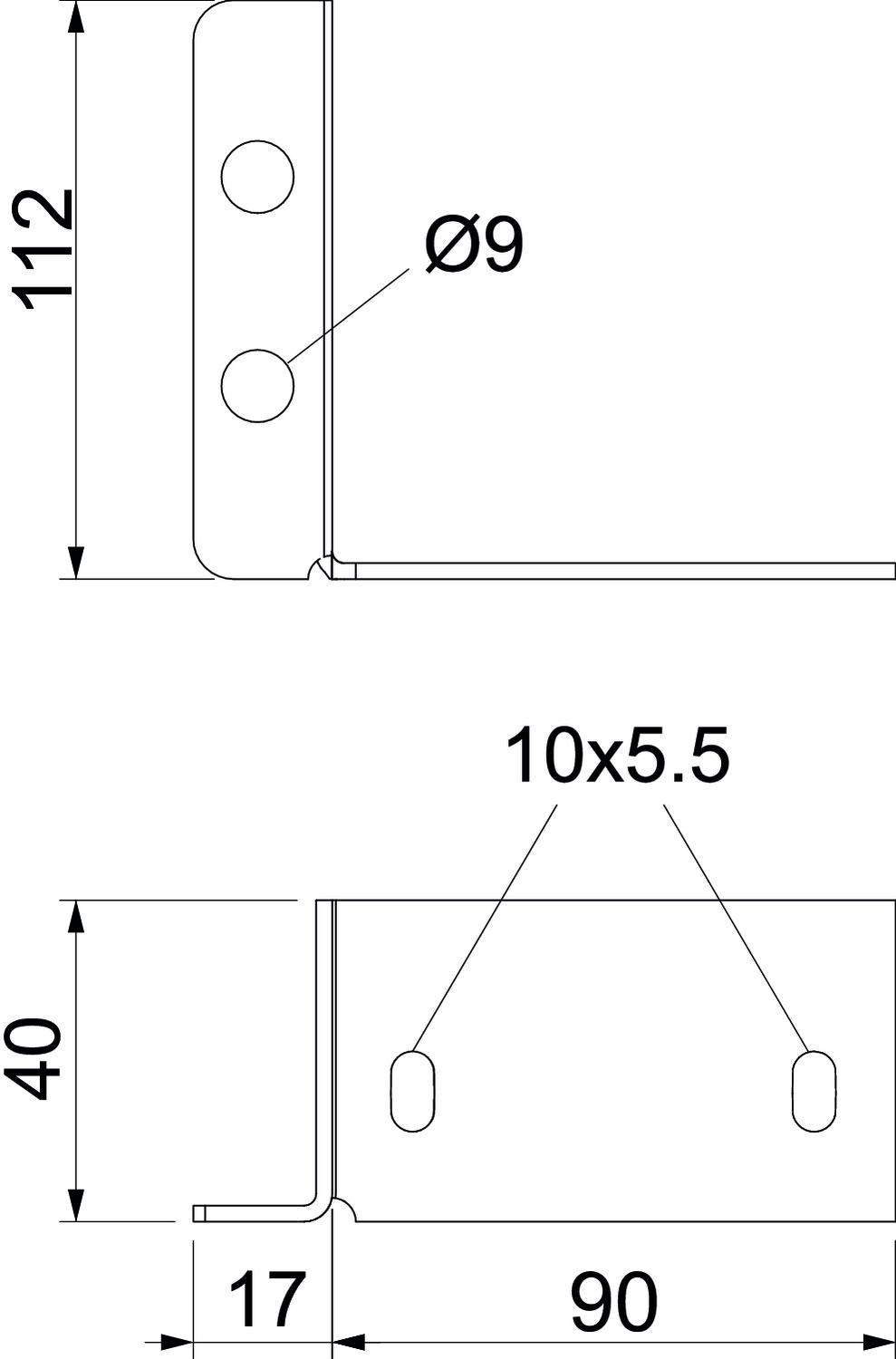

Colour zinc Dimension 112x90x40 Dimension B 90 mm Dimension H 112 mm Height 112 mm Material Steel Suitable for outdoor use no Surface Strip galvanized Type of accessory Miscellaneous Width 90 mm - All types
- Downloads
-
Data sheet KVS-4 / 7215389 , 0.23MB , pdfCatalogue Fire protection ducts , 8.99MB , pdfMounting instructions Mounting instructions, PYROLINE® Con BSK fire protection duct , 15.07MB , pdfMounting instructions Mounting instructions, PYROLINE® PLC fire protection duct , 14.60MB , pdfNo invitation to tender text is available for this product.
