MMS-plus I 7.5x40 internal thread tie, with combination thread sleeve 7,5x40 | 33.5 | 6 | 13

morepic-1

morepic-2

MMS-plus I 7.5x40 internal thread tie, with combination thread sleeve

Item no. 3498266 | EAN 4012196710881

Item no. / Types

Dimension

Anchor length

Drill hole diameter, min.	6 mm

WAF	13

Product description

Product description

Bolt tie for direct mounting without additional anchors in cracked and uncracked concrete and masonry. With M8/M10 combination thread sleeve for fastening threaded rods.

Construction product tested according to EAD and CE mark, with European Technical Assessment (ETA) and proof of suitability. Load-bearing capacities under fire loads proven up to fire resistance class R120.

Technical data

Technical data

Anchor length	33,5 mm
Dimension	7,5x40
Dimension	7,5x40
Drill hole diameter, min.	6 mm
Head shape	Hexagonal

Material	Steel
Screw system	Hexagonal
Surface	Electrogalvanized
WAF	13

Dimensions

Dimension L	40 mm

Length	40 mm

All types

All types

Types	Dimension	Anchor length	Drill hole diameter, min.	WAF	Item no.	Quantity	SSU
MMS+ I 7.5x40	7,5x40	33.5 mm	6 mm	13	3498266	piece	40 piece
MMS+ I 7.5x60	7,5x60	53.5 mm	6 mm	13	3498268	piece	40 piece

Downloads

Data sheet MMS+ I 7.5x40 / 3498266 , 0.16MB , pdf

Guide Fire protection in electrical engineering – A guide to fireproof building installations , 2.10MB , pdf

Brochure Brochure The Experts , 2.10MB , pdf

Brochure Zwischendeckeninstallationen , 2.70MB , pdf

Catalogue Schutzinstallation Brandgeprüfte Verlegesysteme , 19.95MB , pdf

REACH Declaration of conformity MMS+ I 7.5x40 / 3498266 , 0.12MB , pdf

Download

RoHS Declaration of conformity MMS+ I 7.5x40 / 3498266 , 0.12MB , pdf

Download

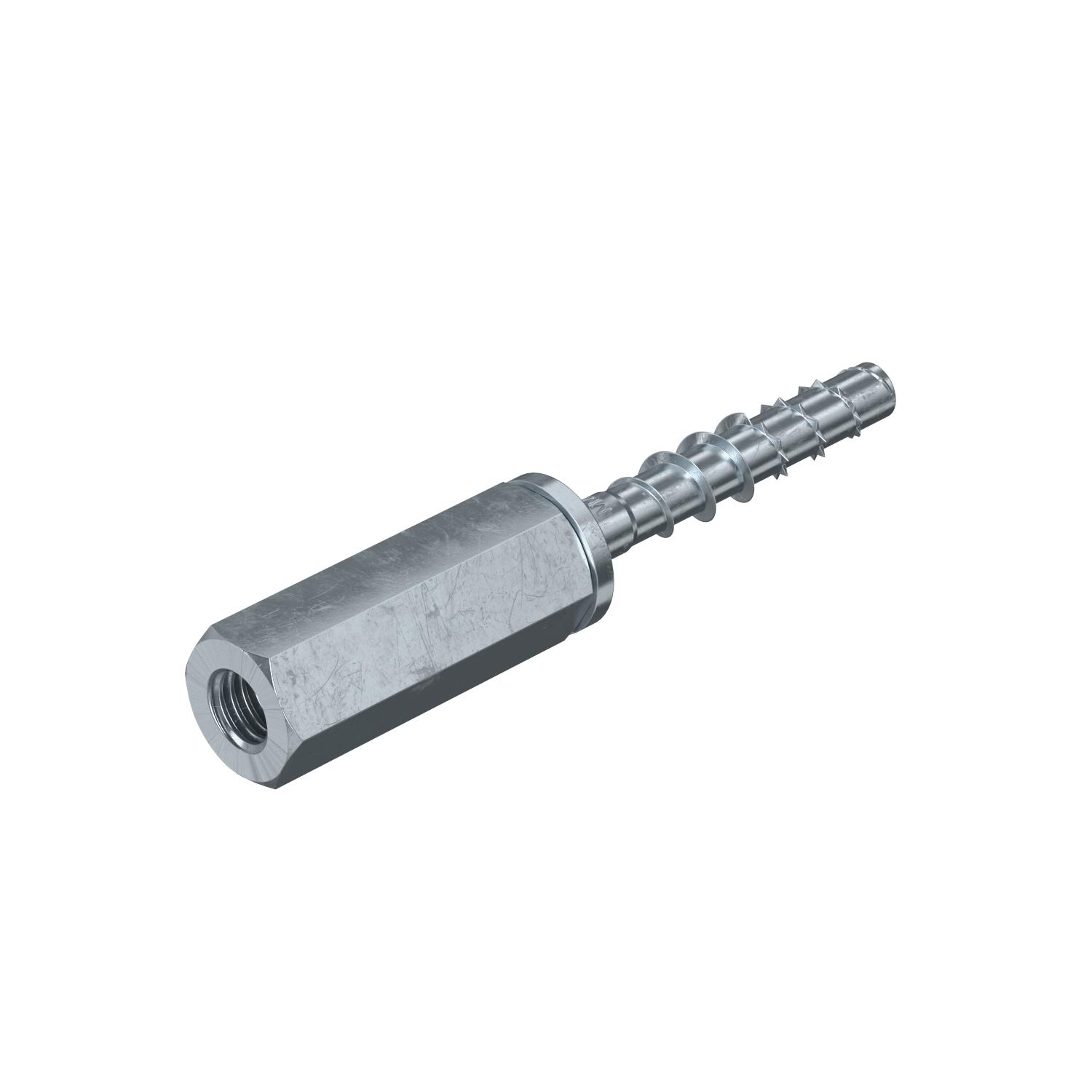

Product graphic MMS+ I 7.5x40 / 3498266, 49.52 kB, jpg

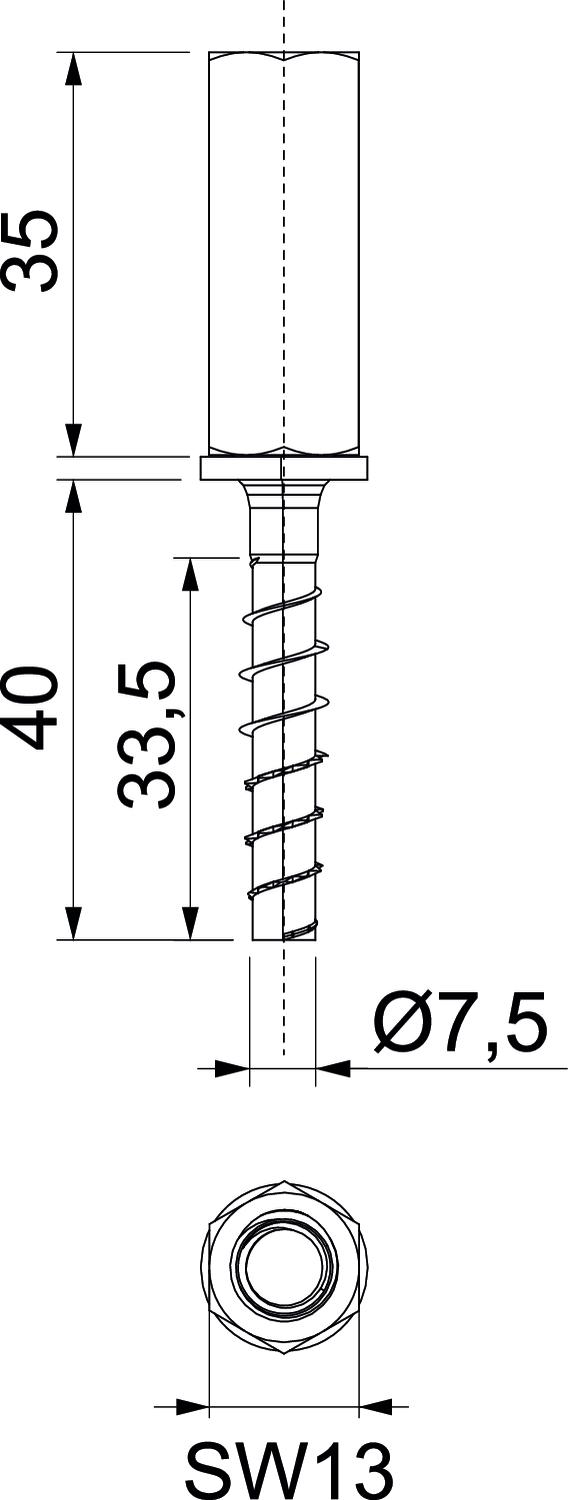

Scale drawing MMS+ I 7.5x40 / 3498266, 50.09 kB, jpg

No invitation to tender text is available for this product.
