Mounting plate for FireBox T series, front side 300 | 182 | |

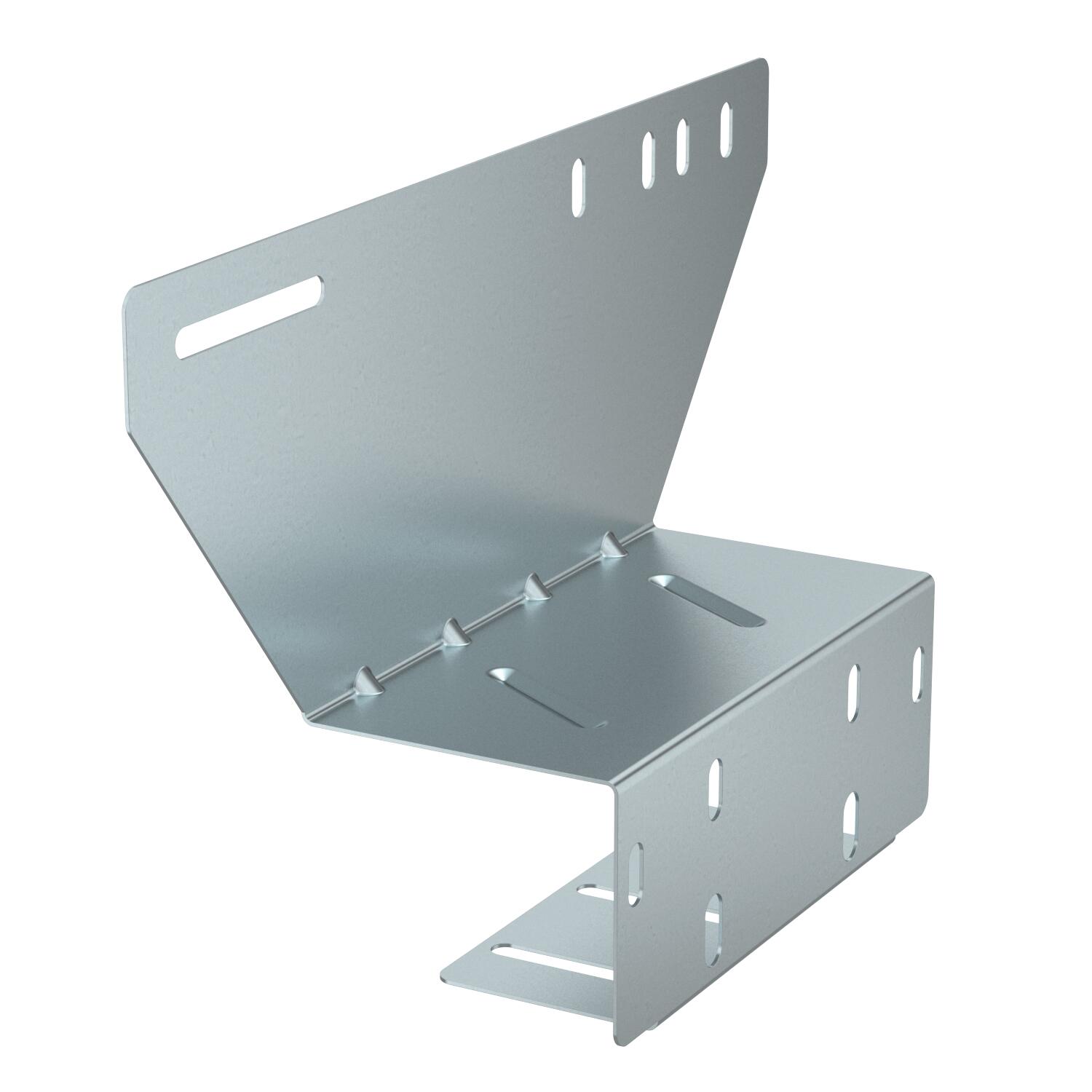

Mounting plate for FireBox T series, front side

Item no. 7205790 | EAN 4012196842223

Item no. / Types

Width

Height

Dimension x

Dimension y

Product description

Product description

Universal mounting plate to fasten the FireBox T series to the front side of cable trays and mesh cable trays as well as cable ladders of max. 60 mm side height. Enables the secure mounting of cables that maintain electrical functionality, without having to bend it over the side rail. Suitable for all FireBoxes.

Technical data

Technical data

Fastening type	Screw fastening
Material	Steel
Rustproof steel, pickled	no

Surface	Strip galvanised zinc/aluminium, Double Dip
Version for	Horizontal

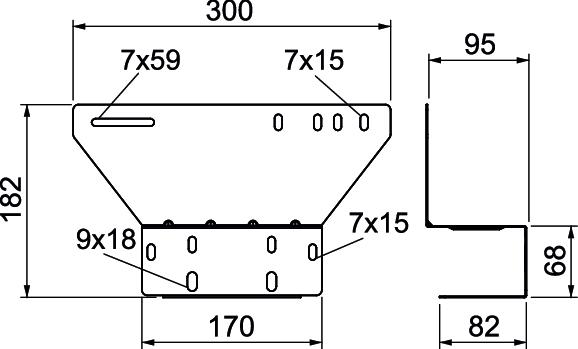

Dimensions

Height	182 mm

Width	300 mm

All types

All types

Types	Width	Height	Dimension x	Dimension y	Item no.	Quantity	SSU
MP T616	220 mm	159 mm	63 mm	165 mm	7205484	piece	1 piece
MP-T6-F	300 mm	182 mm	-	-	7205790	piece	1 piece
MP-T6-B	300 mm	175 mm	-	-	7205792	piece	1 piece

Accessories

Mounting accessories

Products	Types	Item no.	Quantity	SSU
Truss-head bolt with flange nut F	FRSB 6x12 F	6406122	piece	100 piece
Clamping piece LKS 40 FS	LKS 40 FS	6221076	piece	10 piece
Clamping piece G	GKS 34 G	6016855	piece	20 piece
